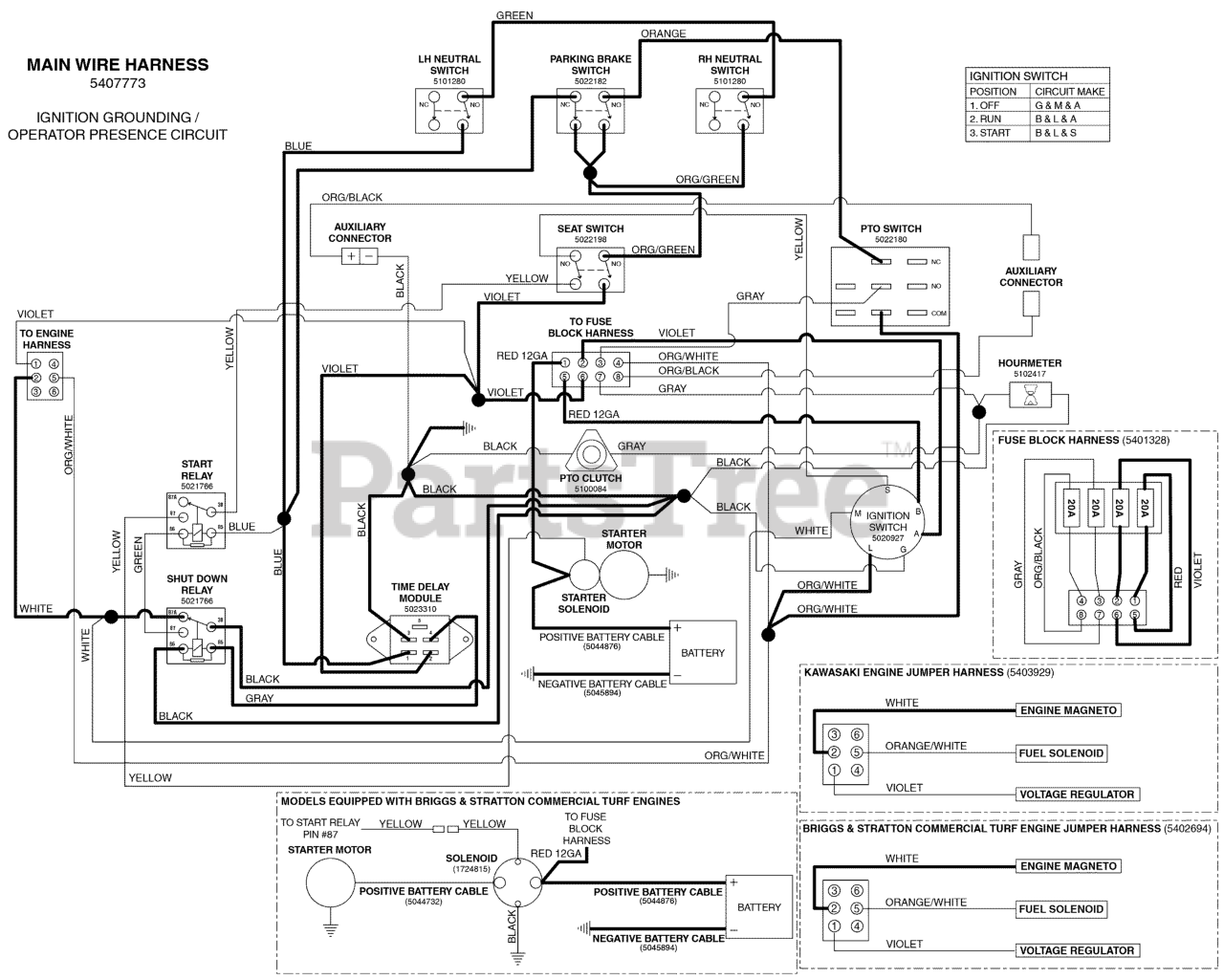

F 150XT (5901217) - Ferris F150XT Series 52" Zero-Turn Mower, 28hp Briggs & Stratton Electrical Schematic - Ignition Grounding Circuit / Operator Presence Parts Diagram

F150XT Series 52" Zero-Turn Mower, 28hp Briggs & Stratton
