F 150XT (5901217) - Ferris F150XT Series 52" Zero-Turn Mower, 28hp Briggs & Stratton Electrical Group - Briggs & Stratton Commercial Turf Parts Diagram

F150XT Series 52" Zero-Turn Mower, 28hp Briggs & Stratton

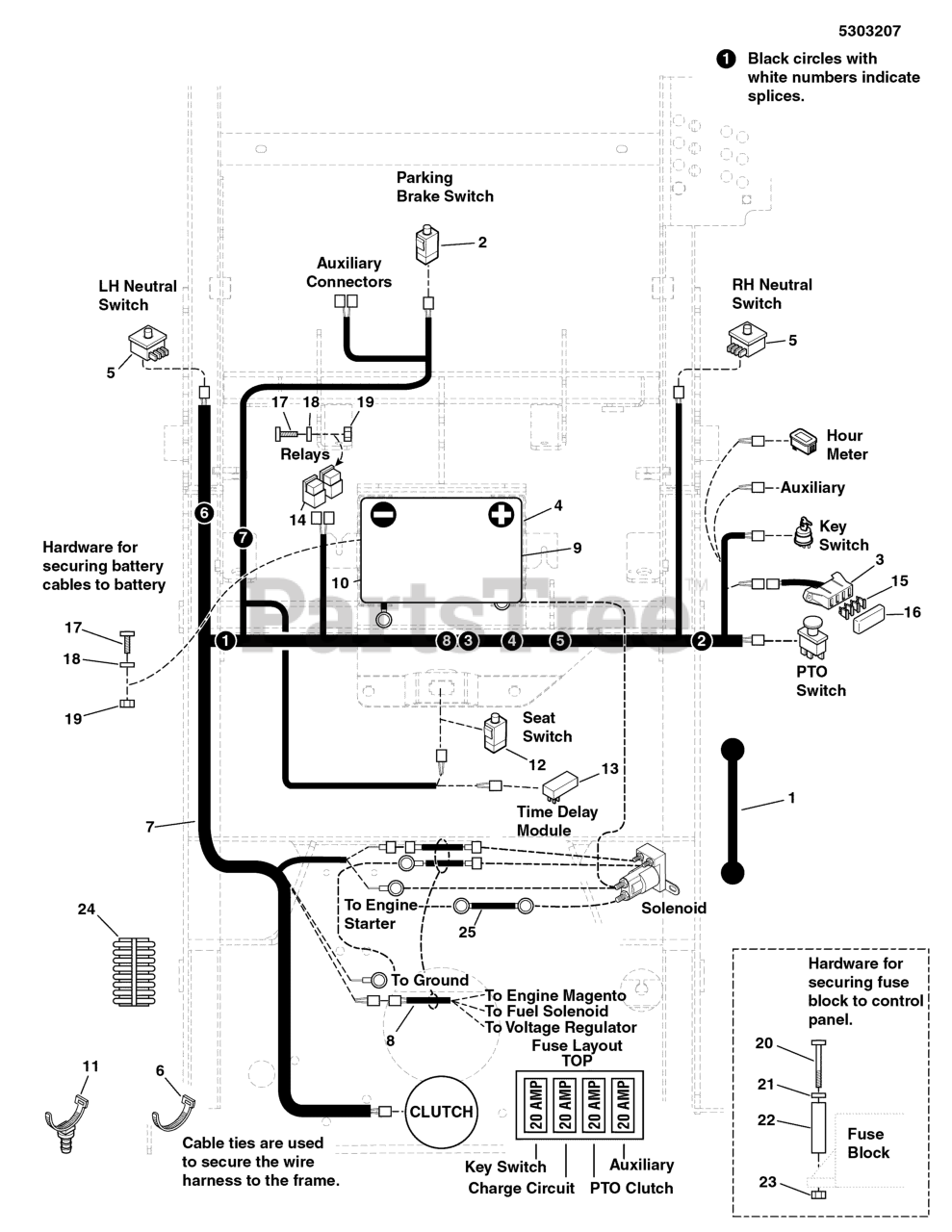

Electrical Group - Briggs & Stratton Commercial Turf Parts Diagram

  • Title

1

Ferris 1722009

STRAP-BLACK RUBB
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

2

Ferris 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

3

Ferris 5401328

WIRE HARNESS, FUSE BLOCK - IS2000
(Superseded to 5401328SM)

$73.99

$

In Stock, only 1 left!

0

4

BATTERY, CE, 12 VOLT 340 CCA - 11U1L

$

$

Not available

5

Ferris 5101280

SWITCH, LOW PROF, NC/NO
(Superseded to 5101280YP)

$30.99

$

In Stock, Qty 9

0

6

Ferris 5021029

CABLE TIE, 12
(Superseded to 5021029SM)

$

$

Not available

7

Ferris 5407773

WIRE HARNESS, MAIN, S150XT

$758.99

$

Usually ships in 2-12 days

0

8

Ferris 5402694

WIRE HARNESS, BRIGGS JUMPER

$71.99

$

Usually ships in 2-12 days

0

9

Ferris 5044876

BATTERY CABLE, POSITIVE, 35
(Superseded to 5044876SM)

$29.99

$

Usually ships in 2-12 days

0

10

Ferris 5045894

BATTERY CABLE, NEGATIVE, 35

$

$

Currently unavailable

11

Ferris 5101989

CABLE TIE FIR TREE MOUNT, WAYTEK 21374

$

$

Currently unavailable

12

Ferris 5022198

SWITCH, PLUNGER, NO/NO SNAP-IN
(Superseded to 5022198SM)

$15.99

$

In Stock, Qty 7

0

13

Ferris 5023310

MODULE, TIME DELAY
(Superseded to 5023310SM)

$114.99

$

Usually ships in 2-12 days

0

14

Ferris 5021766

RELAY, 12V, 40A
(Superseded to 5021766SM)

$24.99

$

Usually ships in 2-12 days

0

15

Ferris 5021603

FUSE, 20 AMP, ATO
(Superseded to 5021603SM)

$4.99

$

In Stock, only 2 left!

0

16

Ferris 5022805

COVER, VINYL FUSE BLOCK
(Superseded to 5022805SM)

$6.49

$

Usually ships in 2-12 days

0

17

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

18

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

19

Ferris 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

20

Ferris 5025270X16

SCREW, #10-24 X 2 ROUND PHILLIPS

$

$

Currently unavailable

21

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

22

Ferris 5023499

WASHER, #10 SAE
(Superseded to 5023499SM)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5061763

SPACER, .20 X .38 X 1.25
(Superseded to 5061763FS)

$5.99

$

Usually ships in 2-12 days

0

24

Ferris 5050927X15

WIRE LOOM, 3/8 ID X 15 IN

$

$

Currently unavailable

25

Ferris 5044732

BATTERY CABLE, POSITIVE, 8
(Superseded to 5044732YP)

$10.99

$

Usually ships in 2-12 days

0
