F 150XT (5900565) - Ferris F150XT Series 52" Zero-Turn Mower, 24hp Kawasaki 52" Mower Deck - Pulleys, Belt & Idler Arm Parts Diagram

F150XT Series 52" Zero-Turn Mower, 24hp Kawasaki

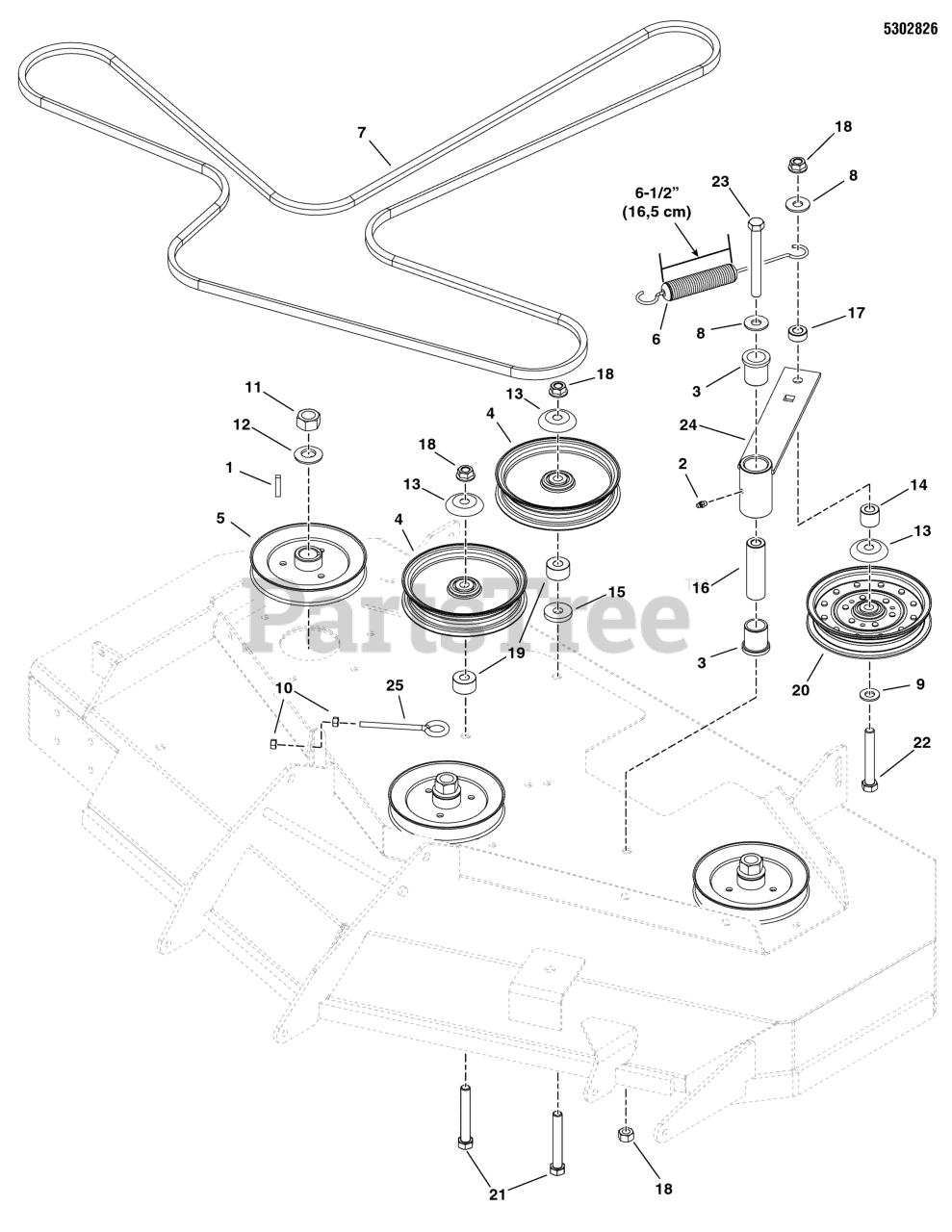

52" Mower Deck - Pulleys, Belt & Idler Arm Parts Diagram

  • Title

1

Ferris 5050407X10

KEY, 1/4 SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 3 left!

0

2

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

3

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 18

0

4

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

5

Ferris 5101351

PULLEY, 5.926 OVER BALL
(Superseded to 5101351YP)

$69.99

$

In Stock, Qty 9

0

6

Ferris 5023340

SPRING, EXTENSION, SWIVEL END
(Superseded to 5023340SM)

$36.99

$

In Stock, only 1 left!

0

7

Ferris 5103872

BELT, 5V, 163.40EL, LG ARAMID, WRPD, RC
(Superseded to 5103675)

$148.99

$

Usually ships in 2-12 days

0

8

Ferris 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

Usually ships in 2-12 days

0

9

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

10

Ferris 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

11

Ferris 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

12

Ferris 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

13

Ferris 5101103

SHIELD, PULLEY BEARING
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

14

Ferris 5044673

SPACER, .52 X 1.00 X .88
(Superseded to 5044673SM)

$8.99

$

In Stock, only 1 left!

0

15

Ferris 5044913

WASHER, .53 X 1.50 X .25
(Superseded to 5044913SM)

$6.99

$

In Stock, Qty 12

0

16

Ferris 5045022

SPACER, .52 X 1.00 X 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 2 left!

0

17

Ferris 5045023

SPACER, .52 X 1.00 X .44
(Superseded to 5045023SM)

$6.49

$

In Stock, only 1 left!

0

18

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

19

Ferris 5047142

SPACER, .52 X 1.25 X .70
(Superseded to 5047142SM)

$8.99

$

In Stock, Qty 8

0

20

USE 5104716 PULLEY + 5105145 SHIELD

$

$

Not available

21

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, Qty 11

0

22

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 2 left!

0

23

Ferris 5025017X36

BOLT, 1/2-13 X 4-1/2 GD5
(Superseded to 5025017X36SM)

$6.49

$

In Stock, only 1 left!

0

24

Ferris 5407343

ASSM, IDLER ARM
(Superseded to 5407343FS)

Note: (Includes Bushings & grease fittings.)

$113.99

$

Usually ships in 2-12 days

0

25

Ferris 5021812

EYE BOLT, 3/8-16 X 6, 3.0 THREAD
(Superseded to 5021812SM)

$5.99

$

In Stock, Qty 18

0
