F 125XT (5901334) - Ferris F125XT Series 52" Zero-Turn Mower, 25hp Briggs & Stratton Seat Mount & Floor Group Parts Diagram

F125XT Series 52" Zero-Turn Mower, 25hp Briggs & Stratton

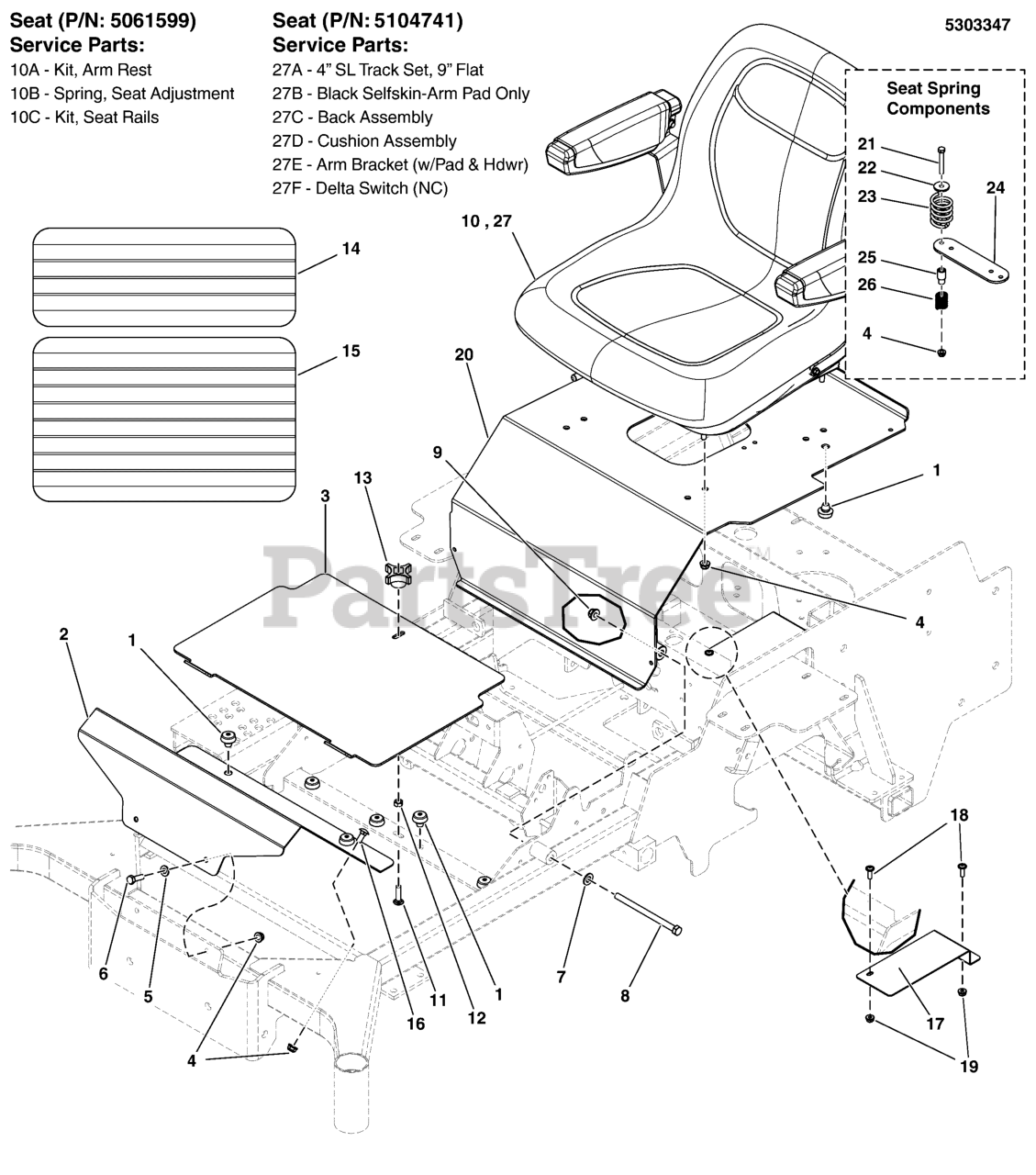

Seat Mount & Floor Group Parts Diagram

  • Title

1

Ferris 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$7.99

$

In Stock, only 2 left!

0

2

Ferris 5410898B

PLATE, FLOOR RIGID, S125XT - RED

$

$

Currently unavailable

3

Ferris 5410296B

PLATE, FLOOR, REMOVABLE, IS700 - RED
(Superseded to 5410296BFS)

$84.99

$

Usually ships in 2-12 days

0

4

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

7

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

8

Ferris 5025013X44

BOLT, 3/8-16 X 5-1/2" GD5 CZ
(Superseded to 5025013X44SM)

$4.99

$

Usually ships in 2-12 days

0

9

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

10

Ferris 5061599

SEAT, XB-180, NO LOGO, BLACK

Note: (S/N: 2017202281 & Below)

$

$

Not available

10A

Ferris 1686907

ARMREST KIT
(Superseded to 1686907SM)

Note: (SV - S/N: 2017202281 & Below)

$139.99

$

Usually ships in 2-12 days

0

10B

Ferris 5100652

SPRING, EXTENSION, SEAT ADJUSTMENT (BLK OR SLVR)

Note: (SV - S/N: 2017202281 & Below)(3-1/2" Total unstretched length)

$

$

Currently unavailable

10C

Ferris 5061599X1

SEAT RAIL, KIT, RH AND LH
(Superseded to 5061599X1SM)

Note: (SV - S/N: 2017202281 & Below)

$192.99

$

Usually ships in 2-12 days

0

11

Ferris 5025145X10

BOLT, 5/16-18 X 1-1/4, CARRIAGE YZ
(Superseded to 5025145X10YP)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 80003675

NUT, 5/16-18, HEX, CNTR LK, ZC/CL
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

13

Ferris 1670578

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG
(Superseded to 1670578SM)

$13.99

$

Usually ships in 2-12 days

0

14

Ferris 5101374

SAFETY WALK, FLOOR REST, 6.00 X 16.00
(Superseded to 5101374YP)

$18.99

$

In Stock, only 1 left!

0

15

Ferris 5101333

SAFETY WALK, FLOOR PLATE, S50X, 10X16
(Superseded to 5101333YP)

$37.99

$

Usually ships in 2-12 days

0

16

Ferris 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

17

Ferris 5410925A

PLATE, SEAT BELT GUARD - BLK
(Superseded to 5410925AFS)

$11.99

$

Usually ships in 2-12 days

0

18

Ferris 5025299X8

SCREW, 1/4-20 X 1, ALLEN BH, CZ
(Superseded to 5025299X8YP)

$4.49

$

Usually ships in 2-12 days

0

19

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

20

Ferris 5600676

ASSM, SEAT PLATE W/ DECALS, F125XT

Note: (SV)(5409985B)

$

$

Currently unavailable

21

Ferris 5025011X18

BOLT, 5/16-18 X 2-1/4 GD5 YZ
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

22

Ferris 5402732B

PLATE, SEAT SWITCH, RED

$13.99

$

Usually ships in 2-12 days

0

23

Ferris 5102228

SPACER, .33 X .66 X 1.31 SHLDR, CZ
(Superseded to 5102228YP)

$14.99

$

Usually ships in 2-12 days

0

24

Ferris 5102211

SPRING, COM 720ID X 1.31KG X .118WIRE
(Superseded to 5102211YP)

$31.99

$

Usually ships in 2-12 days

0

25

Ferris 5044617

WASHER, .34 X 1.25 X 10GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

26

Ferris 7078299

SPRING, SEAT SUPPORT
(Superseded to 7078299SM)

$14.99

$

Usually ships in 2-12 days

0

27

Ferris 5104741

SEAT, 907 SEAT INC
(Superseded to 5105039)

Note: (S/N: 2017202282 & Above)

$751.99

$

Usually ships in 2-12 days

0

27A

Ferris 5104741X1

4" SL TRACK SET - 9" FLAT - W/HDWR

Note: (SV - S/N: 2017202282 & Above)

$154.99

$

Usually ships in 2-12 days

0

27B

Ferris 5022185

ARM REST, BLACK MOLDED, PAD ONLY
(Superseded to 5022185SM)

Note: (SV - S/N: 2017202282 & Above)

$70.99

$

Usually ships in 2-12 days

0

27C

Ferris 5104741X3

BACK ASSEMBLY FOR 907

Note: (SV - S/N: 2017202282 & Above)

$275.99

$

Usually ships in 2-12 days

0

27D

Ferris 5104741X4

CUSHION ASSEMBLY FOR 907

Note: (SV - S/N: 2017202282 & Above)

$

$

Not available

27E

Ferris 5104741X5

ARM BRACKET W/PAD & HARDWARE

Note: (SV - S/N: 2017202282 & Above)

$136.99

$

Usually ships in 2-12 days

0

27F

Ferris 5104741X6

DELTA SWITCH - NORMALLY CLOSED
(Superseded to 7023354)

Note: (SV - S/N: 2017202282 & Above)

$12.99

$

In Stock, Qty 20+

0
