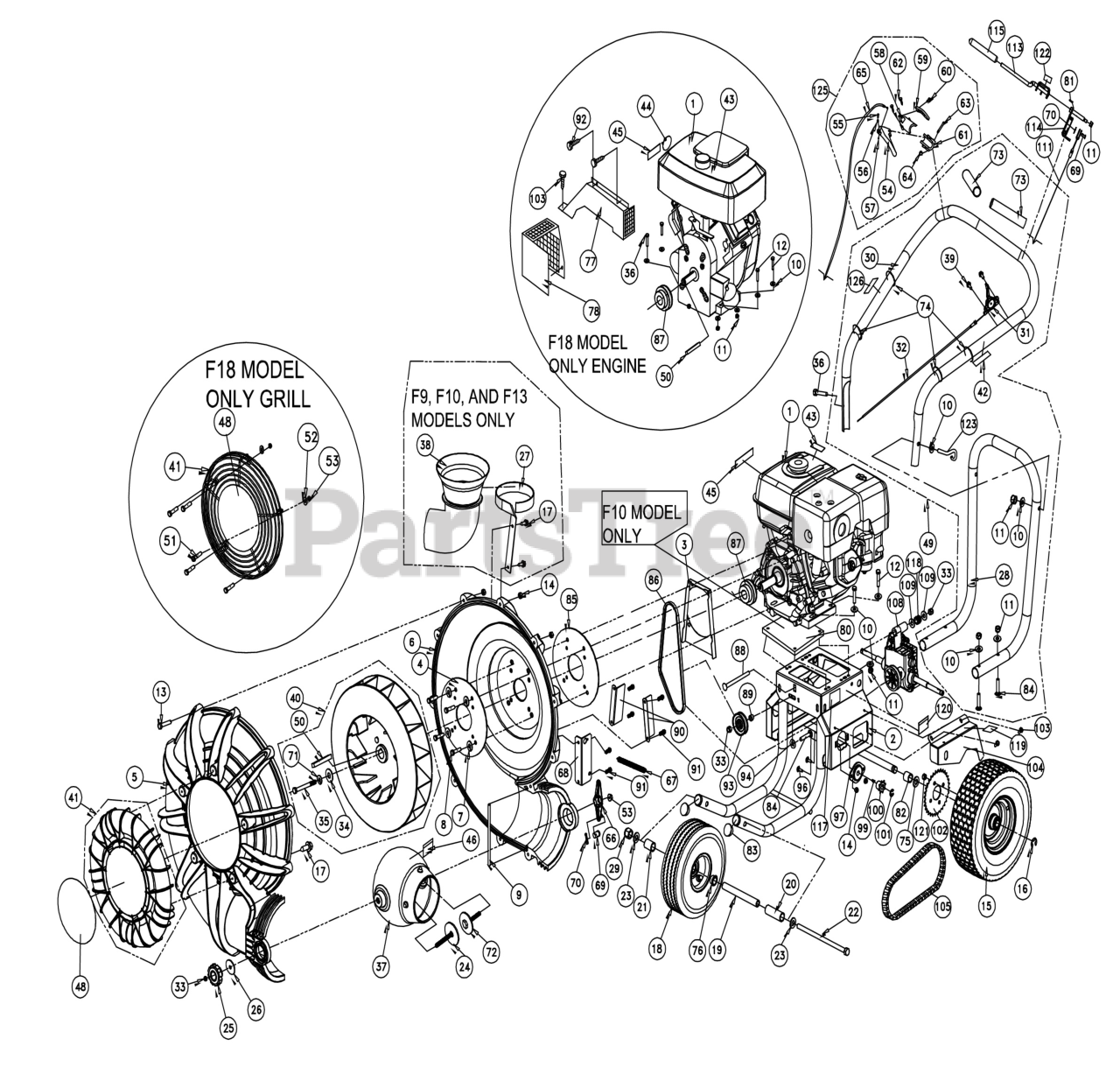

F 1002 SPV - Billy Goat Force Wheeled Blower, 10 hp Vanguard Parts Assembly Parts Diagram

Force Wheeled Blower, 10 hp Vanguard

Parts Assembly Parts Diagram

  • Title
1

Billy Goat 440342

ENGINE HONDA 10PH VANGUARD

$

$

Currently unavailable

2

Billy Goat 440244-S

FORCE FRAME W/LABELS KIT

$415.99

$

Usually ships in 2-11 days

0

3

Billy Goat 440209

GUARD BELT UPPER FSP

$23.99

$

Usually ships in 2-11 days

0

4

Billy Goat 440010-P

SEE: 440330
(Superseded to 440330)

$24.99

$

In Stock, only 1 left!

0

5

Billy Goat 440023

HOUSING FRONT MOLDED

$214.99

$

Usually ships in 2-11 days

0

6

Billy Goat 440024

HOUSING BACK MOLDED

$216.99

$

Usually ships in 2-11 days

0

7

Billy Goat 8177013

WASHER LOCK 7/16" S/T MED

$0.99

$

In Stock, Qty 9

0

8

Billy Goat 8041054

SCREWCAP 3/8"-16X2" HCS ZP

$0.99

$

In Stock, Qty 5

0

9

Billy Goat 440057

ROD HAND STOP

$5.49

$

Usually ships in 2-11 days

0

10

Billy Goat 8171003

WASHER 5/16" FLATWASHER Z/P

$0.99

$

In Stock, only 2 left!

0

11

Billy Goat 8160002

NUT LOCK 5/16"-18 HEX Z/P

$0.99

$

In Stock, Qty 5

0

12

Billy Goat 8041034

SCREWCAP 5/16"-18X2 1/2" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

13

Billy Goat 8041008

SCREWCAP 1/4"-20X1 1/2" HCS ZP

$0.99

$

Usually ships in 2-11 days

0

14

Billy Goat 900455

NUT WHIZ 1/4"-20 WASH FACE

$1.49

$

Usually ships in 2-11 days

0

15

Billy Goat 440219

WHEEL & TIRE 13" X 5" PNEU SPROCKET

$147.99

$

Usually ships in 2-11 days

0

16

Billy Goat 850230

RING RETAINING "E" 3/4"

$0.99

$

Usually ships in 2-11 days

0

17

Billy Goat 8122082

SCREW SM 1/4"X3/4" TYPE A HX WF

$1.49

$

Usually ships in 2-11 days

0

18

Billy Goat 400295

WHEEL ASSY PNEUMATIC

$87.99

$

In Stock, only 4 left!

0

19

Billy Goat 440220

SPACER AXLE FRONT

$24.99

$

Usually ships in 2-11 days

0

20

Billy Goat 440224

SPACER LH WHEEL FRONT

$8.99

$

Usually ships in 2-11 days

0

21

Billy Goat 440221

SPACER RH WHEEL FRONT

$7.49

$

Usually ships in 2-11 days

0

22

Billy Goat 8041240

SCREWCAP 1/2"-13 X 9 1/2" HCS ZP

$9.49

$

Usually ships in 2-11 days

0

23

Billy Goat 8172011

WASHER 1/2" SAE Z/P

$0.99

$

In Stock, Qty 6

0

24

Billy Goat 440075

WASHER W/BOLT WA

$6.99

$

Usually ships in 2-11 days

0

25

Billy Goat 811230

KNOB 3/8-18, SOLID HUB

$8.99

$

In Stock, only 2 left!

0

26

Billy Goat 610308-P

WASHER 2.25 OD X .515 ID X .134 ZP

$2.99

$

Usually ships in 2-11 days

0

27

Billy Goat 440240

BRACKET EXHAUST FRONT

$37.99

$

In Stock, only 1 left!

0

28

Billy Goat 440034

HANDLE LOWER

$87.99

$

Usually ships in 2-11 days

0

29

Billy Goat 8161044

NUT LOCK 1/2"-13 NYLON INSERT

$0.99

$

In Stock, only 3 left!

0

30

Billy Goat 440035

HANDLE UPPER

$

$

Not available

31

Billy Goat 440013

CONTROL THROTTLE BLOWER

$40.99

$

In Stock, Qty 17

0

32

Billy Goat 440014

CABLE THROTTLE BLOWER

$27.99

$

In Stock, Qty 20+

0

33

Billy Goat 8161042

NUT LOCK 3/8-16 LT WT THIN ZP

$0.99

$

In Stock, Qty 9

0

34

Billy Goat 440176

WASHER 1.5 OD X 0.453 ID X 0.5

$2.99

$

In Stock, only 4 left!

0

35

Billy Goat 440150

SCREWCAP 7/16-20 X 3 1/2 GR. 8 W/ PATCH

$4.99

$

Usually ships in 2-11 days

0

36

Billy Goat 8041032

SCREWCAP 5/16"-18X2" HCS ZP

$0.99

$

In Stock, Qty 8

0

37

Billy Goat 440046-S

DIRECTOR CONE 4" W/LABEL

$80.99

$

In Stock, only 1 left!

0

38

Billy Goat 440045-4

DIVERTER FRONT 4" (NEW STYLE)

$60.99

$

Usually ships in 2-11 days

0

39

Billy Goat 8122064

SCREW SELFTAP #10-24 X 3/8"ZP

$1.49

$

Usually ships in 2-11 days

0

40

Billy Goat 440236

IMPELLER SERVICE KIT FORCE

$313.99

$

In Stock, only 1 left!

0

41

Billy Goat 440067-1-S

GRILL KIT GEN II

$80.99

$

Usually ships in 2-11 days

0

42

Billy Goat 810656

LABEL THROTTLE CONTROL

$3.99

$

Usually ships in 2-11 days

0

43

Billy Goat 100261

LABEL HOT ENGINE

$3.99

$

Usually ships in 2-11 days

0

45

Billy Goat 100346

LABEL SAFETY PROTECT READ MANUAL

$3.99

$

Usually ships in 2-11 days

0

46

Billy Goat 810736

LABEL DANGER FLYING DEBRIS

$3.99

$

In Stock, only 2 left!

0

48

Billy Goat 440269

LABEL FORCE GEN II SP

$8.99

$

Usually ships in 2-11 days

0

49

Billy Goat 440104

SEE: 440104-S
(Superseded to 440104-S)

$244.99

$

Usually ships in 2-11 days

0

50

Billy Goat 9201128

KEY 1/4" SQ X 3 1/4"

$2.99

$

Usually ships in 2-11 days

0

53

Billy Goat 8160001

NUT LOCK 1/4"-20 HEX Z/P

$0.99

$

In Stock, Qty 9

0

54

Billy Goat 440119

LEVER DIVERTER

$9.99

$

In Stock, only 1 left!

0

55

Billy Goat 440118

PIN LATCH DIVERTER

$9.49

$

In Stock, only 2 left!

0

56

Billy Goat 440129

SPRING COMPRESSION 0.281 X 0.88

$7.49

$

In Stock, only 2 left!

0

57

Billy Goat 440125

RING RETAINING 3/16" E-CLIP

$0.99

$

Usually ships in 2-11 days

0

58

Billy Goat 440115

SADDLE LOWER DIVERTER

$5.99

$

In Stock, only 1 left!

0

59

Billy Goat 440116

PLATE LOCK DIVERTER

$16.99

$

In Stock, only 2 left!

0

60

Billy Goat 440126

SCREW PLASTITE #6-19 X 5/8" HWH ZP

$0.99

$

In Stock, Qty 9

0

61

Billy Goat 440114

SADDLE UPPER DIVERTER

$5.49

$

In Stock, only 2 left!

0

62

Billy Goat 440132

SCREW PLASTITE #10-14 X 1" HWH ZP

$0.99

$

In Stock, Qty 5

0

63

Billy Goat 440123

PIN PIVOT DIVERTER CONTROL

$4.49

$

In Stock, only 2 left!

0

64

Billy Goat 430327

RING RETAINING 5/16"

$2.49

$

In Stock, only 2 left!

0

65

Billy Goat 440117

CABLE DIVERTER

$27.99

$

In Stock, Qty 12

0

66

Billy Goat 440121

DIVERTER REMOTE ADAPTER

$6.99

$

In Stock, Qty 6

0

67

Billy Goat 440130

SPRING EXTENSION .468 X 5.25

$8.49

$

In Stock, only 1 left!

0

68

Billy Goat 440212

BRACKET DIVERTER FORCE

$10.99

$

Usually ships in 2-11 days

0

69

Billy Goat 440124

PIN CLEVIS 1/4" X .75"

$1.49

$

Usually ships in 2-11 days

0

70

Billy Goat 440193

PIN CLIP HITCH 0.051 X 3/4"

$0.99

$

In Stock, Qty 5

0

71

Billy Goat 8177013

WASHER LOCK 7/16" S/T MED

$0.99

$

In Stock, Qty 9

0

72

Billy Goat 440122

ADAPTOR MOUNT WA

$8.99

$

Usually ships in 2-11 days

0

73

Billy Goat 440146

GRIP 1-1/4" ID X 9.5" LONG

$9.49

$

In Stock, only 3 left!

0

74

$0.99

$

In Stock, only 2 left!

0

75

Billy Goat 850238

WASHER .765" ID X 1.25 OD X .06"

$1.49

$

In Stock, only 2 left!

0

76

Billy Goat 440055

FORCE WHEEL BEARING .751 ID

$14.99

$

In Stock, only 2 left!

0

80

Billy Goat 440148

SPACER PLATE WELDMENT

$55.99

$

Usually ships in 2-11 days

0

81

Billy Goat 8195096

PIN ROLL 1/8" X 1/2" Z/P

$0.99

$

Usually ships in 2-11 days

0

82

Billy Goat 440225

SPACER REAR WHEEL SP

$6.99

$

In Stock, only 1 left!

0

83

Billy Goat 791056

PLUG TUBE INSERT 1.25" O.D.

$

$

Not available

84

Billy Goat 8024061

BOLT CARRIAGE 3/8"-16 X 1 3/4" ZP

$1.49

$

Usually ships in 2-11 days

0

85

Billy Goat 440174

PLATE ENGINE SPACER

$95.99

$

Usually ships in 2-11 days

0

86

Billy Goat 440215

BELT FORCE SP

$27.99

$

Usually ships in 2-11 days

0

87

Billy Goat 440213

SPACER HUB 1" ID X 1.25" W/PULLEY

$73.99

$

Usually ships in 2-11 days

0

88

Billy Goat 8024161

BOLT CARRIAGE 3/8-16 X 5" ZP

$1.49

$

Usually ships in 2-11 days

0

89

Billy Goat 440228

TUBE SPACER 0.625" OD X 0.357" LONG

$6.99

$

Usually ships in 2-11 days

0

90

Billy Goat 440210

GUARD BELT LOWER FSP

$8.99

$

Usually ships in 2-11 days

0

91

Billy Goat 840082

SCREW PLASTITE 1/4-10 X 3/4 HWH ZP

$1.49

$

In Stock, Qty 6

0

93

Billy Goat 510137

PULLEY V IDLER 2.5

$17.99

$

Usually ships in 2-11 days

0

94

Billy Goat 440227

WASHER 1.00" OD X 0.380 SQ HOLE

$0.99

$

Usually ships in 2-11 days

0

96

Billy Goat 8024021

BOLT CARRIAGE 1/4" X 3/4"

$0.99

$

Usually ships in 2-11 days

0

97

Billy Goat 891025

SEE: 891025-S
(Superseded to 891025-S)

$76.99

$

Usually ships in 2-11 days

0

99

Billy Goat 510180

KEY WOODRUFF 1/8" X 1/2"

$1.49

$

In Stock, Qty 9

0

100

Billy Goat 891022

SPROCKET 8 TOOTH 41B8

$15.99

$

In Stock, only 1 left!

0

101

Billy Goat 350146

RING RETAINING 1/2"

$0.99

$

In Stock, only 2 left!

0

102

Billy Goat 440218

SPROCKET 32T #43 1.594" BORE

$20.99

$

Usually ships in 2-11 days

0

103

Billy Goat 890359

SCREW SELF TAP 1/4"-20 X 5/8" HWH TYPE F

$1.49

$

In Stock, only 3 left!

0

104

Billy Goat 440206-S

CHAIN CUARD LH W/LABELS KIT

$52.99

$

Usually ships in 2-11 days

0

104

Billy Goat 440207-S

CHAIN CUARD RH W/LABELS KIT

$59.99

$

Usually ships in 2-11 days

0

105

Billy Goat 440217

CHAIN #43 X 44 PITCHES

$9.49

$

In Stock, only 1 left!

0

108

Billy Goat 440216

TRANS SINGLE SPEED W/CLUTCH GENERAL

$399.99

$

Usually ships in 2-11 days

0

109

Billy Goat 8172009

WASHER 3/8"SAE 13/32"X13/16"X1/16"

$1.49

$

In Stock, Qty 6

0

111

Billy Goat 440243

CABLE CLUTCH FORCE SP

$54.99

$

Usually ships in 2-11 days

0

113

Billy Goat 440277

ARM, CLUTCH CONTROL WA

$36.99

$

Usually ships in 2-11 days

0

114

Billy Goat 440245

BRACKET CLUTCH CONTROL

$47.99

$

Usually ships in 2-11 days

0

115

Billy Goat 440242

GRIP CLUTCH CONTROL FSP

$6.99

$

Usually ships in 2-11 days

0

117

Billy Goat 100252

SEE: 100256
(Superseded to 100256)

$2.99

$

In Stock, Qty 5

0

118

Billy Goat 610429

SPRING LEVER GZ

$20.99

$

Usually ships in 2-11 days

0

119

Billy Goat 830502

LABEL OIL CHAIN VQSP

$3.99

$

Usually ships in 2-11 days

0

120

Billy Goat 900327

LABEL DANGER

$3.99

$

In Stock, only 3 left!

0

121

Billy Goat 440274

NUT 5/16-24 SER. HEX WSHR FLNG

$0.99

$

Usually ships in 2-11 days

0

122

Billy Goat 500176

LABEL CLUTCH DRIVE

$3.99

$

Usually ships in 2-11 days

0

123

Billy Goat 440280

EYEBOLT, PIGTAIL 5/16"-18 X 1 1/4"

$6.99

$

Usually ships in 2-11 days

0

125

Billy Goat 520116

NO LONGER AVAILABLE

$

$

Not available

126

Billy Goat 440332

FORCE AIM AND SHOOT LABEL

$3.99

$

In Stock, only 1 left!

0
