EZT750-3030 - Kohler Confidant EFI Engine, Made for Exmark, 27hp, 747cc 09 Engine Controls Parts Diagram

Confidant EFI Engine, Made for Exmark, 27hp, 747cc

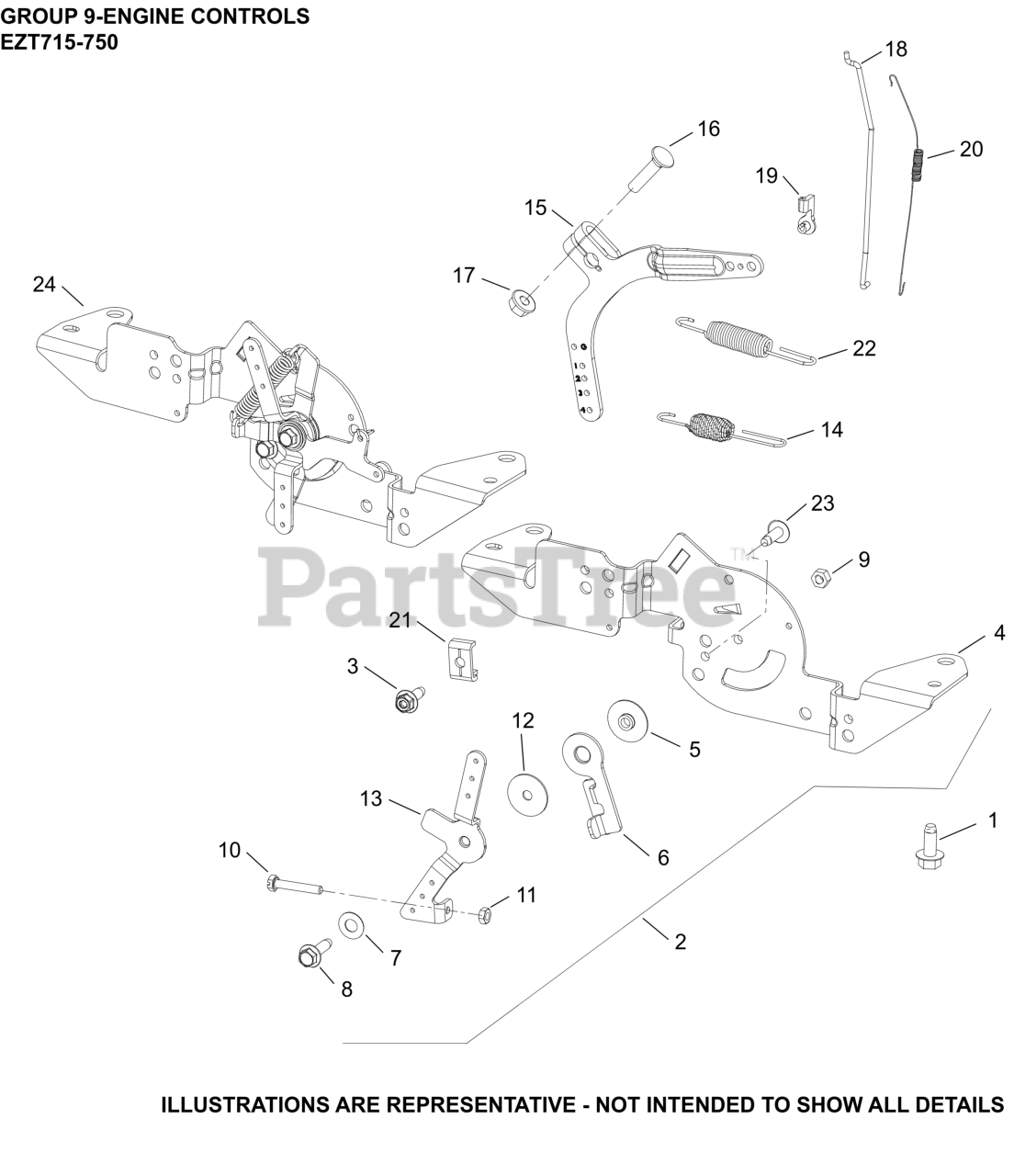

09 Engine Controls Parts Diagram

  • Title
1

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 15

0

3

Kohler 25 086 651-S

SCREW, THREAD FORMING

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 32 126 18-S

BRACKET, SPEED CONTROL

$11.99

$

In Stock, only 2 left!

0

5

Kohler 24 112 27-S

SPACER, CONTROL ASSEMBLY

$3.99

$

In Stock, only 2 left!

0

6

Kohler 24 090 47-S

LEVER, THROTTLE ACTUATOR

$2.99

$

In Stock, Qty 11

0

7

Kohler 41 468 03-S

WASHER, SPRING 1/4"

$3.49

$

In Stock, only 2 left!

0

8

Kohler 25 086 399-S

SCREW, THD FRM-USE 25 086 473-S
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

9

Kohler M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, only 2 left!

0

10

Kohler M-403025-S

SCREW, SLT HD CAP M4X0.7X25

$4.99

$

In Stock, only 1 left!

0

11

Kohler M-446030-S

NUT, M4X0.7

$2.49

$

In Stock, Qty 5

0

12

Kohler 24 468 20-S

WASHER, FLAT 5 MM

$2.49

$

In Stock, only 1 left!

0

13

Kohler 24 090 13-S

LEVER, THROTTLE CONTROL

$9.49

$

In Stock, only 1 left!

0

15

Kohler 24 090 57-S

LEVER, GOVERNOR - (#2409069S)
(Superseded to 24 090 69-S)

$8.99

$

In Stock, only 1 left!

0

16

Kohler 24 211 03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 15

0

17

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 9

0

18

Kohler 16 079 02-S

LINKAGE, THROTTLE

$2.49

$

Usually ships in 2-5 days

0

19

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, Qty 13

0

20

Kohler 32 089 11-S

SPRING, LINKAGE

$2.49

$

In Stock, Qty 18

0

21

Kohler 25 237 53-S

CLAMP, CABLE CABLE

$3.49

$

In Stock, Qty 5

0

22

Kohler 24 089 50-S

SPRING, GOVERNOR (CLEAR)

$7.99

$

In Stock, only 1 left!

0

23

Kohler 25 086 398-S

SCREW, THREAD FORMING

$3.99

$

Usually ships in 2-5 days

0

25

Kohler 24 089 03-S

SPRING, CHOKE RETURN

$2.99

$

In Stock, Qty 12

0

26

Kohler 24 090 05-S

LEVER, CHOKE

$5.49

$

In Stock, only 2 left!

0

27

Kohler 24 090 69-S

LEVER, GOVERNOR ASSEMBLY

$8.99

$

In Stock, only 1 left!

0

28

Kohler 24 468 01-S

WASHER, FLAT 5.5 MM

$2.49

$

In Stock, only 2 left!

0

29

Kohler 32 536 08-S

CONTROL ASSEMBLY, DUAL WIRE

$22.99

$

In Stock, only 1 left!

0
