EZT750-3022 - Kohler Confidant EFI Engine, Made for Intimidator, 27hp, 747cc Ignition/Charging 5-32-221 EZT715-750 Parts Diagram

Confidant EFI Engine, Made for Intimidator, 27hp, 747cc

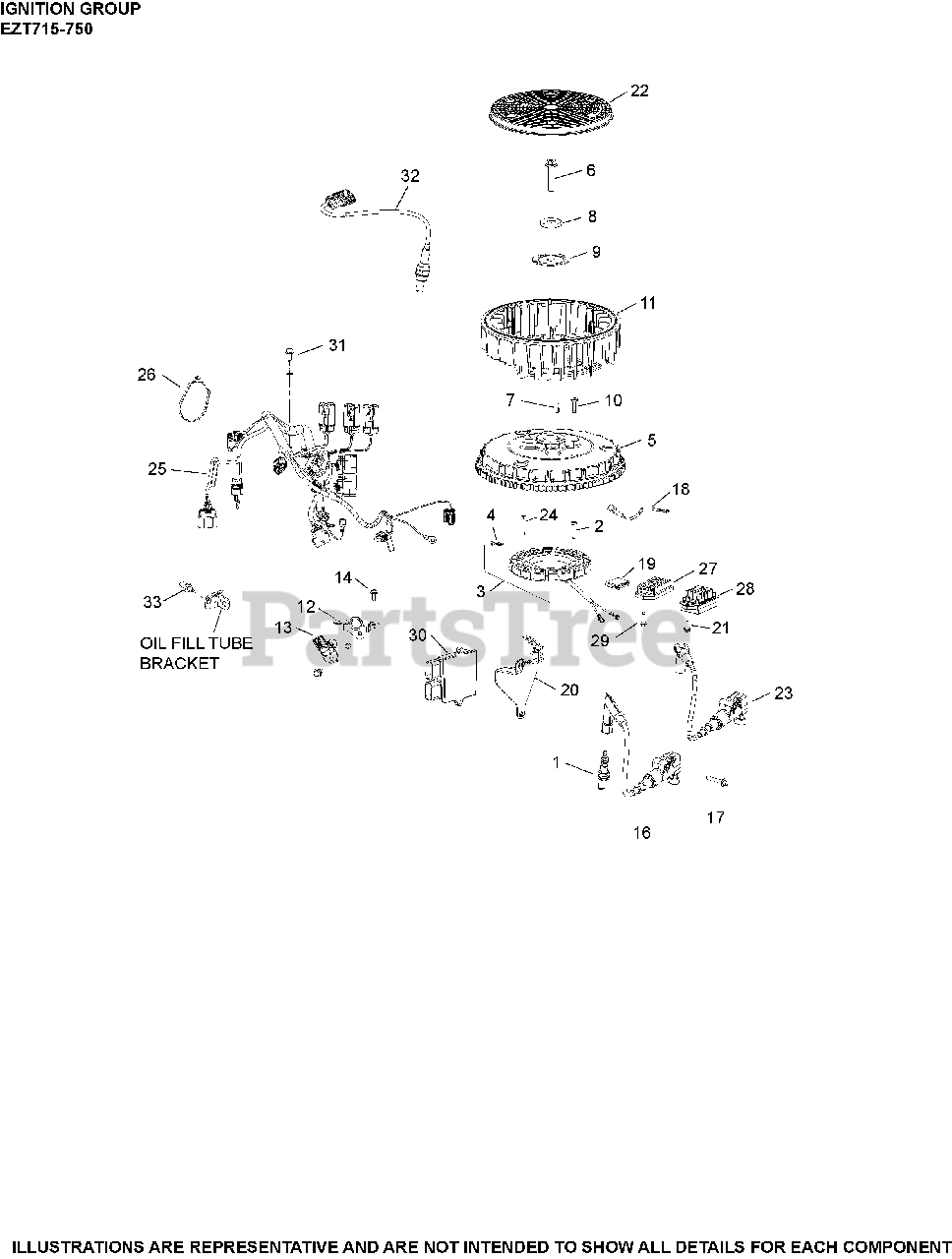

Ignition/Charging 5-32-221 EZT715-750 Parts Diagram

  • Title

1

Kohler 25 132 23-S

PLUG, SPARK
(Superseded to 25 132 13-S)

$13.99

$

Usually ships in 2-5 days

0

2

Kohler 25 086 402-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

3

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 15

0

4

Kohler 25 452 01-S

TERMINAL

$5.49

$

In Stock, only 1 left!

0

5

Kohler 16 025 01-S

FLYWHEEL , ASSEMBLY

$158.99

$

Usually ships in 2-5 days

0

6

Kohler 25 086 361-S

SCREW, HEX FLANGE

$3.99

$

In Stock, Qty 12

0

7

Kohler 25 340 04-S

KEY, SQUARE

$3.99

$

In Stock, Qty 10

0

8

Kohler 25 468 09-S

WASHER, FLAT

$6.49

$

In Stock, only 2 left!

0

10

Kohler 32 018 03-S

RETAINER, FLYWHEEL FAN

$2.49

$

In Stock, only 2 left!

0

11

Kohler 32 157 04-S

FAN

$15.99

$

In Stock, only 4 left!

0

12

Kohler 25 126 18-S

BRACKET, SENSOR

$3.49

$

Usually ships in 2-5 days

0

13

Kohler 25 418 01-S

SENSOR, SPEED

$37.99

$

In Stock, only 1 left!

0

14

Kohler M-545013-S

SCREW, FLG THD FRM M5X0.8X13

$2.49

$

In Stock, Qty 9

0

17

Kohler M-640034-S

SCREW, FLG M6X1.0X34

$2.49

$

In Stock, Qty 18

0

18

Kohler 16 518 01-S

LEAD , REGULATOR RECTIFIER JUMPER

$4.49

$

Usually ships in 2-5 days

0

19

Kohler 25 155 41-S

CONNECTOR

$24.99

$

In Stock, only 1 left!

0

20

Kohler 16 126 03-S

BRACKET , ECU

$7.49

$

Usually ships in 2-5 days

0

21

Kohler 25 086 651-S

SCREW, THREAD FORMING

$2.49

$

Usually ships in 2-5 days

0

23

Kohler 25 519 02-S

COIL, IGNITION - EFI

$167.99

$

Usually ships in 2-5 days

0

25

Kohler 16 176 02-S

HARNESS, W/TEMP SENSOR

$288.99

$

Usually ships in 2-5 days

0

26

Kohler 25 454 07-S

TIE

$2.49

$

Usually ships in 2-5 days

0

28

Kohler 25 403 29-S

REGULATOR, RECTIFIER (20/25 AMP) USE 25 403 32-S
(Superseded to 25 403 32-S)

$

$

Not available

30

Kohler 16 584 07-S

MODULE, ECU
(Superseded to 16 584 15-S)

$249.99

$

Usually ships in 2-5 days

0

31

Kohler 25 086 681-S

SCREW, CAPTIVE WASHER (SEMS)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 15

0

31

Kohler 25 086 680-S

SCREW, CAPTIVE WASHER (SEMS)

$2.49

$

Usually ships in 2-5 days

0

6215405-S

Kohler 62 154 05-S

CLIP

$11.99

$

Usually ships in 2-5 days

0

1616201-S

Kohler 16 162 01-S

SCREEN ASSEMBLY, GRASS

Note: NOT ILLUSTRATED

$54.99

$

Usually ships in 2-5 days

0

1617301-S

Kohler 16 173 01-S

CAP, GRASS SCREEN

Note: NOT ILLUSTRATED

$4.49

$

Usually ships in 2-5 days

0
