EZT 20500 BV (5091003) - Snapper 50" Zero-Turn Mower, 20hp Electrical Group Parts Diagram

50" Zero-Turn Mower, 20hp

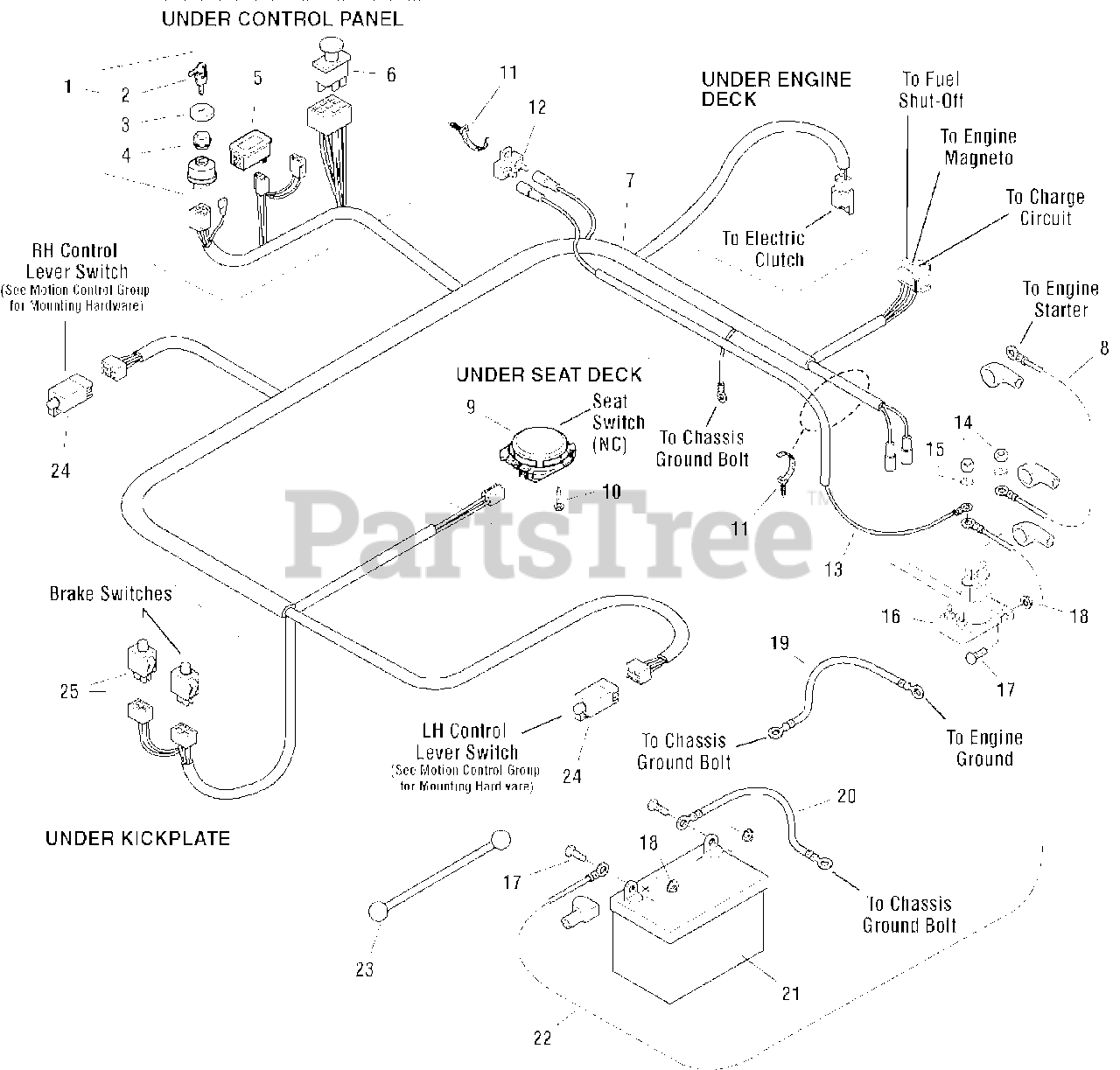

Electrical Group Parts Diagram

  • Title

1

Snapper 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

In Stock, only 3 left!

0

2

Snapper 7073406

KEY, Ignition Molded (Set of 2)
(Superseded to 1717163SM)

Note: (5022789)

$8.99

$

In Stock, Qty 20+

0

3

Snapper 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

4

Snapper 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 1 left!

0

5

Snapper 1687008

HOUR METER, DIGITAL (Includes Retaining Ring)
(Superseded to 1731184SM)

Note: (Was 1725523)

$64.99

$

In Stock, only 1 left!

0

6

Snapper 5022180

SWITCH, PTO
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

7

Snapper 5048640

MAIN HARNESS ASSEMBLY
(Superseded to 5048640SM)

$384.99

$

Usually ships in 2-12 days

0

8

Snapper 5048756

CABLE, #6 X 15" LONG, RING TERMINAL
(Superseded to 5048756SM)

$19.99

$

Usually ships in 2-12 days

0

9

Snapper 1716368

SWITCH, SEAT, GRAY, NC
(Superseded to 5100540)

$32.99

$

In Stock, only 1 left!

0

10

Snapper 1960536

CAPSCREW, HEX WASHER HEAD PLASTITE, 1/4 X 1/2
(Superseded to 1960536SM)

$4.99

$

Usually ships in 2-12 days

0

11

Snapper 5021199

CABLE TIE, PUSH MOUNT
(Superseded to 5021199SM)

$5.99

$

In Stock, only 1 left!

0

12

Snapper 5023222

CIRCUIT BREAKER, 20A
(Superseded to 5023222SM)

$

$

Not available

13

Snapper 5048938

CRICUIT BREAKER WIRE ASSEMBLY
(Superseded to 5048938SM)

$8.99

$

Usually ships in 2-12 days

0

14

Snapper 5023216

NUT, HEX JAM, 5/16-24
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

15

Snapper 5023217

WASHER, LIGHT LOCK, 5/16
(Superseded to 5023217SM)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 1686981

SOLENOID
(Superseded to 1686981YP)

Note: (Was 1724815)

$28.99

$

In Stock, Qty 20+

0

17

Snapper 5025010X6

CAPSCREW, HEX HEAD, 1/4-20 X 3/4
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

18

Snapper 5025126

NUT, HEX SERRATED FLANGE, 1/4-20
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

19

Snapper 5044014

CABLE, #6 X 10" LONG, RING TERMINAL
(Superseded to 5044014SM)

$14.99

$

Usually ships in 2-12 days

0

20

Snapper 5021406

CABLE, #6 X 22" LONG, RING TERMINAL
(Superseded to 5021406SM)

$16.99

$

Usually ships in 2-12 days

0

21

Snapper 7035610

BATTERY, 12 VOLT

Note: (Was 5020798)

$

$

Not available

22

Snapper 5021542

CABLE, #6 X 30" LONG, RING TERMINAL
(Superseded to 5021542SM)

$29.99

$

Usually ships in 2-12 days

0

23

Snapper 1722009

STRAP, BATTERY, 14 LONG, RUBBER
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

24

Snapper 5022095

SWITCH, PLUNGER, NO/NC
(Superseded to 1717050)

$17.99

$

In Stock, Qty 20+

0

25

Snapper 7022886YP

SWITCH, PLUNGER, NO/NC, SNAP IN

$14.99

$

In Stock, Qty 20+

0
