EZT 20500 BV (5091003) - Snapper 50" Zero-Turn Mower, 20hp Controls Group - Panel Parts Diagram

50" Zero-Turn Mower, 20hp

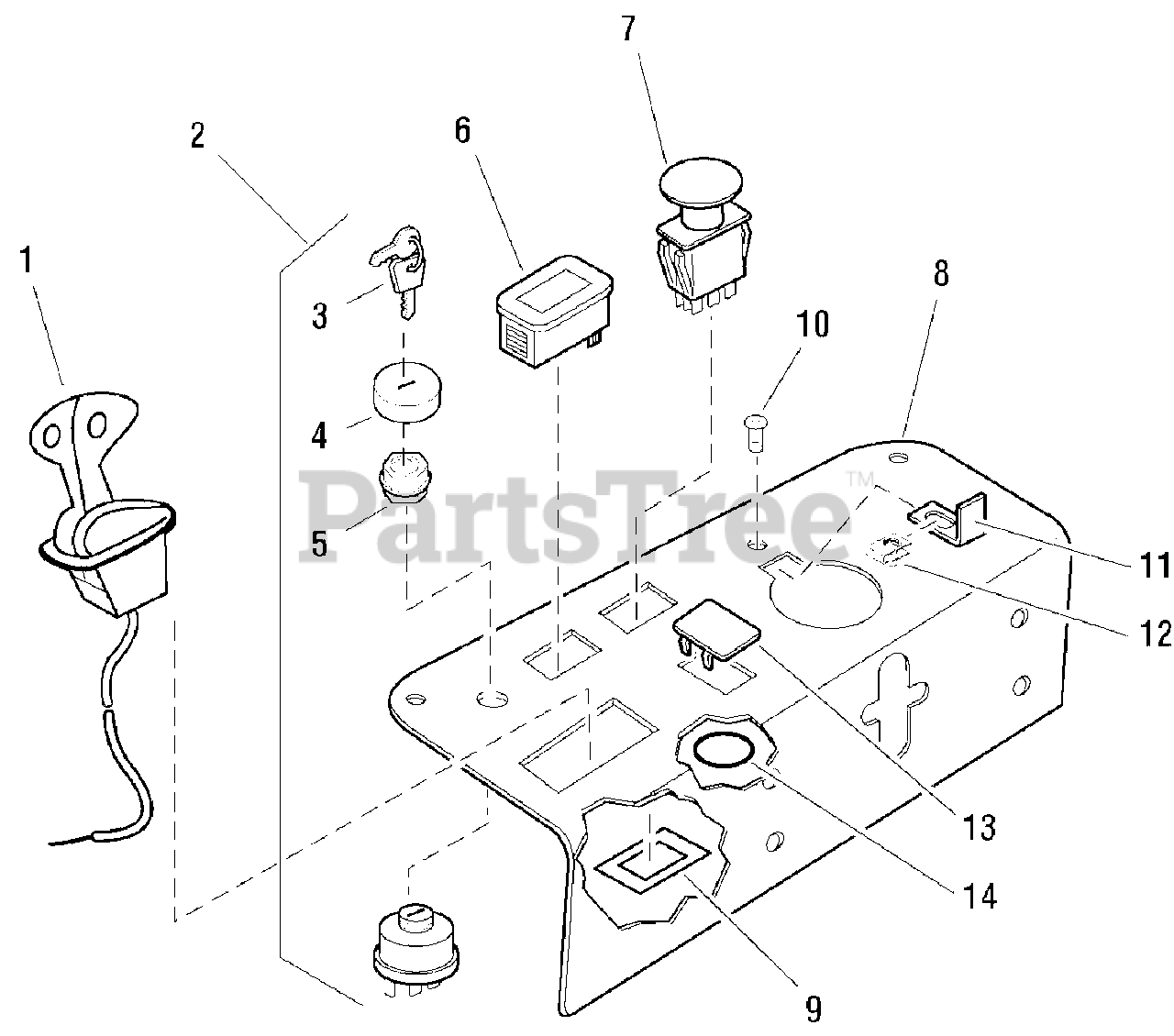

Controls Group - Panel Parts Diagram

  • Title

1

Snapper 7072517

DUAL CHOKE/THROTTLE LEVER
(Superseded to 7072517SM)

Note: (Was 1721950)

$118.99

$

In Stock, Qty 7

0

2

Snapper 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

In Stock, only 3 left!

0

3

Snapper 7073406

KEY, Ignition Molded (Set of 2)
(Superseded to 1717163SM)

Note: (5022789)

$8.99

$

In Stock, Qty 20+

0

4

Snapper 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

$4.49

$

In Stock, only 1 left!

0

5

Snapper 5022791

PLASTIC NUT
(Superseded to 5022791SM)

$3.49

$

In Stock, only 1 left!

0

6

Snapper 1687008

HOUR METER, DIGITAL (Includes Retaining Ring)
(Superseded to 1731184SM)

Note: (Was 1725523)

$64.99

$

In Stock, only 1 left!

0

7

Snapper 5022180

SWITCH, PTO
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

8

Snapper 5048758A

CONTROL PANEL
(Superseded to 5048758ASM)

$62.99

$

Usually ships in 2-12 days

0

9

Snapper 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 2 left!

0

10

Snapper 5025229X4

CAPSCREW, BUTTON ALLEN HEAD, 1/4-20 x 3/4

$

$

Currently unavailable

11

Snapper 5049022A

LOCK BRACKET
(Superseded to 5049022ASM)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 5022665

BODY CLIP, 1/4-20
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 1709188

HOLE PLUG
(Superseded to 1709188SM)

$4.99

$

In Stock, only 1 left!

0

14

Snapper 5022269

O-RING
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0
