EZT 2042 (2691041-02) - Murray 42" Zero-Turn Mower, 20hp, Canada (2013) Transaxle Group - EZT Parts Diagram

42" Zero-Turn Mower, 20hp, Canada

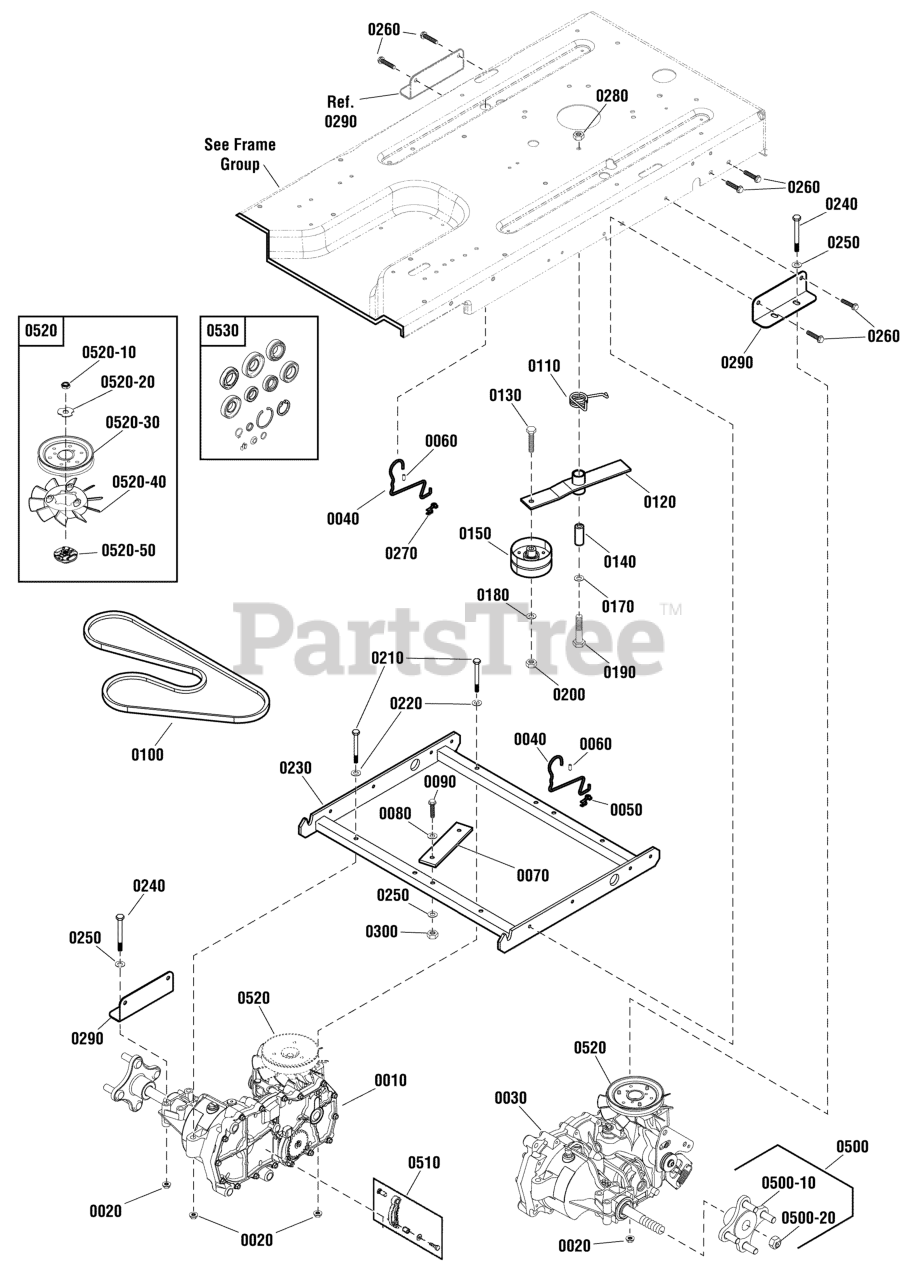

Transaxle Group - EZT Parts Diagram

  • Title

0010

Murray 7104657YP

TRANSAXLE, Hydro Gear, RH

$1173.99

$

Usually ships in 2-12 days

0

0020

Murray 015X88MA

NUT, Hex Flange, Center Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0030

Murray 7104656YP

TRANSAXLE, Hydro Gear, LH

$1171.99

$

Usually ships in 2-12 days

0

0040

Murray 7103512YP

ROD, Roll Release

$19.99

$

In Stock, only 1 left!

0

0050

Murray 1725550SM

CLIP, Rod End Clevis, LH (for 3/16 Dia. Rod)

$5.99

$

Usually ships in 2-12 days

0

0060

Murray 7103537YP

CAP, Vinyl

$3.49

$

Usually ships in 2-12 days

0

0070

Murray 7104674YP

RUBBER, Anti-Rotation

$

$

Not available

0080

Murray 7011763SM

WASHER, Fender, 5/16

$4.49

$

In Stock, only 4 left!

0

0090

Murray 7091908YP

CAPSCREW, Hex Head, 5/16-18 x 1-3/4, G5
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

0100

Murray 7100102SM

V-BELT, Hydro Drive (HA section, 58.00" effective length)

$43.99

$

In Stock, Qty 20+

0

0110

Murray 7044760SM

SPRING, Torsion, RH Wind

$33.99

$

In Stock, only 2 left!

0

0120

Murray 7400208BMYP

IDLER, Hydro

$45.99

$

In Stock, only 1 left!

0

0130

Murray 7091305SM

CAPSCREW, Hex Head, 3/8-16 x 2, G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0140

Murray 7200034SM

SPACER, Hydro Idler

$

$

Not available

0150

Murray 7100103SM

IDLER, Backside, 3-1/7 OD x .391 ID x 1-5/8"

$43.99

$

In Stock, Qty 8

0

0170

Murray 7091587SM

WASHER, Flat, 1/2 ID x 1 OD
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

0180

Murray 7090122YP

WASHER, Flat, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 7

0

0190

Murray 7091218SM

CAPSCREW, Hex Head, 1/2-13 x 2-1/2, G5
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

0200

Murray 7091585SM

NUT, Hex Center Lock, 3/8-16, G5
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

0210

Murray 7091830SM

CAPSCREW, Hex Head, 5/16-18 x 3, G5
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

0220

Murray 7015686SM

WASHER, Shim, 5/16 ID x 3/4 OD

$3.99

$

Usually ships in 2-12 days

0

0230

Murray 7400288BMYP

SUPPORT, Transaxle

$210.99

$

Usually ships in 2-12 days

0

0240

Murray 7091944SM

CAPSCREW, Hex Head, 5/16-18 x 2-3/4, G5
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

0250

Murray 7090188SM

WASHER, Flat, 0.34 ID x 5/8 OD
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

0260

Murray 1664847SM

SCREW, Hex Washer Head, Self Tap, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0270

Murray 1717024SM

CLIP, Rod End Clevis, RH (for 3/16 Dia. Rod)

$7.49

$

In Stock, only 2 left!

0

0280

Murray 7091894SM

NUT, Hex Center Lock, 1/2-13, G5
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

0290

Murray 7300000BMYP

BRACKET, Transaxle Support

$12.99

$

Usually ships in 2-12 days

0

0300

Murray 7091575SM

NUT, Hex Center Lock, 5/16-18, G5
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

0500

Murray 7600158YP

KIT, Hub Replacement

Note: (Includes Ref. Nos. 0510-10 & 0510-20)

$122.99

$

Usually ships in 2-12 days

0

0500-10

HUB, EZT Transmission

$

$

Not available

0500-20

NUT, EZT Transmission

$

$

Not available

0510

Murray 1728075SM

ASSEMBLY, Parking Brake Arm, Transmission

$50.99

$

In Stock, only 1 left!

0

0520

Murray 7600157YP

KIT, Fan & Pulley, EZT

Note: (Includes Ref. 0520-10, 0510-20, 0520-30, 0510-40 & 0520-50)

$120.99

$

Usually ships in 2-12 days

0

0520-10

NUT, Hex Jam, 1/2-20

$

$

Not available

0520-20

WASHER, Slotted

$

$

Not available

0520-30

PULLEY, Transmission, 4-1/2"

$

$

Not available

0520-40

FAN, Transmission, 6"

$

$

Not available

0520-50

HUB, Pulley

$

$

Not available

0530

Murray 1728060SM

KIT, Hydro Seal

Note: (Includes all parts shown in box.)

$140.99

$

Usually ships in 2-12 days

0
