EZT 2042 (2691041-01) - Murray 42" Zero-Turn Mower, 20hp, Canada (2012) Seat, Body & Fuel Tank Group Parts Diagram

42" Zero-Turn Mower, 20hp, Canada

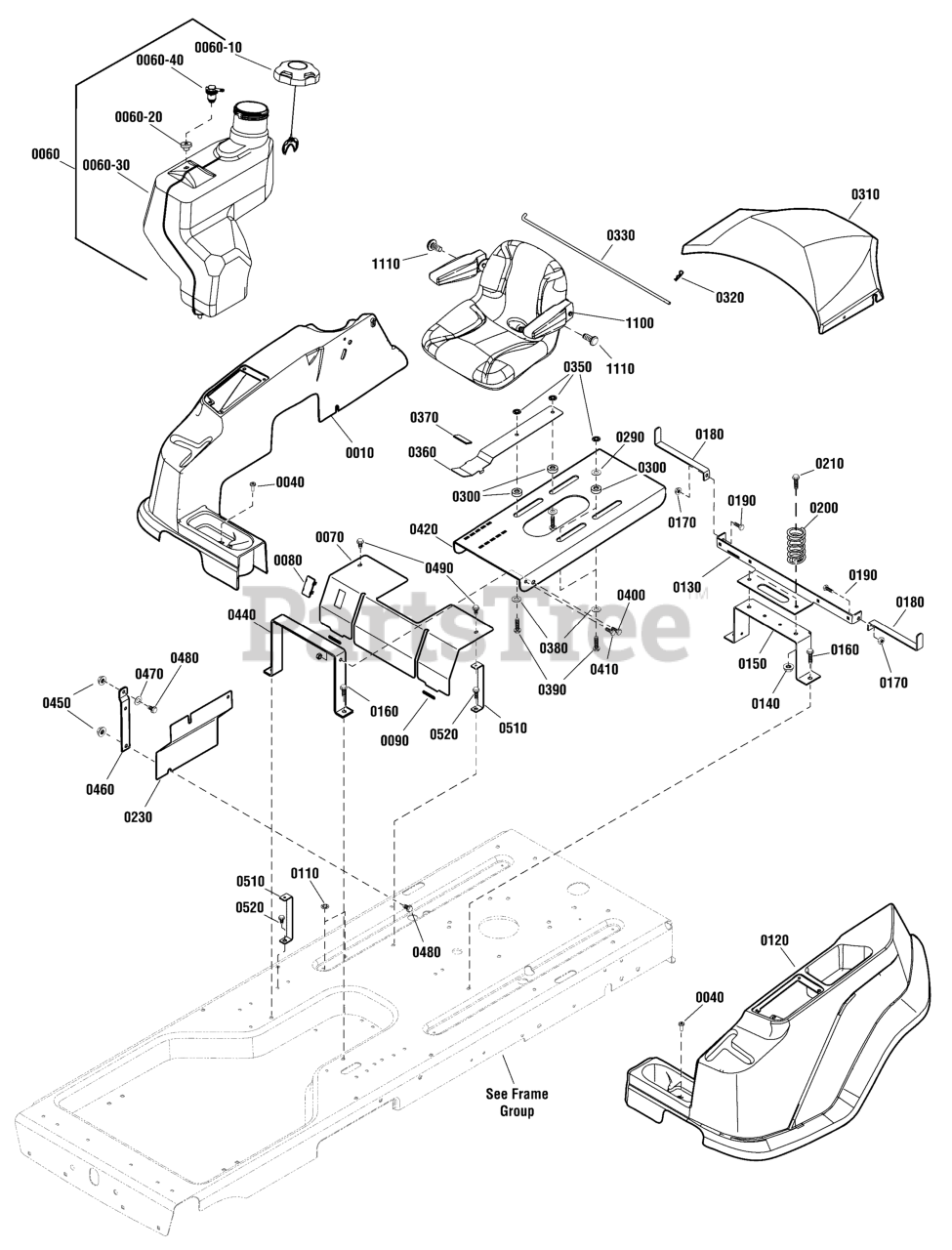

Seat, Body & Fuel Tank Group Parts Diagram

  • Title
0010

Murray 7103775YP

FENDER, RH

$347.99

$

Usually ships in 2-12 days

0

0040

Murray 7091246YP

SCREW, 1/4-20 x 3/4, Pan Head Torx
(Superseded to 770003)

$3.99

$

In Stock, Qty 12

0

0060

Murray 1753791YP

FUEL TANK ASSEMBLY

Note: (Includes Ref. Nos. 0060-10, 0060-20, 0060-30 & 0060-40)

$279.99

$

Usually ships in 2-12 days

0

0060-10

Murray 5101651SM

CAP, Fuel Tank

$30.99

$

In Stock, Qty 20+

0

0060-20

Murray 1726400SM

BUSHING, Fuel Tank, Rubber
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

0060-30

TANK, Fuel

Note: (Not a serviceable part. Order Ref. No. 0060)

$

$

Not available

0060-40

Murray 7103536YP

ELBOW ASSEMBLY, Pickup Tube
(Superseded to 1753791YP)

$279.99

$

Usually ships in 2-12 days

0

0070

Murray 7301216BZYP

COVER, Battery

$27.99

$

Usually ships in 2-12 days

0

0080

$6.99

$

In Stock, only 1 left!

0

0090

Murray 7104514YP

STRIP, Trim, 1-1/2

$3.49

$

Usually ships in 2-12 days

0

0110

Murray 703986

RETAINER, Pushnut, 3/8

$4.49

$

Usually ships in 2-12 days

0

0120

Murray 7103776YP

FENDER, LH

$302.99

$

Usually ships in 2-12 days

0

0130

Murray 7301107BMYP

BRACKET, Support, Seat & Fender

$26.99

$

Usually ships in 2-12 days

0

0140

Murray 703164

NUT, Hex Center Lock, 5/16-18, G5

$3.49

$

In Stock, Qty 17

0

0150

Murray 7043316BMYP

BRACKET, Seat Support

$19.99

$

Usually ships in 2-12 days

0

0160

Murray 703950

SCREW, Hex Washer Head, Thread Roll, 5/16-18 X 5/8

$5.49

$

In Stock, only 3 left!

0

0170

Murray 703902

NUT, Hex Lock, ESNA, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0180

Murray 7301101BMYP

BRACKET, Support, Fender

$11.99

$

Usually ships in 2-12 days

0

0190

Murray 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

Usually ships in 2-12 days

0

0200

Murray 7103425YP

SPRING, Compression, 3-5/8"

$17.99

$

Usually ships in 2-12 days

0

0210

Murray 703410

BOLT, Serrated Flange, 5/16-18 X 1.0

$4.49

$

In Stock, only 2 left!

0

0230

Murray 7301126BMYP

PLATE, Side, RH

$26.99

$

Usually ships in 2-12 days

0

0290

Murray 7011763SM

WASHER, Fender, 5/16

$4.49

$

In Stock, only 4 left!

0

0300

Murray 7103920YP

SPACER, Seat, Adjustable

$3.99

$

Usually ships in 2-12 days

0

0310

Murray 7103777YP

COVER, Engine

$68.99

$

Usually ships in 2-12 days

0

0320

Murray 1722460SM

PIN, Quick, 1-3/16"
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0330

Murray 7103998YP

ROD, Pivot, Hood

$47.99

$

Usually ships in 2-12 days

0

0350

Murray 703297

RETAINER, Bolt, 5/16

$3.99

$

In Stock, Qty 20+

0

0360

Murray 7103673BMYP

LATCH, Seat

$18.99

$

Usually ships in 2-12 days

0

0370

Murray 885215YP

COVER, Lever, Seat Adjustment

$4.99

$

Usually ships in 2-12 days

0

0380

Murray 703298

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

0390

Murray 1933689SM

SCREW, 5/16-18 x 1-1/2, Hex Flange, Whiz Lock

$4.49

$

Usually ships in 2-12 days

0

0400

Murray 703839

BOLT, Shoulder, 5/16-18 x 3/4" (1/2" Thread Length)

$5.49

$

In Stock, only 2 left!

0

0410

Murray 7091198SM

SCREW, Hex Washer Head, Self Tap, 3/8-16 x 5/8

$4.49

$

Usually ships in 2-12 days

0

0420

Murray 7301095BMYP

PLATE, Seat, Adjustable

$53.99

$

Usually ships in 2-12 days

0

0440

Murray 7301070BMYP

BRACKET, Seat

$20.99

$

Usually ships in 2-12 days

0

0450

Murray 703333

NUT, Hex Flange, Whiz Lock, 3/8-16

$4.99

$

In Stock, Qty 20+

0

0460

Murray 7301110BMYP

BRACKET, Support, Fuel Tank

$11.99

$

Usually ships in 2-12 days

0

0470

Murray 704015

WASHER, Flat, 5/16

$4.49

$

Usually ships in 2-12 days

0

0480

Murray 703237

CAPSCREW, Hex Head, 3/8-16 x 3/4, G5

$4.99

$

Usually ships in 2-12 days

0

0490

Murray 704130

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2

$3.99

$

In Stock, only 3 left!

0

0510

Murray 7301217BMYP

BRACKET, Cover, Battery

$

$

Not available

0520

Murray 025X15MA

SCREW, Hex Washer Head, Thread Rolling, 3/8-16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 3 left!

0

1100

Murray 1754218YP

SEAT, 15" Back, with Armrests

$552.99

$

Usually ships in 2-12 days

0

1110

Murray 1761409YP

KNOB, Adjuster

$18.99

$

Usually ships in 2-12 days

0
