EZT 2042 (2691041-01) - Murray 42" Zero-Turn Mower, 20hp, Canada (2012) Park Brake Group - RZT Parts Diagram

42" Zero-Turn Mower, 20hp, Canada

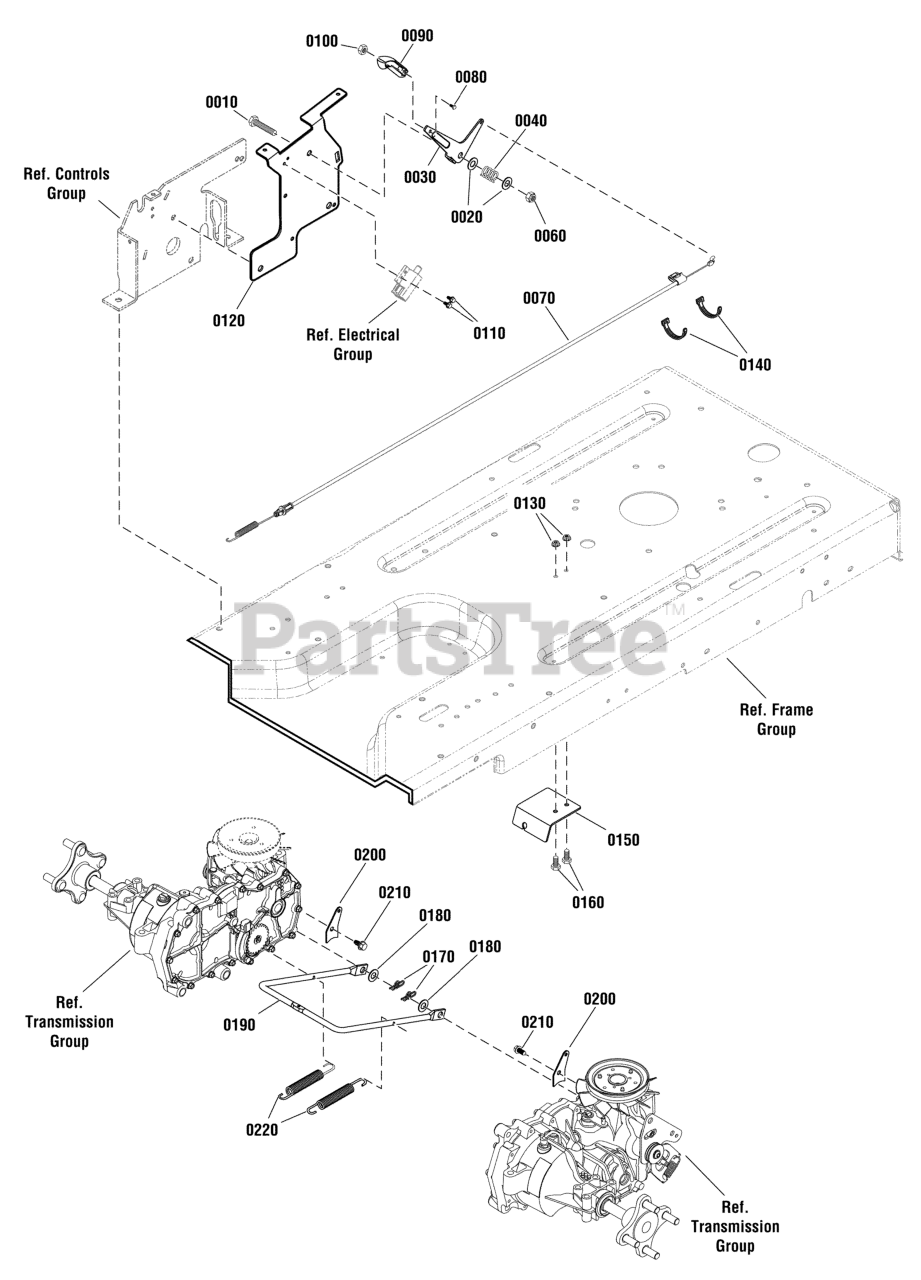

Park Brake Group - RZT Parts Diagram

  • Title
0010

Murray 7091560YP

CAPSCREW, Hex Head, 3/8-16 x 2-1/4, G5
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

0020

Murray 7090517SM

WASHER, Flat, .438 ID x 1 OD

$4.49

$

In Stock, Qty 8

0

0030

Murray 7301074YP

LEVER, Brake, Park

$10.99

$

Usually ships in 2-12 days

0

0040

Murray 7028036YP

SPRING, Friction Pack

$6.99

$

Usually ships in 2-12 days

0

0060

Murray 7091299SM

NUT, Hex, Nylock, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

0070

Murray 7103792YP

CABLE, Park Brake

$33.99

$

In Stock, only 2 left!

0

0080

Murray 7091017YP

SCREW, Fillister Head, Cross Recessed, #8-32 x 3/8, G2

$3.99

$

In Stock, only 4 left!

0

0090

Murray 7023655YP

LEVER, Throttle Control

$

$

Not available

0100

Murray 7091018YP

NUT, Hex, #8C, G2B
(Superseded to 703460)

$3.99

$

In Stock, Qty 9

0

0110

Murray 7090913SM

CAPSCREW, Hex Head Flange Taptite, Torx, #10C x 1/2
(Superseded to 704060)

$3.49

$

In Stock, Qty 9

0

0120

Murray 7090122YP

WASHER, Flat, SAE, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

0130

Murray 1960294SM

NUT, Hex Flange, Whiz Lock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

0140

Murray 7012080SM

CABLE TIE, 7"
(Superseded to 703586)

$4.99

$

Usually ships in 2-12 days

0

0150

Murray 7301086BMYP

BRACKET, Cable, Parking Brake

$7.49

$

Usually ships in 2-12 days

0

0160

Murray 7090072SM

CAPSCREW, Hex Head, 1/4-20 x 5/8, G5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

0170

Murray 7091594SM

PIN, Cotter, Self Locking, 1/2

$2.99

$

In Stock, only 2 left!

0

0180

Murray 7090122YP

WASHER, Flat, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

0190

Murray 7103436YP

ROD, Park Brake

$48.99

$

Usually ships in 2-12 days

0

0200

Murray 7301092AYP

TAB, Spring, Park Brake

$6.49

$

Usually ships in 2-12 days

0

0210

Murray 1925003SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

0220

Murray 2159106SM

SPRING, Extension, 4-1/4"
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0
