EZT 2042 (2691041-01) - Murray 42" Zero-Turn Mower, 20hp, Canada (2012) Lift Group Parts Diagram

42" Zero-Turn Mower, 20hp, Canada

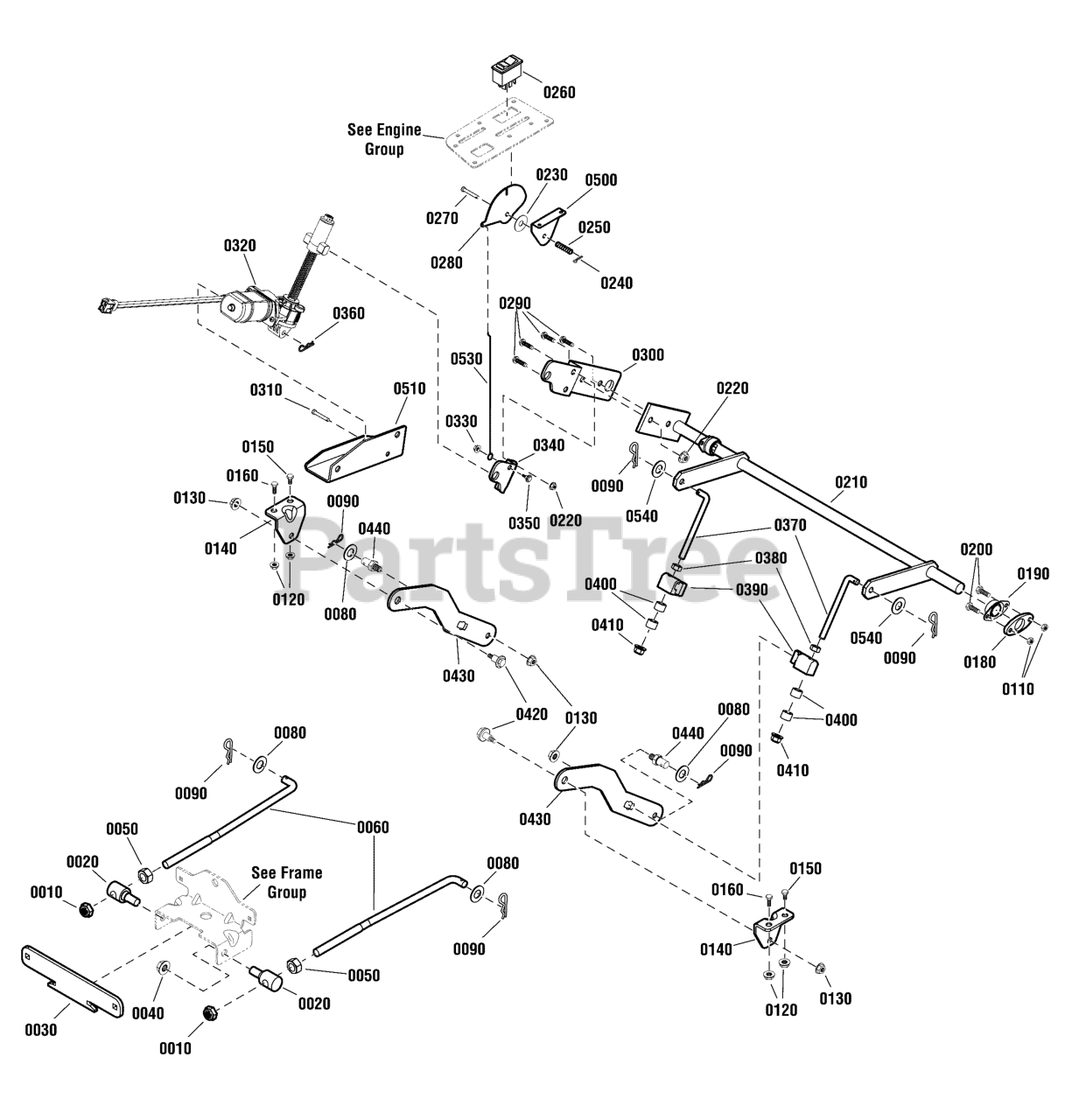

Lift Group Parts Diagram

  • Title

0010

Murray 1960379SM

NUT, Hex Lock, 1/2-13

$4.99

$

In Stock, Qty 18

0

0020

Murray 1737417YP

TRUNNION, Unthreaded

$21.99

$

In Stock, only 2 left!

0

0030

Murray 7301097BMYP

SUPPORT, Hanger (46/52)

$10.99

$

Usually ships in 2-12 days

0

0040

Murray 1930644SM

NUT, Hex Flange, Two-Way Lock, 1/2-13

$3.49

$

In Stock, Qty 6

0

0050

Murray 1913744SM

NUT, Hex Jam, 1/2-13

$4.99

$

In Stock, Qty 19

0

0060

Murray 1736081YP

ROD, Front Bail (1/2-13 thread) 46, 52" MWR

$12.99

$

Usually ships in 2-12 days

0

0080

Murray 703853

WASHER, 1/2

$4.99

$

In Stock, Qty 20+

0

0090

Murray 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0110

Murray 703954

NUT, 1/4-20 Hex Center Lock, GR 5
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0120

Murray 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0130

Murray 703893

NUT, Hex, Flange, Two Way Lock, 3/8-16

$6.99

$

In Stock, Qty 20+

0

0140

Murray 7300028BMYP

BRACKET, Deck Hanger

$14.99

$

Usually ships in 2-12 days

0

0150

Murray 703823

BOLT, 5/16-18 x 5/8" Hex Flange lock, GR 5, YZ

$3.99

$

In Stock, Qty 5

0

0160

Murray 703585

CAPSCREW, Hex Head, 5/16-18 x 1

$4.99

$

Usually ships in 2-12 days

0

0180

Murray 7301125BMYP

SPACER, Bearing, .25"

$12.99

$

In Stock, only 2 left!

0

0190

Murray 7026196SM

BEARING, Flange, .75 ID PM

$7.49

$

In Stock, only 2 left!

0

0200

Murray 7091495SM

SCREW, 1/4-20 x 3/4" Hex Head Cap, GR 5 YZ
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

0210

Murray 1757866BMYP

DECK LIFT ASSEMBLY

Note: (Use after serial Nos. 2016328880)

$193.99

$

In Stock, only 1 left!

0

0210

Murray 7400011BMYP

DECK LIFT ASSEMBLY
(Superseded to 1757866BMYP)

Note: (Use before serial Nos. 2016328880)

$193.99

$

In Stock, only 1 left!

0

0220

Murray 703333

NUT, 3/8-16 Hex Flange lock, YZ

$4.99

$

In Stock, Qty 20+

0

0230

Murray 7023649YP

WASHER, 5/16" Nylon

$4.49

$

In Stock, only 2 left!

0

0240

Murray 703464

COTTER PIN, .06 x 1/2", YZ

$4.49

$

In Stock, only 1 left!

0

0250

Murray 164X34MA

SPRING, Compression

$5.99

$

In Stock, Qty 14

0

0260

Murray 1734141SM

SWITCH, Rocker Electric Height-Of-Cut

$47.99

$

In Stock, Qty 19

0

0270

Murray 578309MA

CLEVIS PIN, .25 x 1.09

$5.49

$

In Stock, Qty 6

0

0280

Murray 7301119BCYP

LEVER, Indicator, Height-Of-Cut

$8.49

$

Usually ships in 2-12 days

0

0290

Murray 703407

SCREW, 3/8-16 x 1" Hex Head Cap, GR 5, YZ

$11.99

$

In Stock, Qty 7

0

0300

Murray 7301104BMYP

BRACKET, Lift, Deck, Primary

$

$

Not available

0310

Murray 1668344SM

SHEAR PIN, .248 ID x 1-3/4" Long
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0320

Murray 7103818YP

MOTOR, Actuator, Lift, Deck

$148.99

$

In Stock, Qty 13

0

0330

Murray 7091584SM

NUT, 1/4-20 Hex Flange Lock, GR 5, YZ
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

0340

Murray 7301105BMYP

BRACKET, Lift, Deck, Secondary

$15.99

$

Usually ships in 2-12 days

0

0350

Murray 009X54MA

SHOULDER BOLT, 1/4-20 x 3/8"

$5.49

$

In Stock, only 1 left!

0

0360

Murray 1722460SM

HAIRPIN, Quick, .080 Wire
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0370

Murray 1734217SM

ROD, Mower Lift (3/8-16 thread) Yellow

$14.99

$

In Stock, Qty 5

0

0380

Murray 703577

NUT, Hex, 3/8-16

$4.49

$

In Stock, Qty 20+

0

0390

Murray 1731894SM

TRUNNION, Powdered Metal, Yellow, Regent

$9.99

$

In Stock, only 3 left!

0

0400

Murray 1666294SM

SPACER, .385 ID x .6697 OD x .455 Long, PM YEL

$4.99

$

In Stock, Qty 20+

0

0410

Murray 1960687SM

NUT, 3/8-16 Hex Flange Esna, Black
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0420

Murray 1732129SM

SHOULDER BOLT, 3/8-16 x .94, BZ

$5.99

$

Usually ships in 2-12 days

0

0430

Murray 7301098BMYP

BAR, Rear Lift

$28.99

$

In Stock, only 4 left!

0

0440

Murray 094067MA

PIN, 3/8-16 Threaded Shoulder
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

0500

Murray 7301120BMYP

BRACKET, Indicator, Height-Of-Cut

$9.99

$

Usually ships in 2-12 days

0

0510

Murray 7301103BMYP

BRACKET, Motor Mount

$14.99

$

Usually ships in 2-12 days

0

0530

Murray 7103956YP

ROD, Indicator, Height-Of-Cut

$9.99

$

In Stock, only 1 left!

0

0540

Murray 7090122YP

WASHER, 3/8" Flat (SAE)
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0
