EZT 2042 (2691041-01) - Murray 42" Zero-Turn Mower, 20hp, Canada (2012) Front Axle Group - RZT Parts Diagram

42" Zero-Turn Mower, 20hp, Canada

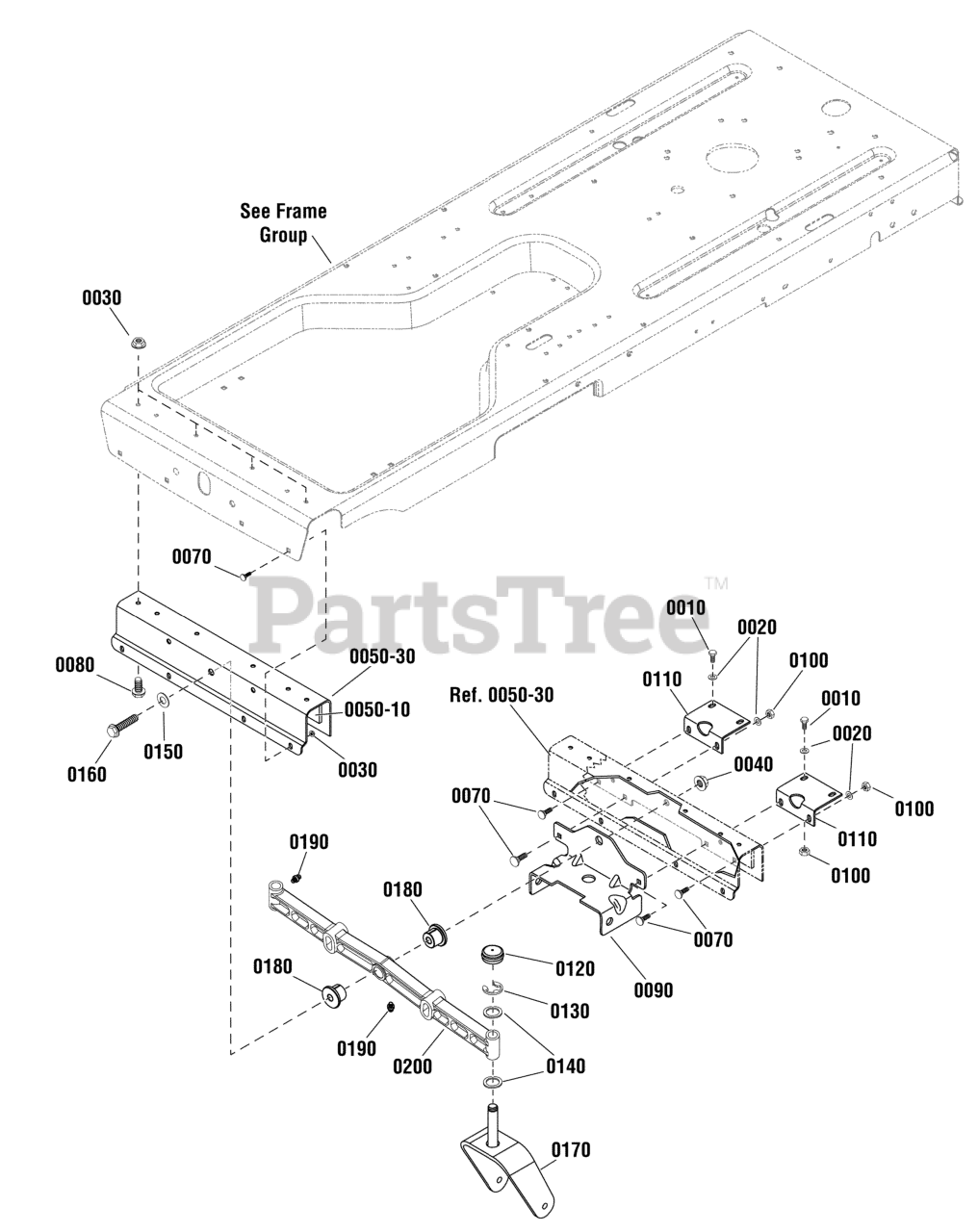

Front Axle Group - RZT Parts Diagram

  • Title
0010

Murray 7091318SM

CAPSCREW, Hex Head, 5/16-18 x 3/4, G5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

0020

Murray 7090188SM

WASHER, Flat, 5/16"
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

0030

Murray 7091601SM

NUT, Flange Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0040

Murray 1930644SM

NUT, Hex Flange, Two-Way Lock, 1/2-13

$3.49

$

In Stock, Qty 6

0

0050-10

Murray 7103773YP

PLATE, Friction, Adhesive Backed

$13.99

$

Usually ships in 2-12 days

0

0050-30

Murray 7301076BMYP

BRACKET, Axle

$39.99

$

Usually ships in 2-12 days

0

0070

Murray 1931334SM

BOLT, Carriage, Short Neck, 5/16-18 x 7/8, G5
(Superseded to 704065)

$4.49

$

In Stock, Qty 6

0

0080

Murray 7091811SM

BOLT, Hex Flange Lock, 5/16-18 x 5/8, G5
(Superseded to 703823)

$3.99

$

In Stock, Qty 5

0

0090

Murray 7301096BMYP

BRACKET, Hanger, Front

$39.99

$

Usually ships in 2-12 days

0

0100

Murray 7091706SM

NUT, Hex Top Lock, 5/16-18, GR B

$3.99

$

Usually ships in 2-12 days

0

0110

Murray 7300004BMYP

BRACKET, Axle Support

$21.99

$

In Stock, only 1 left!

0

0120

Murray 1734135SM

HUB CAP, 1.481 I.D x 5/8"

$5.99

$

In Stock, Qty 20+

0

0130

Murray 1611710SM

RING, Klipring External for .750 Dia. Shaft

$4.49

$

In Stock, Qty 20+

0

0140

Murray 1960160SM

WASHER, 0.750 ID x 1.60 OD

$4.99

$

In Stock, Qty 9

0

0150

Murray 7091587SM

WASHER, Flat, 1/2" (SAE)
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

0160

Murray 7091558SM

CAPSCREW, Hex Head, 1/2-13 x 3-1/2

$4.99

$

In Stock, only 1 left!

0

0170

Murray 1733448BMYP

CASTER YOKE & SPINDLE

$152.99

$

In Stock, only 3 left!

0

0190

Murray 7013864SM

LUBE FITTING, 3/16" Press Fit

$3.49

$

In Stock, Qty 12

0

0180

Murray 7103454YP

BUSHING, Axle Pivot

$45.99

$

In Stock, only 2 left!

0

0200

Murray 1733426ASM

AXLE, Front Iron Casting Machined ZT
(Superseded to 1733426SM)

$243.99

$

Usually ships in 2-12 days

0
