EZT 2042 (2691041-01) - Murray 42" Zero-Turn Mower, 20hp, Canada (2012) Frame Group Parts Diagram

42" Zero-Turn Mower, 20hp, Canada

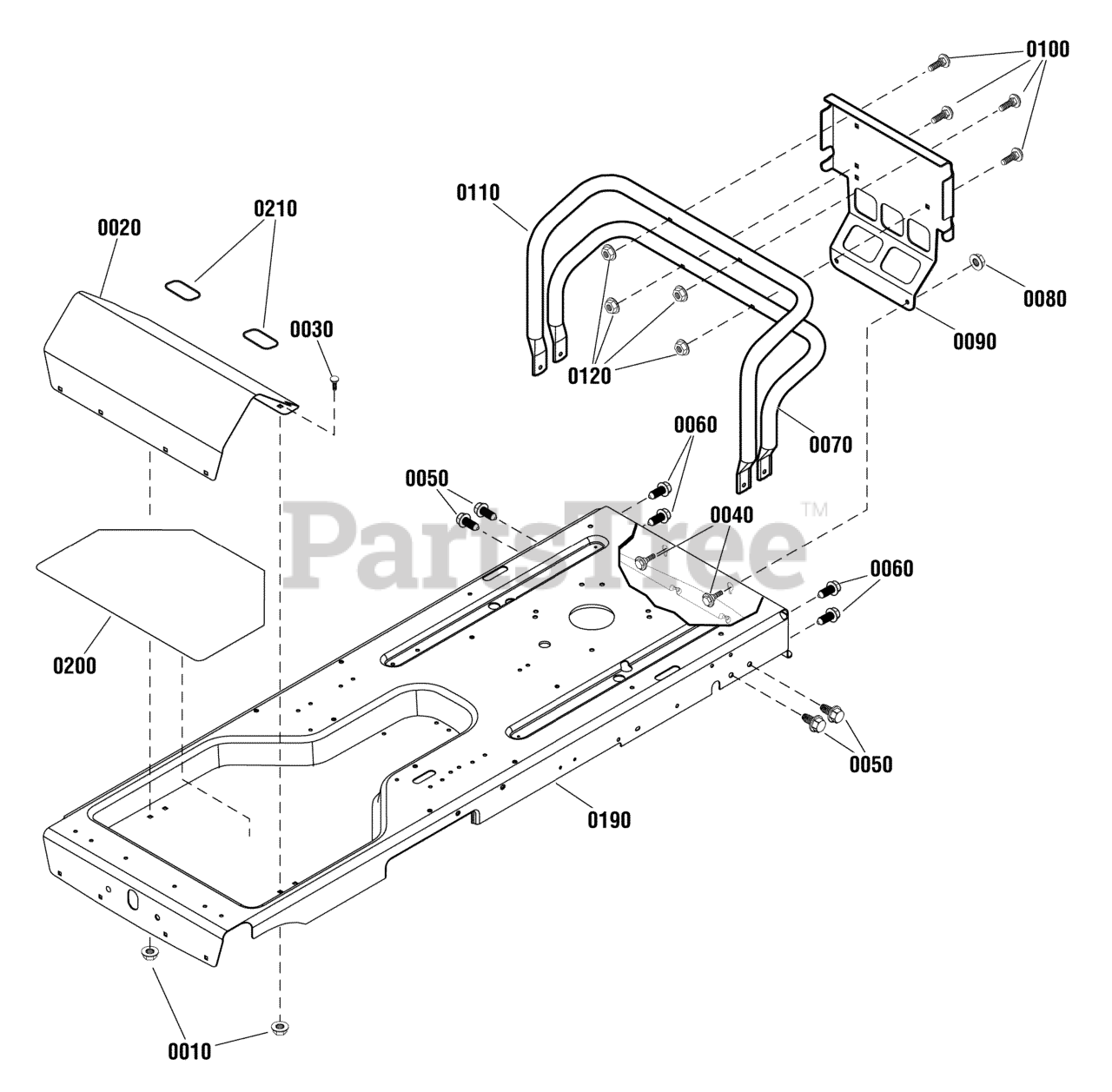

Frame Group Parts Diagram

  • Title

0010

Murray 7091601SM

NUT, Hex Flange Lock, 5/16-18, G5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0020

Murray 7300140BIYP

FOOTREST

$69.99

$

Usually ships in 2-12 days

0

0030

Murray 7090799SM

BOLT, Carriage, Short Neck, 5/16-18 x 5/8, G5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

0040

Murray 1716654SM

BOLT, Shoulder, 5/16-18 x .89 (3/4 Thread Length)

$5.49

$

In Stock, only 3 left!

0

0050

Murray 1664847SM

SCREW, Hex Washer Head, Self Tap, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0060

Murray 1664847SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0070

Murray 1753517BMYP

TUBE, Bumper, Lower

$92.99

$

In Stock, only 1 left!

0

0080

Murray 1927557SM

NUT, Hex Flange, Whiz Lock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

0090

Murray 1753572BIYP

PLATE, Brand

$86.99

$

Usually ships in 2-12 days

0

0100

Murray 1931338SM

BOLT, Carriage, Short Neck, 5/16-18 x 1-3/4, G5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

0110

Murray 7301123BMYP

TUBE, Bumper, Upper

$142.99

$

Usually ships in 2-12 days

0

0120

Murray 1960686SM

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0190

Murray 7301073BIYP

FRAME

$883.99

$

Usually ships in 2-12 days

0

0200

Murray 7103830YP

MAT, Floor Pan

$33.99

$

Usually ships in 2-12 days

0

0210

Murray 7104571YP

PAD, Foot

$17.99

$

In Stock, Qty 5

0
