EZT 2042 (2691041-01) - Murray 42" Zero-Turn Mower, 20hp, Canada (2012) Engine Group - 20HP Briggs & Stratton Parts Diagram

42" Zero-Turn Mower, 20hp, Canada

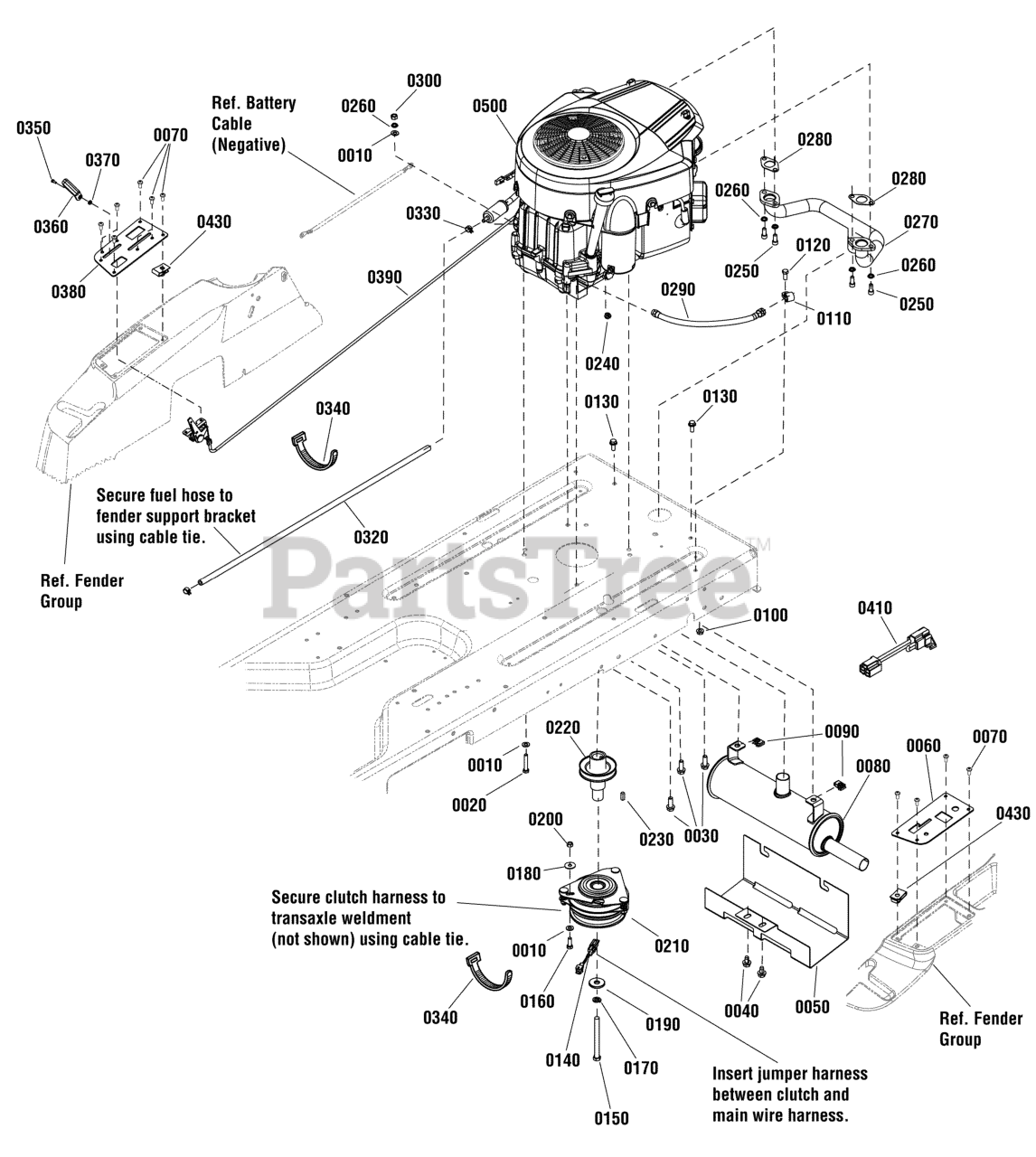

Engine Group - 20HP Briggs & Stratton Parts Diagram

  • Title

0010

Murray 7090188

WASHER, Flat, 0.34 ID x 5/8 OD
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

0020

Murray 7091908

CAPSCREW, Hex Head, 5/16-18 x 1-3/4, G5
(Superseded to 7091908YP)

$4.99

$

Usually ships in 2-12 days

0

0030

Murray 7090324

SCREW, Hex Washer Head, Self Tap, 3/8-16 x 1

$4.99

$

In Stock, only 1 left!

0

0040

Murray 7091198

SCREW, Hex Washer Head, Self Tap, 3/8-16 x 5/8
(Superseded to 7091198SM)

$4.49

$

Usually ships in 2-12 days

0

0050

Murray 7301083BM

HEATSHIELD, Muffler
(Superseded to 7301083BMYP)

$46.99

$

Usually ships in 2-12 days

0

0060

Murray 7301084BM

PANEL, Control, LH
(Superseded to 7301084BMYP)

$21.99

$

Usually ships in 2-12 days

0

0070

Murray 7090999

SCREW, Pan Head Torx, 1/4-20 x 5/8
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

0080

Murray 7103411

MUFFLER
(Superseded to 7103411YP)

$231.99

$

Usually ships in 2-12 days

0

0090

Murray 1935255

NUT, Speed, Lug Type, 5/16-18
(Superseded to 1935255SM)

$3.49

$

In Stock, only 4 left!

0

0100

Murray 7091601

NUT, Hex Flange Lock, 5/16-18, G5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0110

Murray 7900020

CLIP, Harness, 5/8
(Superseded to 7900020SM)

$4.49

$

Usually ships in 2-12 days

0

0120

Murray 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4, G5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

0130

Murray 1930591

SCREW, Hex Flange, Whiz Lock, 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 14

0

0140

Murray 1737462

HARNESS, Jumper, 4"
(Superseded to 1737462YP)

$9.99

$

In Stock, only 1 left!

0

0150

Murray 7092130

CAPSCREW, Hex Head, 7/16-20 x 4-1/2, G5
(Superseded to 7092130SM)

$

$

Not available

0160

Murray 7091904

CAPSCREW, Hex Head, 5/16-18 x 7/8, G5
(Superseded to 703408)

$4.99

$

In Stock, Qty 14

0

0170

Murray 7091301

WASHER, Spring Lock, .44 ID 5X.3/4 OD
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

0180

Murray 7011763

WASHER, Fender, 5/16
(Superseded to 7011763SM)

$4.49

$

In Stock, only 1 left!

0

0190

Murray 7029138

WASHER, Flat, .468 ID x 1-1/2 OD
(Superseded to 704053)

$9.99

$

Usually ships in 2-12 days

0

0200

Murray 7091575

NUT, Hex Center Lock, 5/16-18, G5
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

0210

Murray 1717664

CLUTCH, Electric, Ogura
(Superseded to 1757359)

$290.99

$

Usually ships in 2-12 days

0

0220

Murray 7043343

PULLEY, Engine
(Superseded to 7043343SM)

$114.99

$

In Stock, only 1 left!

0

0230

Murray 7016755

KEY, Square, 1/4 x 3/4
(Superseded to 7016755YP)

$4.99

$

Usually ships in 2-12 days

0

0240

Murray 7091584

NUT, Hex Flange Lock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 9

0

0250

Murray 7091738

CAPSCREW, Socket Head, 5/16-18 x 3/4, G8
(Superseded to 7091738SM)

$4.99

$

In Stock, Qty 14

0

0260

Murray 7091315

WASHER, Spring Lock, 5/16 ID x 1/2 OD
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0270

Murray 7103414

MANIFOLD
(Superseded to 7103414YP)

$96.99

$

In Stock, only 1 left!

0

0280

Murray 1731214

GASKET, Exhaust
(Superseded to 1731214SM)

$4.99

$

Usually ships in 2-12 days

0

0290

Murray 1726498

HOSE, Oil Drain
(Superseded to 1726498SM)

$26.99

$

Usually ships in 2-12 days

0

0300

Murray 7091511SM

NUT, Hex, 5/16-18, G5

$3.49

$

In Stock, Qty 20+

0

0320

Murray 7200140

HOSE, Fuel, 1/4" x 32"
(Superseded to 7200140YP)

$14.99

$

In Stock, only 1 left!

0

0330

Murray 7029900

CLAMP, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

0340

Murray 7012080

CABLE TIE, 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

0350

Murray 7091017

SCREW, Fillister Head, Cross Recessed, #8-32 x 3/8, G2
(Superseded to 7091017YP)

$3.99

$

In Stock, only 4 left!

0

0360

Murray 7103888

KNOB, Throttle, Red
(Superseded to 7103888YP)

$8.49

$

Usually ships in 2-12 days

0

0370

Murray 7091018

NUT, Hex, #8C, G2B
(Superseded to 7091018YP)

$3.99

$

In Stock, Qty 9

0

0380

Murray 7301093BM

PANEL, Control, RH
(Superseded to 7301093BMYP)

$20.99

$

Usually ships in 2-12 days

0

0390

Murray 7103771

THROTTLE ASSEMBLY
(Superseded to 7103771YP)

$40.99

$

Usually ships in 2-12 days

0

0410

Murray 1734025

WIRES & CONNECTORS ASSEMBLY, Jumper
(Superseded to 1734025SM)

$14.99

$

In Stock, only 1 left!

0

0430

Murray 7023295

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

0500

Murray 406777-0172-B1

* ENGINE, 20HP Briggs & Stratton, Intek

Note: (Engine Model: 406777-0172-B1)

$

$

Not available

0500

Murray 406777-0173-B1

* ENGINE, 20HP Briggs & Stratton, Intek

Note: (Engine Model: 406777-0173-B1)

$

$

Not available
