EZT 2042 (2691041-01) - Murray 42" Zero-Turn Mower, 20hp, Canada (2012) 42" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

42" Zero-Turn Mower, 20hp, Canada

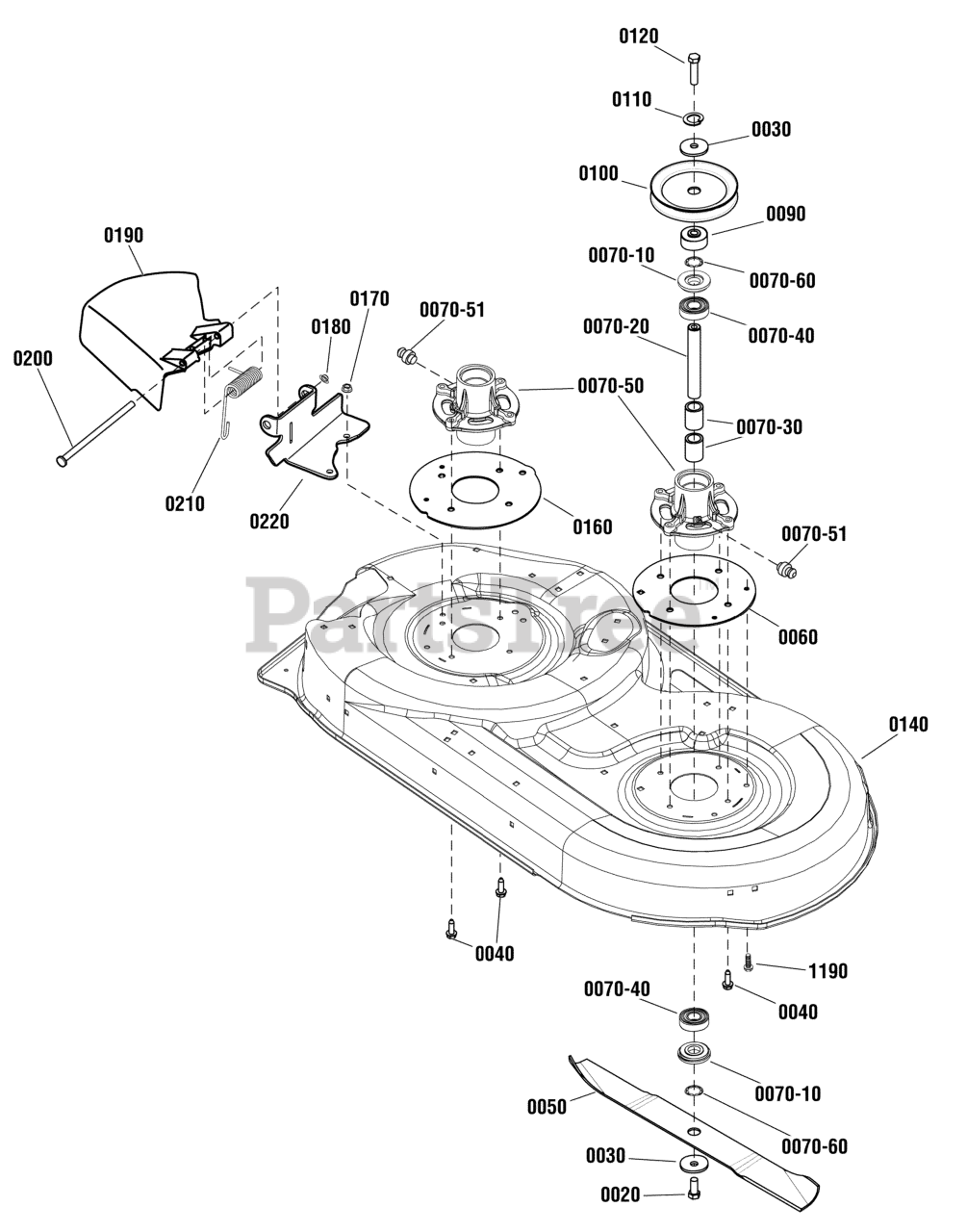

42" Mower Deck - Housing, Arbors & Blades Group Parts Diagram

  • Title
0020

Murray 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 12

0

0030

Murray 1656916SM

WASHER, Spring, 0.475ID x 1-3/4 OD

$7.49

$

In Stock, Qty 20+

0

0040

Murray 7091524YP

SCREW, Hex Washer Head, Self Tap, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

0050

Murray 1752100YP

BLADE, 42"
(Superseded to 1752100AYP)

$29.99

$

Usually ships in 2-12 days

0

0060

Murray 1750458BZYP

PLATE, Spindle, LH
(Superseded to 1750458BMYP)

$28.99

$

In Stock, only 2 left!

0

0070-10

Murray 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, only 2 left!

0

0070-20

Murray 1735326YP

SHAFT, Spindle
(Superseded to 1760276YP)

$27.99

$

In Stock, only 4 left!

0

0070-30

Murray 1735328YP

SPACER, Bearing

$6.49

$

In Stock, only 3 left!

0

0070-40

Murray 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0070-50

Murray 1735573YP

HOUSING, Spindle, Cast Aluminum
(Superseded to 84003654)

$43.99

$

In Stock, Qty 8

0

0070-51

Murray 1704314SM

FITTING, Zerk
(Superseded to 703907)

Note: (Included with Ref. No 0070-50)

$4.99

$

In Stock, Qty 20+

0

0070-60

Murray 1960766YP

RING, Self Lock

$4.49

$

In Stock, Qty 20+

0

0090

Murray 1737457YP

SPACER, Pulley

$10.99

$

In Stock, only 1 left!

0

0100

Murray 1737835YP

PULLEY, V Deep Groove

$20.99

$

In Stock, only 1 left!

0

0110

Murray 1918199SM

LOCKWASHER, Spring, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

0120

Murray 1923027SM

CAPSCREW, Hex Head, 7/16-14 x 1-3/4, G5
(Superseded to 703171)

$3.99

$

In Stock, Qty 6

0

0140

Murray 1736504BIYP

HOUSING, Mower, 42"
(Superseded to 1736504ZYP)

$506.99

$

In Stock, only 1 left!

0

0160

Murray 1750457BZYP

PLATE, Spindle, RH
(Superseded to 1750457BMYP)

$28.99

$

In Stock, only 1 left!

0

0170

Murray 1927557SM

NUT, Hex Flange, Whiz Lock, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

0180

Murray 1960519SM

NUT, Push, 1/2
(Superseded to 703179)

$3.49

$

In Stock, Qty 20+

0

0190

Murray 7104733YP

CHUTE, Discharge

$87.99

$

In Stock, Qty 19

0

0200

Murray 7104640YP

ROD, Pivot, Discharge Chute

$28.99

$

In Stock, only 1 left!

0

0210

Murray 7035813SM

SPRING, Torsion

$24.99

$

In Stock, only 1 left!

0

0220

Murray 7301176BZYP

BRACKET, Hinge

$

$

Not available

1190

Murray 7091524YP

SCREW, Hex Washer Head, Self Tap, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0
