EZT 2042 (2691041-01) - Murray 42" Zero-Turn Mower, 20hp, Canada (2012) 42" Mower Deck - Clutch & Support Group Parts Diagram

42" Zero-Turn Mower, 20hp, Canada

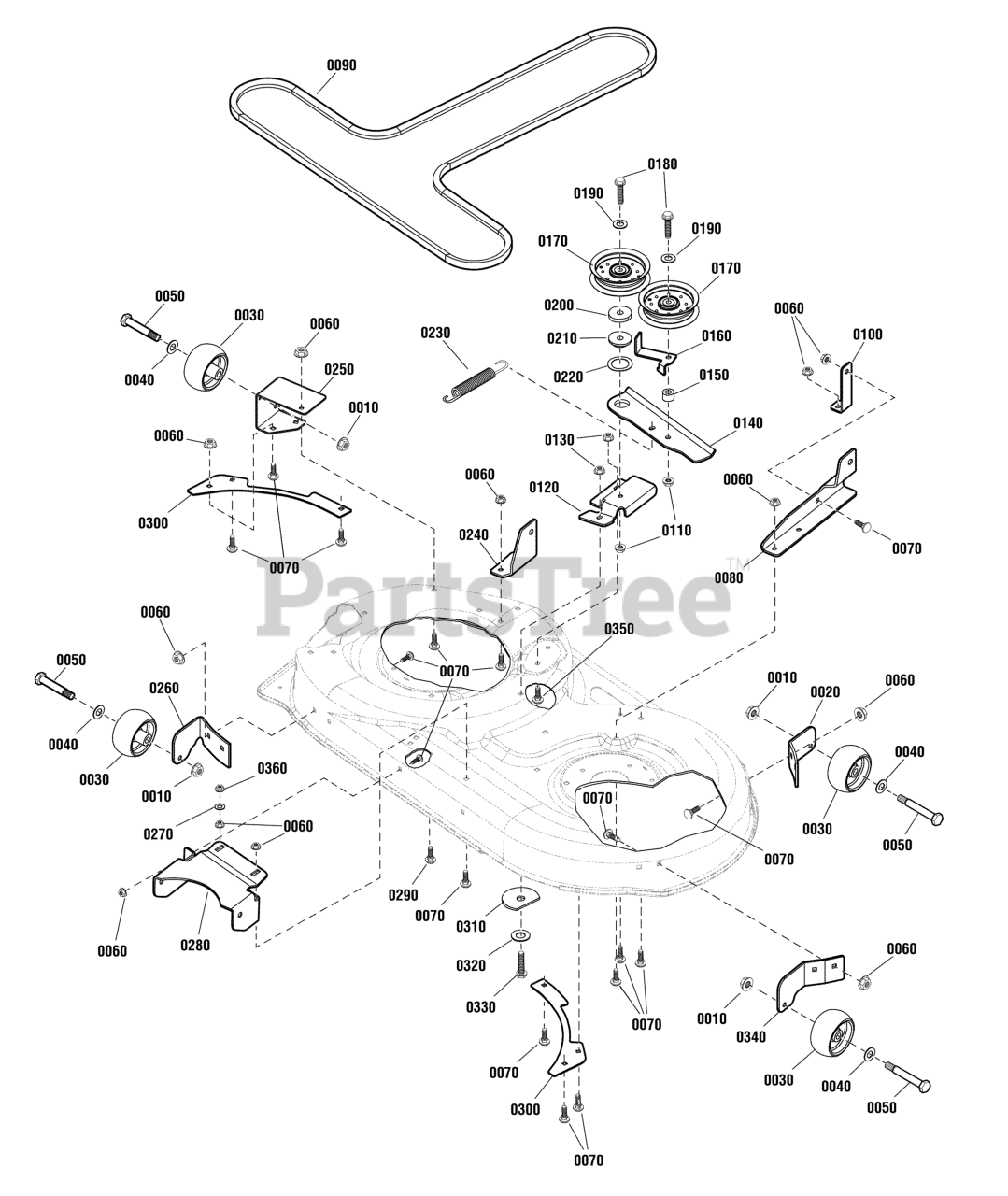

42" Mower Deck - Clutch & Support Group Parts Diagram

  • Title

0010

Murray 703158

NUT, 3/8-16 Hex Flange Esna, Black

$3.49

$

Usually ships in 2-12 days

0

0020

Murray 1731403BMYP

SUPPORT, Gage Wheel, LH

$

$

Not available

0030

Murray 1714760SM

WHEEL, Gage

$6.49

$

In Stock, Qty 20+

0

0040

Murray 703853

WASHER, 1/2

$4.99

$

In Stock, Qty 20+

0

0050

Murray 2108765SM

SHOULDER BOLT, 3/8-16 Thread

$6.49

$

In Stock, Qty 20+

0

0060

Murray 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0070

Murray 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 16

0

0080

Murray 7301165BZYP

BRACKET, Support, Deck, Rear LH

Note: (Use before serial Nos. 2016328880)

$31.99

$

Usually ships in 2-12 days

0

0080

Murray 1753881BMYP

BRACKET, Support, Deck, Rear LH

Note: (Use after serial Nos. 2016328880)

$51.99

$

Usually ships in 2-12 days

0

0090

Murray 1732956SM

V-BELT, HA 118.00 LG A-Wedge Aramid

$75.99

$

In Stock, Qty 7

0

0100

Murray 1733577BMYP

SUPPORT, Brace

$24.99

$

Usually ships in 2-12 days

0

0110

Murray 703333

NUT, 3/8-16 Hex Flange Lock, GR F, BZ

$4.99

$

In Stock, Qty 20+

0

0120

Murray 7300569BMYP

BRACKET, Idler, 42" Deck

$

$

Not available

0130

Murray 1927557SM

NUT, 5/16-18 Hex Flange Lock, Large, Black

$4.99

$

Usually ships in 2-12 days

0

0140

Murray 1734243BMYP

ARM, Idler

$

$

Not available

0150

Murray 7016719YP

SPACER, .750 OD x.390 ID x .50 Long

$7.49

$

Usually ships in 2-12 days

0

0160

Murray 7301201BZYP

BELT GUIDE, Idler, 42" deck

$17.99

$

Usually ships in 2-12 days

0

0170

Murray 1736540YP

PULLEY, Idler

$35.99

$

In Stock, only 3 left!

0

0180

Murray 703872

CAPSCREW, Hex Head, 3/8-16 X 2 1/4

$4.99

$

In Stock, Qty 20+

0

0190

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 4 left!

0

0200

Murray 1960534SM

WASHER, 3/8" Flat (0.41 ID x 1.50 OD x .25 Thick) Black

$

$

Not available

0210

Murray 1714255SM

SPACER, .406 ID x 1.50 OD x .350 Thick, PM

$6.49

$

In Stock, Qty 17

0

0220

Murray 7031079YP

WASHER, Thrust

$6.99

$

In Stock, Qty 20+

0

0230

Murray 1733844SM

SPRING, Extension

$22.99

$

Usually ships in 2-12 days

0

0240

Murray 7301172BZYP

BRACKET, Support, Deck, Rear, RH

Note: (Use before serial Nos. 2016328880)

$24.99

$

Usually ships in 2-12 days

0

0240

Murray 1753882BMYP

BRACKET, Support, Deck, Rear, RH

Note: (Use after serial Nos. 2016328880)

$31.99

$

Usually ships in 2-12 days

0

0250

Murray 7301171BMYP

BRACKET, Gage Wheel, Rear, RH, 42"

$30.99

$

Usually ships in 2-12 days

0

0260

Murray 1731402BMYP

SUPPORT, Gage Wheel, RH

$

$

Not available

0270

Murray 703298

WASHER, 5/16

$4.49

$

In Stock, only 2 left!

0

0280

Murray 7301170BMYP

BRACKET, Hanger, Front, 42"

$

$

Not available

0290

Murray 703175

BOLT, 5/16-18 x 1-3/4" Round Head Short Square Neck, GR 5

$3.99

$

In Stock, only 2 left!

0

0300

Murray 092426E701MA

PLATE, Rear

$10.99

$

In Stock, only 1 left!

0

0310

Murray 7091775SM

WASHER, Flat, Special, .531 x 2.5 x .135, YZ

$7.49

$

Usually ships in 2-12 days

0

0320

Murray 703878

WASHER, Flat, 13/32 x 7/8 x .083

$3.99

$

In Stock, Qty 20+

0

0330

Murray 703410

BOLT, Serrated Flange, 5/16-18 X 1.0

$4.49

$

In Stock, only 2 left!

0

0340

Murray 1732258BMYP

BRACKET, Gage Wheel, Front, LH

$29.99

$

In Stock, Qty 8

0

0350

Murray 704065

BOLT, Carriage Short Neck, 5/16-18 X 7/8

$4.49

$

In Stock, Qty 5

0

0360

Murray 704061

NUT, 5/16-18 Hex Flange Two-Way Lk Ga

$3.99

$

In Stock, Qty 16

0
