EZM 2042 (7800490) - Murray 42" Zero-Turn Mower, 20hp Briggs & Stratton (2009) Electrical Group (7501166) Parts Diagram

42" Zero-Turn Mower, 20hp Briggs & Stratton

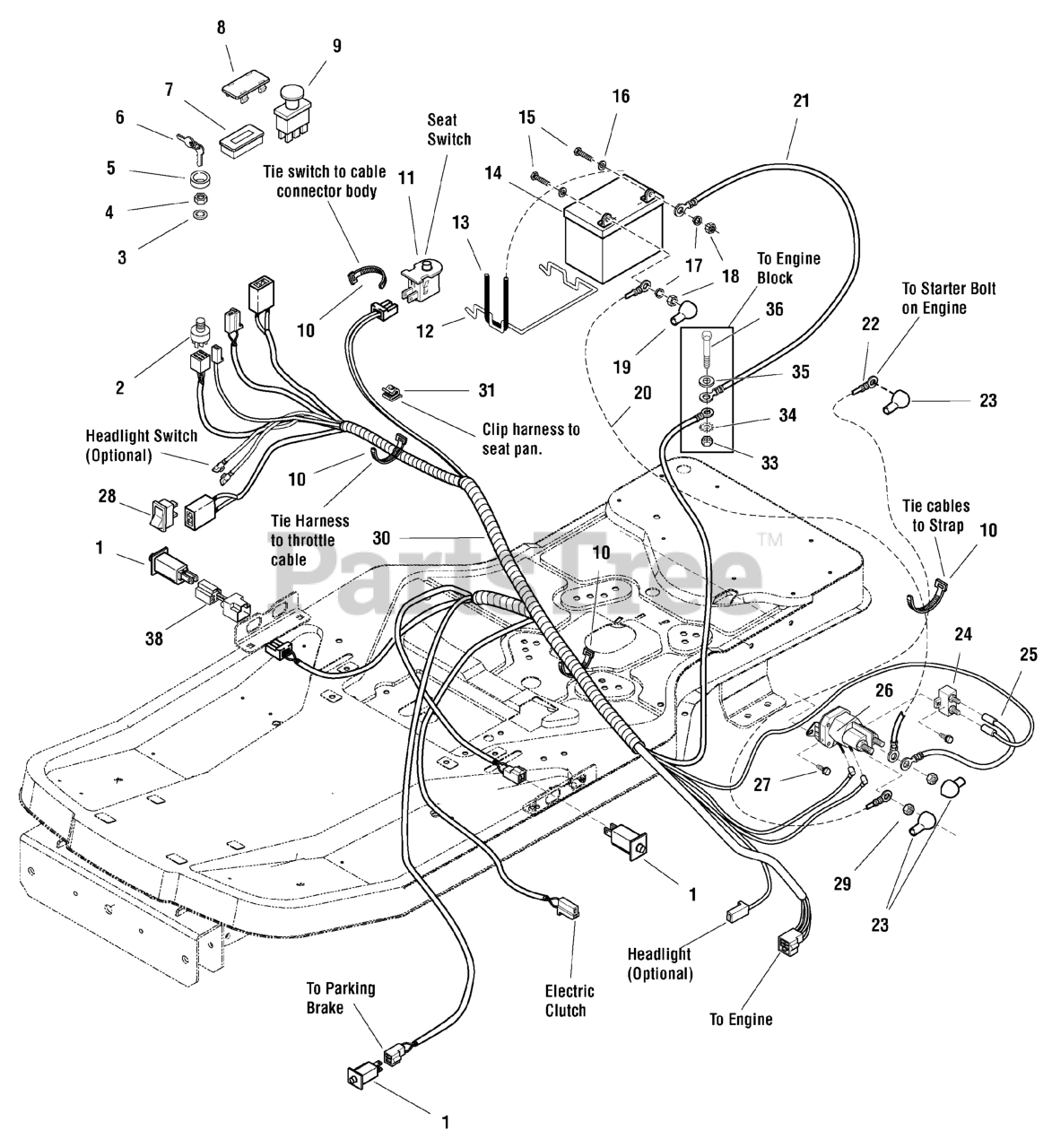

Electrical Group (7501166) Parts Diagram

  • Title

1

Murray 7022886YP

SWITCH, Push Button

$14.99

$

In Stock, Qty 20+

0

2

Murray 1686734SM

SWITCH ASSEMBLY, Ignition, 5/8-32 6 Pin Indak

$32.99

$

In Stock, Qty 20+

0

3

Murray 1960547SM

LOCKWASHER, Internal Tooth, 5/8 Thin

$4.49

$

In Stock, only 3 left!

0

4

Murray 1717549SM

NUT, Hex Flange, 5/8-32 IGN SW Die Cast
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

5

Murray 1717550SM

COVER, Ignition Switch
(Superseded to 847150)

$8.49

$

In Stock, Qty 16

0

6

Murray 1717163SM

KEYS

$8.99

$

In Stock, Qty 20+

0

7

Murray 1731185SM

HOUR METER, No Alarms

$60.99

$

In Stock, only 2 left!

0

8

Murray 1722611SM

PLUG, Hole

$6.99

$

In Stock, only 1 left!

0

9

Murray 1722887SM

SWITCH, PTO, Push/Pull

$33.99

$

In Stock, Qty 20+

0

10

Murray 1701011SM

TIE, Self Locking, .184 WD 7.31 LG

$5.49

$

In Stock, only 2 left!

0

11

Murray 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

In Stock, Qty 20+

0

12

Murray 1667805SM

BRACE, Battery, .19 DIA Wire

$

$

Not available

13

Murray 1665872SM

STRAP, Black Rubber, .19 SQ 7.88 OD Battery

$11.99

$

In Stock, Qty 7

0

14

Murray 1685215SM

BATTERY, 12 Volt 6 Cell 230 CCA

$

$

Not available

15

Murray 2823341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4, G5
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

16

Murray 2821319SM

WASHER, 1/4, .27 ID x .62 OD x .05 THK
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

17

Murray 2816964SM

LOCKWASHER, Spring, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

18

Murray 2816622SM

NUT, Hex, 1/4-20 NC-2B
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

19

Murray 1677296SM

BOOT, Insulator, Red PVC Warning

$6.49

$

In Stock, Qty 11

0

20

Murray 1716549SM

CABLE, # 6 x 10 LG, Red Two-Ring Terminals
(Superseded to 1752685YP)

$11.99

$

In Stock, only 1 left!

0

21

Murray 1713163SM

CABLE, # 6 X 26 LG, Two-Ring Terminals

$24.99

$

In Stock, only 2 left!

0

22

Murray 1727668SM

CABLE, # 6 x 15 LG, Two-Ring Terminals

$11.99

$

Usually ships in 2-12 days

0

23

Murray 1724588SM

COVER, Terminal Red PVC

$4.99

$

Usually ships in 2-12 days

0

24

Murray 1665238SM

BREAKER, Circuit, 12 Volt 20 AMP

$14.99

$

In Stock, Qty 20+

0

25

Murray 1665237SM

WIRE, 12 Gauge, 7.9 LG

$11.99

$

In Stock, Qty 7

0

26

Murray 7075622SM

SOLENOID, Two Terminals, Trombetta
(Superseded to 1755382YP)

$29.99

$

In Stock, Qty 20+

0

27

Murray 1925003SM

SCREW, Hex Washer Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

28

Murray 1734141SM

SWITCH, Electric Height of Cut

$47.99

$

In Stock, Qty 20+

0

29

Murray 2860750SM

NUT, Hex Keps, 5/16-24

$2.99

$

Usually ships in 2-12 days

0

30

Murray 7103103YP

HARNESS, Wiring

$170.99

$

Usually ships in 2-12 days

0

31

Murray 2172434SM

CABLE, Clip

$4.99

$

Usually ships in 2-12 days

0

33

Murray 1931277SM

NUT, Hex Whiz Lock Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

34

Murray 2820427SM

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

35

Murray 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 8

0

36

Murray 7027174SM

CAPSCREW, Hex Head, 5/16-18 x 2, G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

38

Murray 1734025SM

WIRING ASSEMBLY, Jumper All Conditions Shutdown

$14.99

$

In Stock, only 1 left!

0
