EZM 2042 (7800490) - Murray 42" Zero-Turn Mower, 20hp Briggs & Stratton (2009) 42" Mower Deck - Housing & Arbor Group, Export (7501262) Parts Diagram

42" Zero-Turn Mower, 20hp Briggs & Stratton

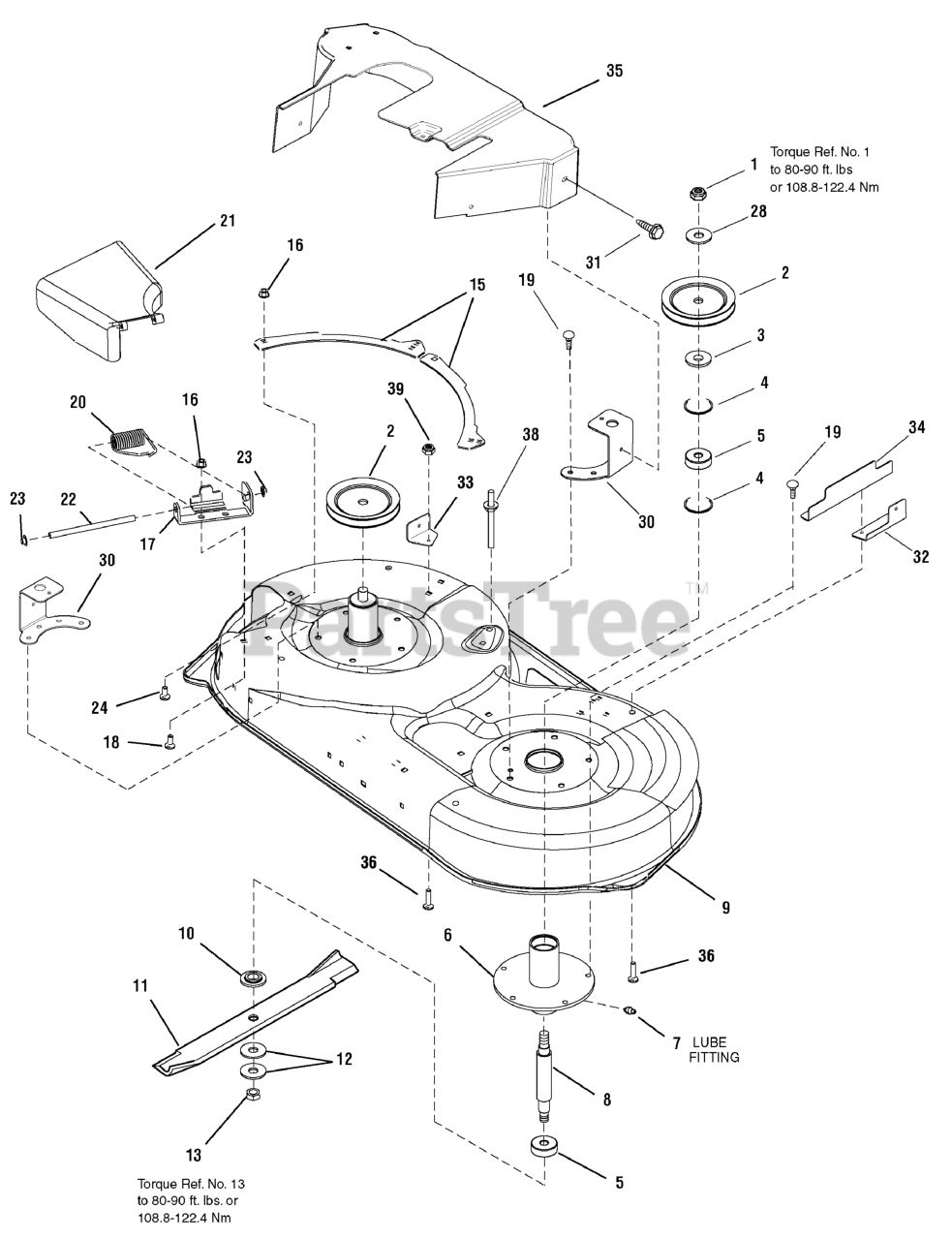

42" Mower Deck - Housing & Arbor Group, Export (7501262) Parts Diagram

  • Title

1

Murray 1922014SM

NUT, Hex Nylock, 5/8
(Superseded to 703904)

$4.99

$

In Stock, Qty 18

0

2

Murray 1734064SM

PULLEY, Drive

$35.99

$

Usually ships in 2-12 days

0

3

Murray 7072440SM

SPACER, Pulley

$9.49

$

In Stock, Qty 19

0

4

Murray 7012491SM

RING, Retaining

$4.49

$

In Stock, Qty 20+

0

5

Murray 7013313SM

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

6

Murray 1731372ASM

TUBE & PLATE ASSEMBLY, Spindle
(Superseded to 1731372BMYP)

$98.99

$

In Stock, Qty 11

0

7

Murray 1704314SM

LUBE, Fitting
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

8

Murray 7072537SM

SHAFT, Spindle

$43.99

$

In Stock, Qty 20+

0

9

Murray 1730100ZSM

HOUSING, 42"
(Superseded to 1687791YP)

$

$

Not available

10

Murray 1731917SM

WASHER, Spidle Blade

$9.49

$

In Stock, Qty 20+

0

11

Murray 1731898ASM

BLADE
(Superseded to 1731898BZYP)

$20.99

$

In Stock, Qty 7

0

12

Murray 7024467SM

WASHER, Belleville

$4.49

$

In Stock, Qty 20+

0

13

Murray 7091633SM

NUT, Hex, 9/16

$4.99

$

In Stock, Qty 20+

0

15

Murray 092426E701MA

PLATE, Rear

$10.99

$

In Stock, only 1 left!

0

16

Murray 1960686SM

NUT, ESNA, 5/16
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

17

Murray 094956E701MA

BRACKET, Hinge

$22.99

$

Usually ships in 2-12 days

0

18

Murray 1931333SM

BOLT, Carriage, 5/16 - 18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

19

Murray 1923683SM

SCREW, Taptite, 3/8 - 16 x 3/4
(Superseded to 703950)

$5.49

$

In Stock, only 3 left!

0

20

Murray 0166X4MA

SPRING, Torsion

$6.49

$

In Stock, Qty 9

0

21

Murray 094707MA

DEFLECTOR

$108.99

$

In Stock, only 3 left!

0

22

Murray 094957ZMA

ROD, Deflector

$10.99

$

In Stock, only 1 left!

0

23

Murray 1960093SM

PUSHNUT
(Superseded to 703948)

$4.49

$

In Stock, Qty 17

0

24

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

28

Murray 7091546SM

LOCKWASHER, Internal Tooth, 5/8
(Superseded to 1960547SM)

$4.49

$

In Stock, only 3 left!

0

30

Murray 1734039ASM

SUPPORT, Pulley Cover

$34.99

$

Usually ships in 2-12 days

0

31

Murray 1924856SM

SCREW, Taptite, 5/16 - 18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

32

Murray 7301040BMYP

BRACKET, Cover, Mounting, Left

$19.99

$

Usually ships in 2-12 days

0

33

Murray 7301041BMYP

BRACKET, Cover, Mounting, Right

$19.99

$

Usually ships in 2-12 days

0

34

Murray 7301045BMYP

BRACKET, Guard, Left

$21.99

$

Usually ships in 2-12 days

0

35

Murray 7102967YP

COVER, 42in Deck

$319.99

$

Usually ships in 2-12 days

0

36

Murray 7090799SM

BOLT, Shoulder, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

38

Murray 7029303YP

STANDOFF

$48.99

$

Usually ships in 2-12 days

0

39

Murray 1930645SM

NUT, Hex Flange, Two Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0
