EZF 3417 (965879301) - Husqvarna 34" Zero-Turn Mower (2008-09) Steering Parts Diagram

34" Zero-Turn Mower

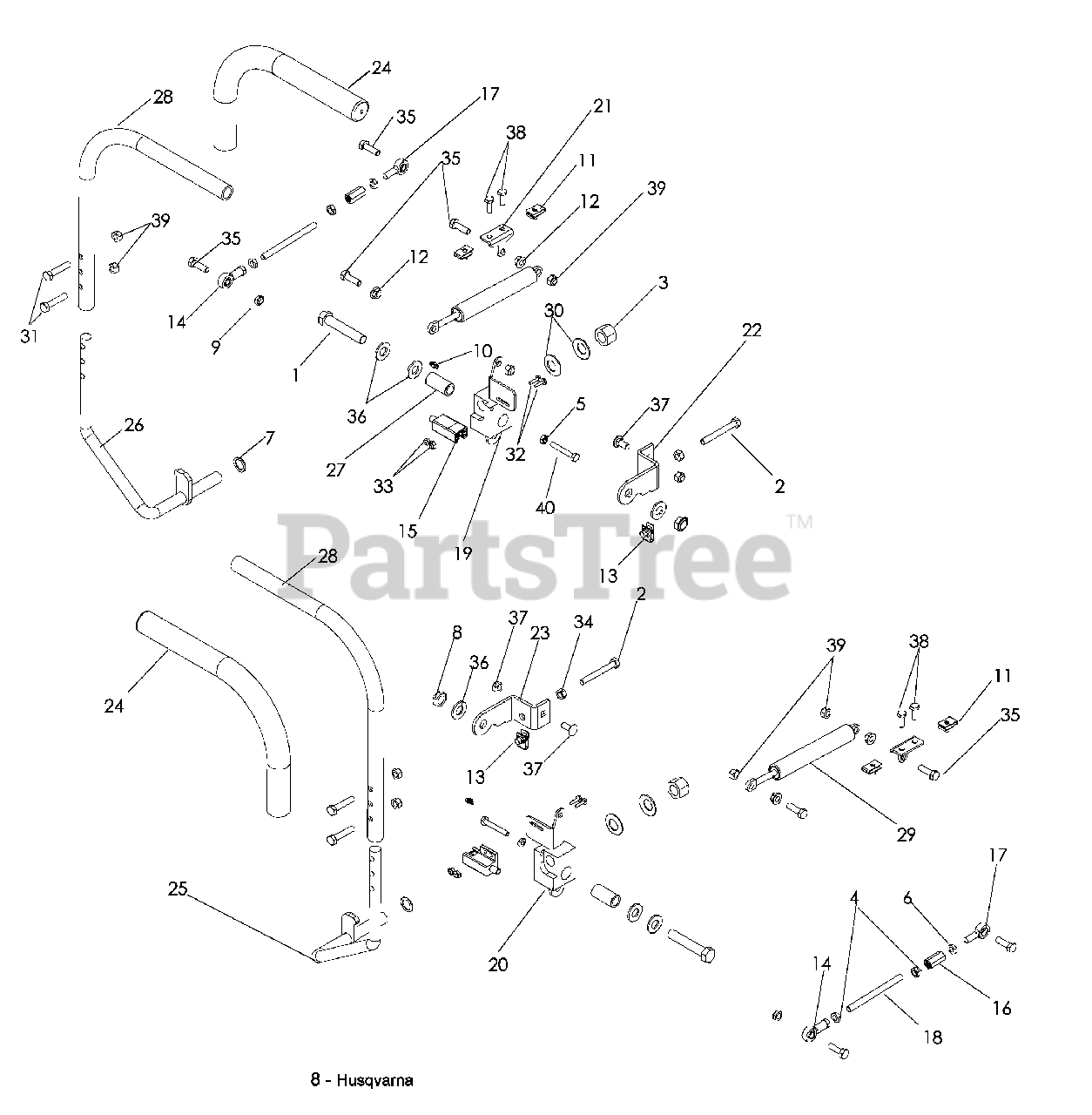

Steering Parts Diagram

  • Title

1

Husqvarna 539101332

HHB ½-13 x 2¾

$5.99

$

In Stock, only 3 left!

0

2

Husqvarna 539108396

HHB 5/16-18 x 2½

$

$

Not available

3

Husqvarna 539110340

NUT 5/8-11 NYLOC

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539115502

NUT 5/16-24 JAM

$3.99

$

In Stock, Qty 5

0

5

Husqvarna 539991112

NUT ¼-20 JAM

$3.99

$

In Stock, only 4 left!

0

6

Husqvarna 539991073

NUT 5/16-24 JAM LH

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539115570

WASHER, .626 ID x .056

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539108010

NUT ½-13 NYLOC

$4.99

$

In Stock, only 3 left!

0

9

Husqvarna 539115617

NUT 5/16-18 NYLOC

$

$

Not available

10

Husqvarna 539115638

GREASE ZERK
(Superseded to 596623501)

$3.99

$

In Stock, only 3 left!

0

11

Husqvarna 539110813

U TYPE RETAINER ¼

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539115674

NUT 5/16-18 FLANGE

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539104763

U TYPE RETAINER 5/16

$6.49

$

In Stock, Qty 12

0

14

Husqvarna 539115729

ROD END RH
(Superseded to 579764601)

$9.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539101080

DECK SWITCH

$17.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539116689

ROD END COUPLER

$

$

Not available

17

Husqvarna 539116690

ROD END LH
(Superseded to 588692502)

$10.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539117476

ROD

$9.49

$

Usually ships in 3-10 days

0

19

Husqvarna 539117863

STEERING CONTROL RH

$169.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539117865

STEERING CONTROL LH

$169.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539117900

MOUNT, DAMPENER

$7.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539117949

FORWARD STOP RH

$34.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539117950

FORWARD STOP LH

$34.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539120899

GRIP

$13.99

$

In Stock, only 1 left!

0

25

Husqvarna 539120950

LEVER LH

$136.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539120951

LEVER RH

$103.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539120956

BUSHING ½ ID x ¾ OD

$

$

Not available

28

Husqvarna 539121065

LEVER, UPPER

$56.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539114453

DAMPENER, DUAL ACTION

$74.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539911121

BELLEVILLE WASHER 5/8

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539976935

HHB 5/16-18 x 1½

$

$

Not available

32

Husqvarna 539976952

SCR 10-24 x 5/8, PAN HD
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

33

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

34

Husqvarna 539990196

NUT 5/16-18

$1.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539990209

HHB 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539990250

WASHER ½ NARROW

$1.99

$

In Stock, only 2 left!

0

37

Husqvarna 539990316

RHSNB 5/16-18 x ¾
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 539990580

HHB ¼-20 x ¾

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 539991003

HHB ¼-20 x 1¾

$3.99

$

Usually ships in 3-10 days

0
