EZF 3417 (965879301) - Husqvarna 34" Zero-Turn Mower (2008-09) Mower Lift / Deck Lift Parts Diagram

34" Zero-Turn Mower

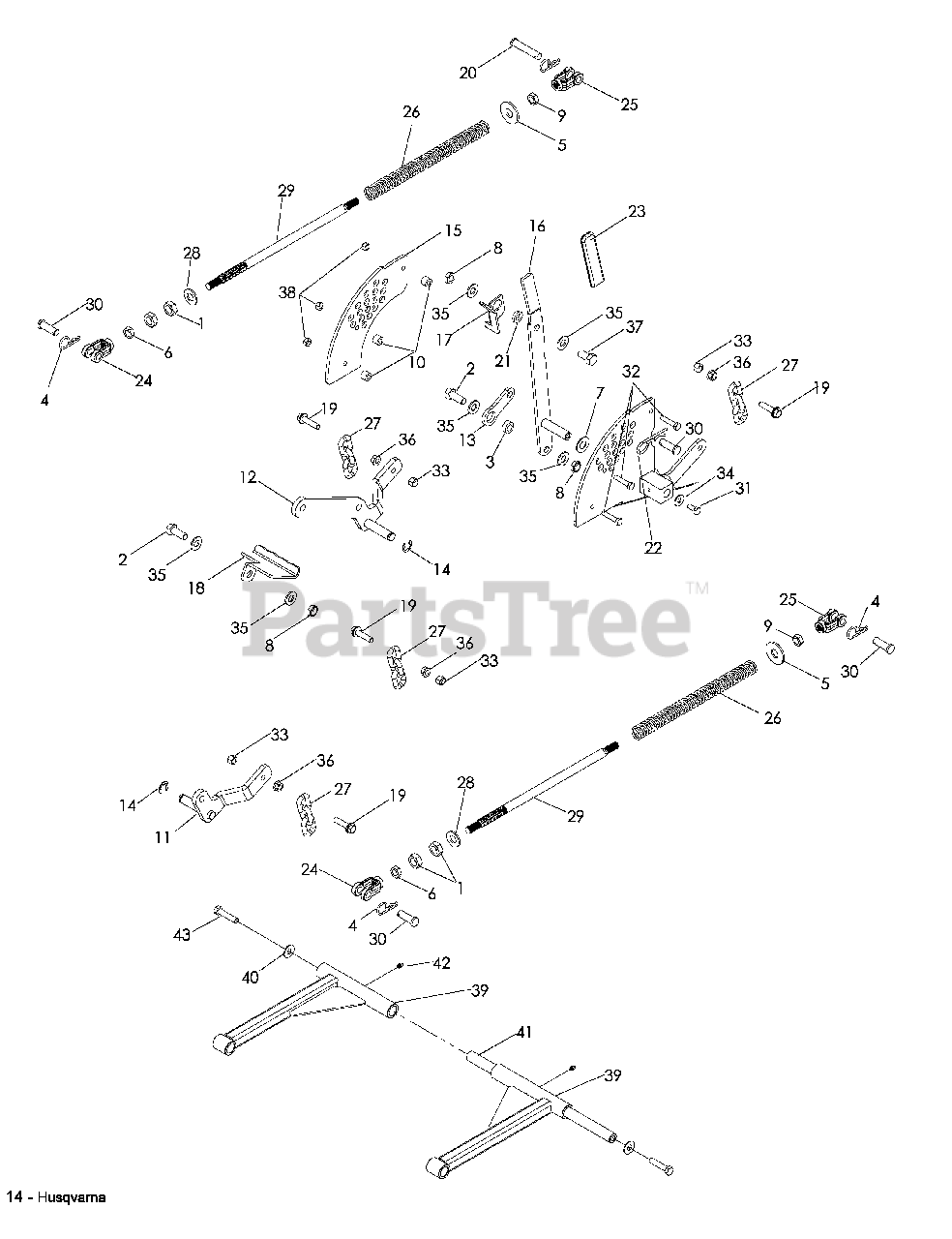

Mower Lift / Deck Lift Parts Diagram

  • Title

1

Husqvarna 539100476

NUT 5/8-11 JAM

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539108369

HHB ½-13 x 1¼

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539115359

BLADE ADAPTOR

$7.49

$

Usually ships in 3-10 days

0

4

Husqvarna 539115501

HAIR PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539102653

WASHER 5/8

$3.99

$

In Stock, only 4 left!

0

6

Husqvarna 539108736

NUT ½-20 JAM

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539115565

WASHER 5/8 x .063

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539108010

NUT ½-13 NYLOC

$4.99

$

In Stock, only 3 left!

0

9

Husqvarna 539115769

NUT ½-20 JAM LH

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539116039

SPACER

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 522420501

LIFT ARM LH

$

$

Not available

12

Husqvarna 522420301

LIFT ARM RH

$

$

Not available

13

Husqvarna 539132810

LINK, LIFT HANDLE

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539117898

E-RING 7/8

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539117903

OUTER QUADRANT

$66.99

$

Usually ships in 3-10 days

0

16

Husqvarna 521998301

LIFT HANDLE

$

$

Not available

17

Husqvarna 521998201

LIFT LATCH

$

$

Not available

18

Husqvarna 521998601

FOOT PEDAL

$

$

Not available

19

Husqvarna 539118165

HHB 3/8-16 x 1½ FLG

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539118783

CLEVIS PIN

$6.49

$

Usually ships in 3-10 days

0

21

Husqvarna 539119012

SPACER

$5.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539120259

HAIR PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539120921

GRIP, BRAKE HANDLE

$13.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539121309

CLEVIS RH FEMALE

$14.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539121321

CLEVIS LH FEMALE

$9.49

$

Usually ships in 3-10 days

0

26

Husqvarna 539121329

LIFT SPRING

$7.49

$

Usually ships in 3-10 days

0

27

Husqvarna 539121333

CHAIN

$14.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539121338

WASHER, .65 x 1¼
(Superseded to 539976982)

$4.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539121557

TIE BAR

$36.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539122627

CLEVIS PIN ½ x 1½

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539976934

HHB 5/16-18 x ¾
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 539976935

HHB 5/16-18 x 1½

$

$

Not available

33

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 539990188

WASHER 5/16
(Superseded to 819111116)

$3.99

$

In Stock, Qty 17

0

35

Husqvarna 539990250

WASHER ½ NARROW

$1.99

$

In Stock, only 2 left!

0

36

Husqvarna 539990613

NUT 3/8-16 FLANGE

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539990646

HHB ½-13 x 1

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 521998001

ARM, TRAILING

$

$

Not available

40

Husqvarna 539990517

WASHER, 3/8

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539117852

SPACER, FRAME

$54.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539118928

ZERK, GREASE ¼

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539122697

SCREW, MACHINE

$

$

Not available
