EZF 3417 (965879301) - Husqvarna 34" Zero-Turn Mower (2008-09) 34 Inch Deck Parts Diagram

34" Zero-Turn Mower

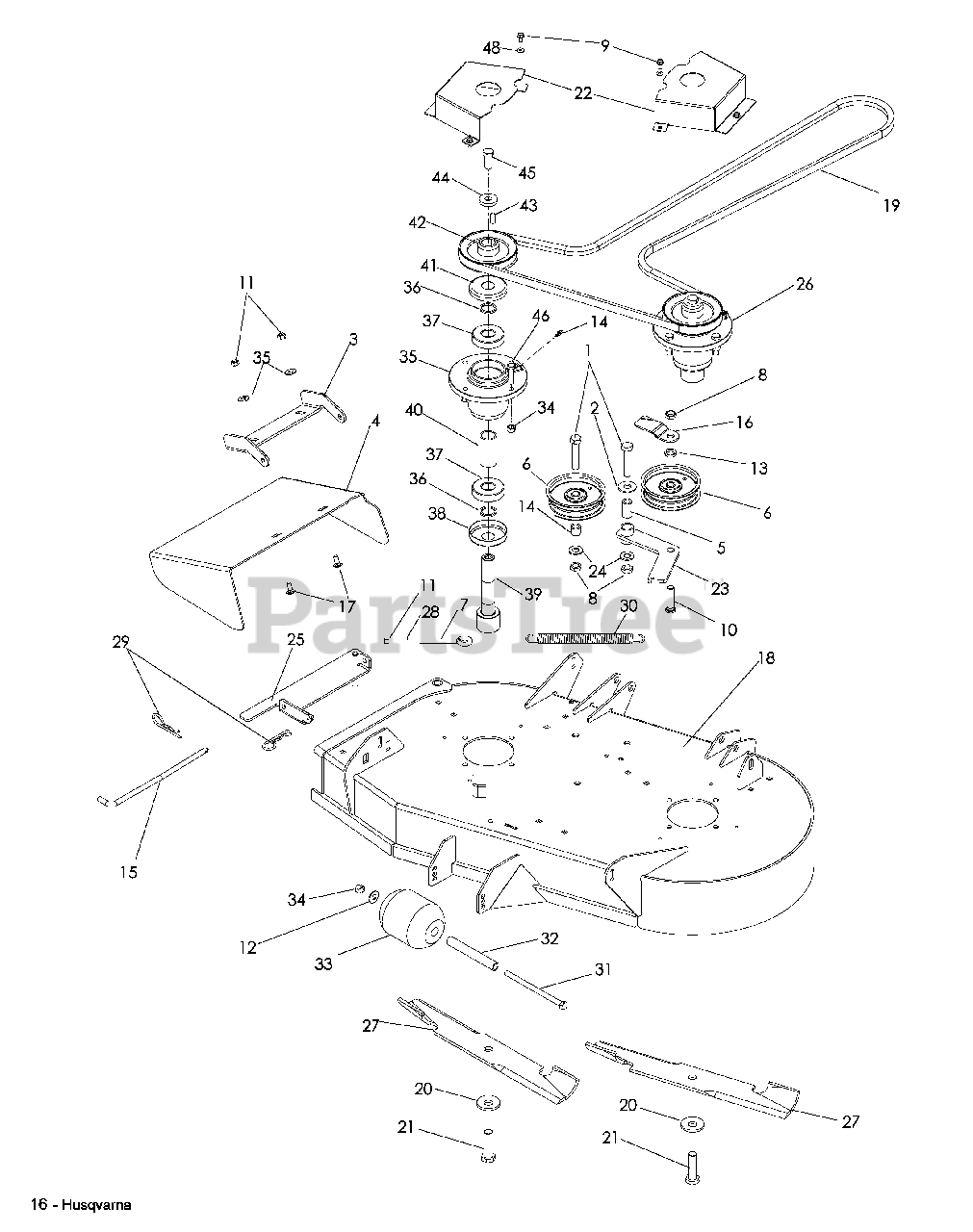

34 Inch Deck Parts Diagram

  • Title

1

Husqvarna 539108346

HHB ½-13 x 2½

$5.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539109554

WASHER ½

$

$

Not available

3

Husqvarna 522032401

HINGE, DEFLECTOR

$

$

Not available

4

Husqvarna 522032501

DEFLECTOR
(Superseded to 539114528)

$193.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539115220

BUSHING ½ ID x ¾ OD

$

$

Not available

6

Husqvarna 539115278

IDLER PULLEY

$37.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539115574

EYEBOLT 5/16 x 3½

$

$

Not available

8

Husqvarna 539115609

NUT ½-13 NYLOC
(Superseded to 539108010)

$4.99

$

In Stock, only 3 left!

0

9

Husqvarna 539990362

SCREW ¼-20 x 5/8, SELF TAP

$4.99

$

In Stock, Qty 12

0

10

Husqvarna 539115647

STUD ½-13 x 2

$21.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 539990517

WASHER 3/8

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539115948

SPACER H.D. PULLEY

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539116010

TUBE, .51 x.75 x .63

$

$

Not available

15

Husqvarna 539116225

DEFLECTOR PIN

$

$

Not available

16

Husqvarna 539116351

BELT GUARD

$

$

Not available

17

Husqvarna 539990316

RHSNB 5/16-18 x ¾
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 522420901

DECK W/DECALS

$

$

Not available

19

Husqvarna 539117811

V-BELT

$68.99

$

In Stock, only 1 left!

0

20

Husqvarna 539117838

BLADE WASHER

$3.99

$

In Stock, only 1 left!

0

21

Husqvarna 539117839

HHB 5/8-18 x 2¼ GR 8

$7.49

$

Usually ships in 3-10 days

0

22

Husqvarna 539117886

PULLEY GUARD, 34

$

$

Not available

23

Husqvarna 539117888

IDLER ARM

$

$

Not available

24

Husqvarna 539990250

WASHER ½ NARROW

$1.99

$

In Stock, only 2 left!

0

25

Husqvarna 522032301

MOUNT, DEFLECTOR

$

$

Not available

26

Husqvarna 539117955

SPINDLE ASSEMBLY

$

$

Not available

27

Husqvarna 539118039

BLADE 34" HI-LIFT

$

$

Not available

28

Husqvarna 539990188

WASHER 5/16
(Superseded to 819111116)

$3.99

$

In Stock, Qty 18

0

29

Husqvarna 539121221

HAIR PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539120920

SPRING, DECK BELT

$

$

Not available

31

Husqvarna 539121478

HHB 3/8-16 x 6

$4.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539122574

BUSHING

$24.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539122633

ROLLER, 3¾

$

$

Not available

34

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539117968

DECK HUB

$78.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539115326

HUB PULLEY SPACER

$

$

Not available

37

Husqvarna 539119260

BEARING, 6305 2RS

$

$

Not available

38

Husqvarna 539117954

TRASH GUARD
(Superseded to 539119811)

$18.99

$

In Stock, only 1 left!

0

39

Husqvarna 539117953

SHAFT, SPINDLE

$84.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539117969

SPACER

$8.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539119811

TRASH GUARD

$18.99

$

In Stock, only 1 left!

0

42

Husqvarna 539119264

PULLEY

$

$

Not available

43

Husqvarna 539115387

KEY ¼ x .88

$

$

Not available

44

Husqvarna 539115636

WASHER, .525 x 1.375 x .25

$9.99

$

In Stock, only 1 left!

0

45

Husqvarna 539115511

HHB ½-20 x 1¼

$4.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539990655

HCS 3/8-16 x 1½

$4.99

$

In Stock, only 2 left!

0

47

Husqvarna 539115638

ZERK, GREASE
(Superseded to 596623501)

$3.99

$

In Stock, only 4 left!

0

48

Husqvarna 539990598

WASHER ¼

$

$

Not available
