EZF 2101 DKU - Snapper Zero-Turn Mower, 21hp Kubota Wiring Components (Diesel Only) Parts Diagram

Zero-Turn Mower, 21hp Kubota

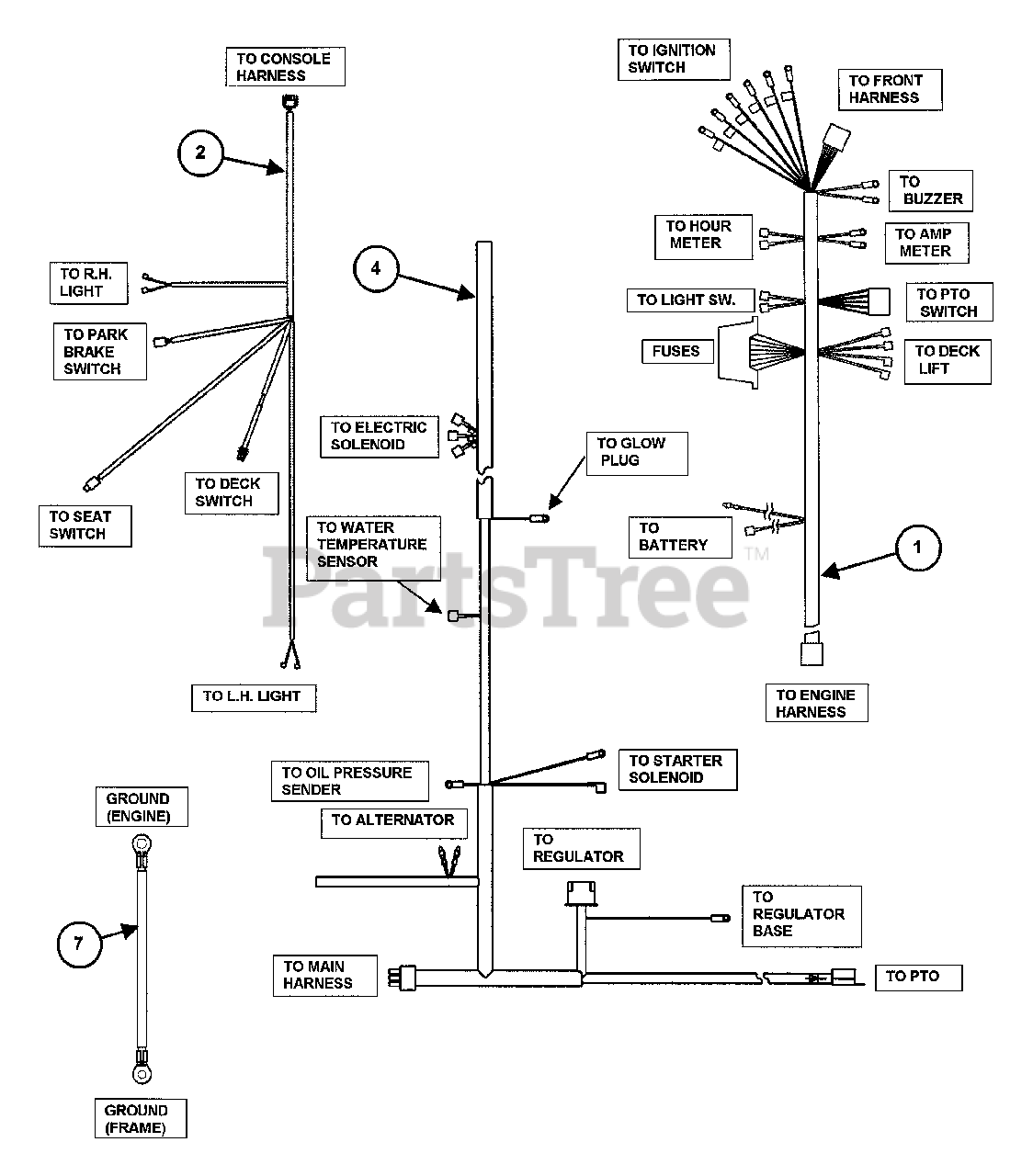

Wiring Components (Diesel Only) Parts Diagram

  • Title

1

Snapper 7045200

HARNESS, Control Panel
(Superseded to 7045200YP)

$86.99

$

Usually ships in 2-12 days

0

2

Snapper 7045334

HARNESS, Front
(Superseded to 7045334YP)

$111.99

$

Usually ships in 2-12 days

0

?3

Snapper 7042834

HARNESS, Deck Lift (15" Long)
(Superseded to 7042834YP)

Note: See "Wiring Components (Gas Only)" illustration and parts list for illustration

$11.99

$

Usually ships in 2-12 days

0

4

Snapper 7045201

HARNESS, Engine
(Superseded to 7045201YP)

Note: (Kubota D722)

$81.99

$

Usually ships in 2-12 days

0

?5

Snapper 7045312

CABLE, Battery-Positive (51" Long)
(Superseded to 7045312YP)

Note: See "Wiring Components (Gas Only)" illustration and parts list for illustration

$62.99

$

Usually ships in 2-12 days

0

?6

Snapper 7045311

CABLE, Battery-Ground (38" Long)
(Superseded to 7045311YP)

Note: See "Wiring Components (Gas Only)" illustration and parts list for illustration

$36.99

$

Usually ships in 2-12 days

0

7

Snapper 7045310

CABLE, Chassis-Ground (15" Long)
(Superseded to 7045310SM)

$9.99

$

Usually ships in 2-12 days

0
