EZF 2101 DKU - Snapper Zero-Turn Mower, 21hp Kubota Traction Drive Idler Assembly Parts Diagram

Zero-Turn Mower, 21hp Kubota

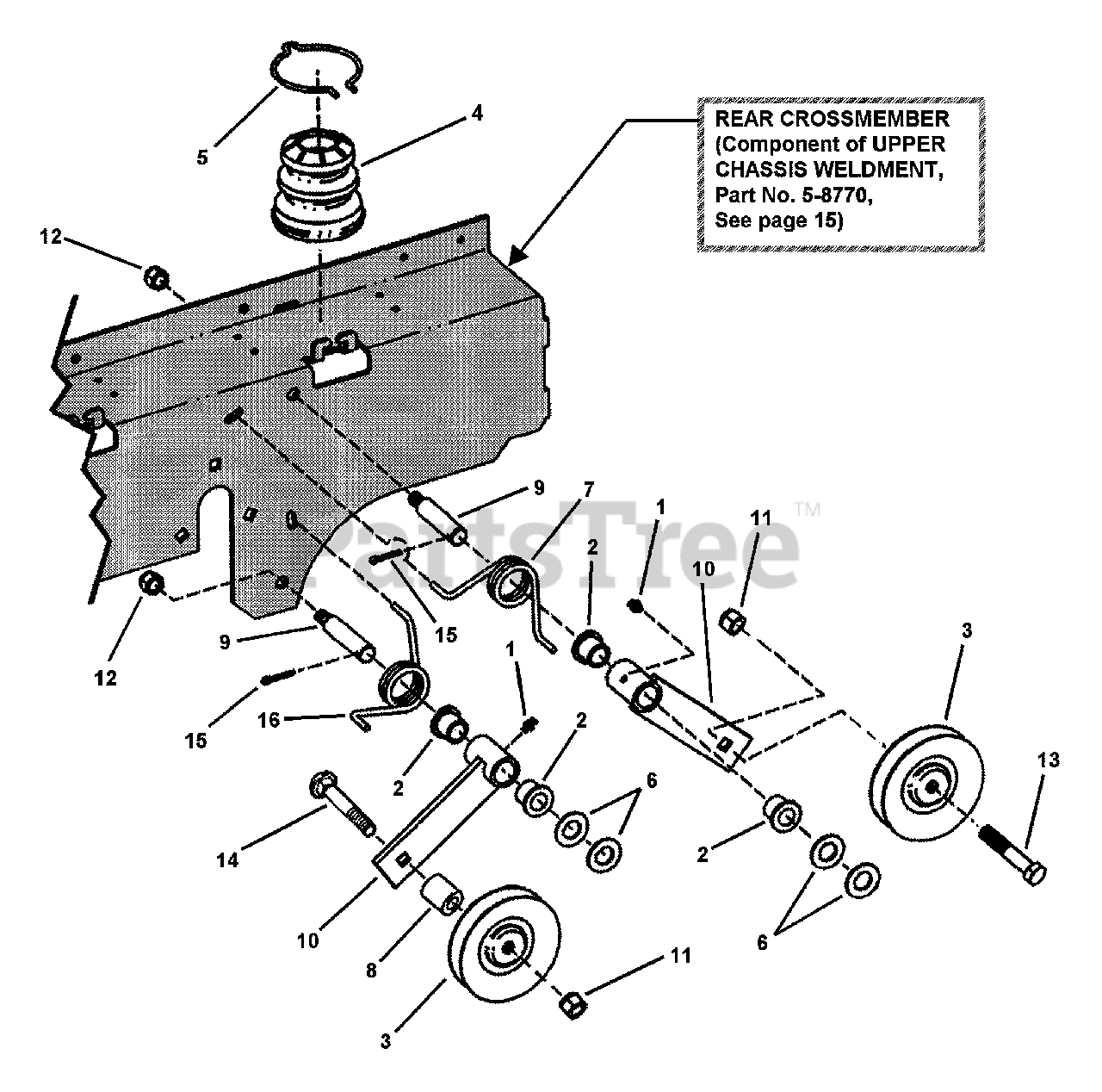

Traction Drive Idler Assembly Parts Diagram

  • Title

1

Snapper 7013324

FITTING, 3/16 Lube
(Superseded to 7013324YP)

$7.99

$

In Stock, Qty 6

0

2

Snapper 7014409

BUSHING, 9/16 I.D., 3/4" O.D.
(Superseded to 7014409SM)

$6.99

$

In Stock, Qty 19

0

3

Snapper 7018573

PULLEY, Idler 3.48 O.D.
(Superseded to 7018573YP)

$40.99

$

In Stock, only 2 left!

0

4

Snapper 7019109

COVER, Spring (Rubber)
(Superseded to 7019109YP)

$18.99

$

In Stock, Qty 20+

0

5

Snapper 7019348

CLIP, Seat Cushion
(Superseded to 7019348YP)

$24.99

$

In Stock, only 2 left!

0

6

Snapper 7091804

WASHER, 9/16 Flat
(Superseded to 5103679)

$2.99

$

Usually ships in 2-12 days

0

7

Snapper 7035713

SPRING, Torsion
(Superseded to 7035713YP)

$28.99

$

In Stock, only 1 left!

0

8

Snapper 7023478

SPACER, 3/8 I.D. 5/8 O.D. x 5/8" Long

Note: Was 35812

$

$

Not available

9

Snapper 7035816

PIN, 3/8-24
(Superseded to 7035816YP)

$100.99

$

Usually ships in 2-12 days

0

10

Snapper 7042622

IDLER ARM (Weldment)
(Superseded to 7057717YP)

$

$

Not available

11

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7091518

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

13

Snapper 7091553

SCREW, 3/8-16 x 1-3/4" Hex Head Cap, Grade 5
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

14

Snapper 7090990

BOLT, 3/8-16 x 2" Square Neck Carriage, Grade 2
(Superseded to 7090990YP)

$5.49

$

Usually ships in 2-12 days

0

15

Snapper 7091598

COTTER PIN, 1/8 x 3/4"
(Superseded to 703958)

$4.49

$

In Stock, only 4 left!

0

16

Snapper 7036562

SPRING, Torsion
(Superseded to 7036562YP)

$32.99

$

Usually ships in 2-12 days

0
