EZF 2101 DKU - Snapper Zero-Turn Mower, 21hp Kubota Footrest Assembly Parts Diagram

Zero-Turn Mower, 21hp Kubota

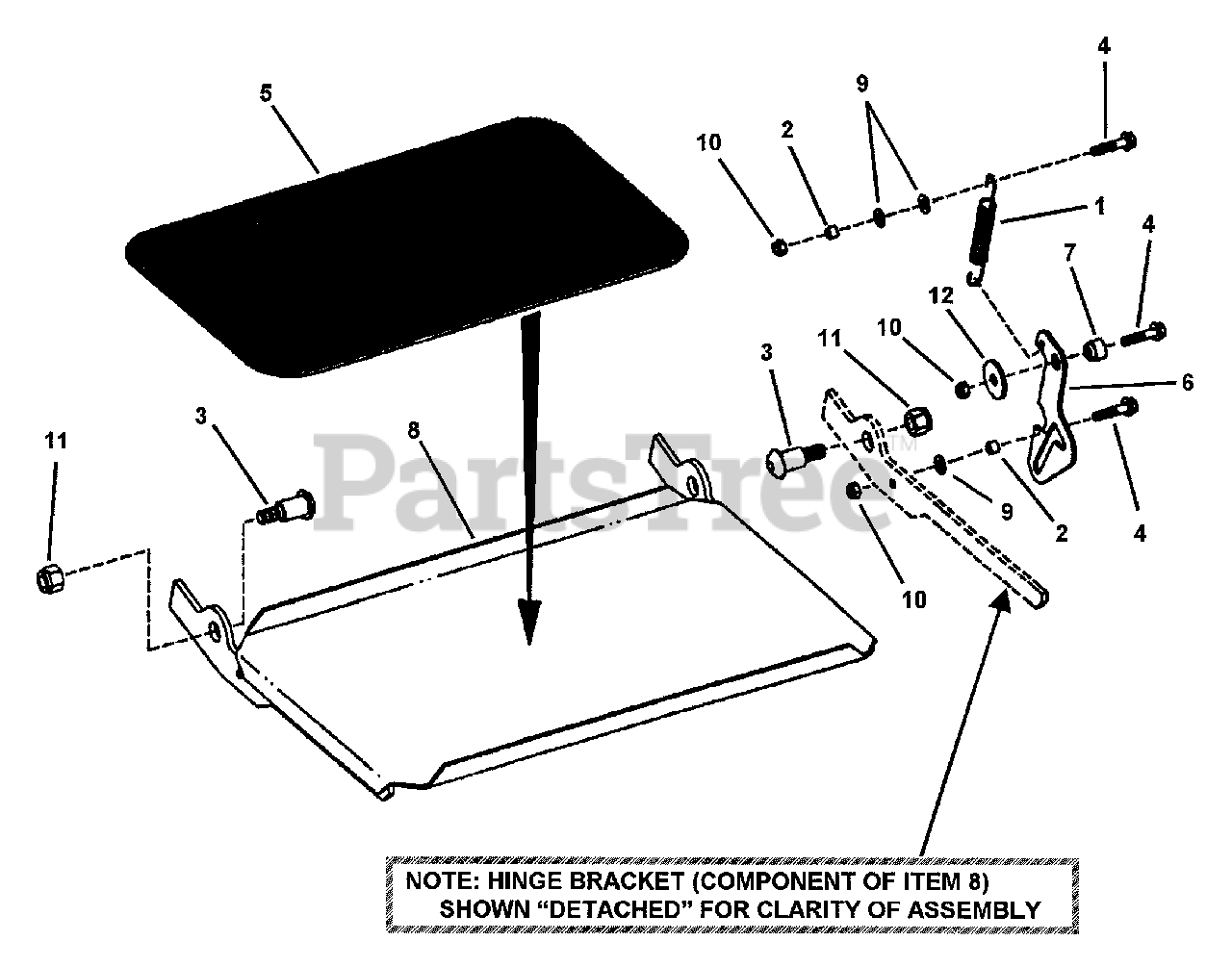

Footrest Assembly Parts Diagram

  • Title

1

Snapper 7022696

SPRING
(Superseded to 7022696YP)

$3.49

$

Usually ships in 2-12 days

0

2

Snapper 7028810

BUSHING, 5/16 I.D. x 7/16 O.D. x 3/16"

$

$

Currently unavailable

3

Snapper 7035849

BOLT, 1/2-13, 3/4 Dia. X 1-1/16 Shoulder
(Superseded to 7035849YP)

$59.99

$

Usually ships in 2-12 days

0

4

Snapper 7091602

BOLT, 5/16-18 x 1-1/2 Hex Flange Lock, Grade 5
(Superseded to 7091602SM)

$3.99

$

In Stock, Qty 5

0

5

Snapper 7035855

FOOT PAD, Rubber
(Superseded to 7035855YP)

$33.99

$

Usually ships in 2-12 days

0

6

Snapper 7035978

PLATE, Footrest Latch
(Superseded to 7035978YP)

$38.99

$

Usually ships in 2-12 days

0

7

Snapper 7035979

SPACER, Shoulder (Latch)

$

$

Currently unavailable

8

Snapper 7042630

FOOTREST (Weldment)
(Superseded to 7042630YP)

$273.99

$

Usually ships in 2-12 days

0

9

Snapper 7090188

WASHER, 11/32 I.D. x 11/16 O.D. x 1/16" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 1 left!

0

10

Snapper 5025057

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 5025332

NUT, 1/2-13 HEX SIDE LOCK
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 11

0

12

Snapper 7091331

WASHER, 13/32 I.D. x 1-1/2 O.D. x 1/8" Flat
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0
