EZC 4824 (965880201) - Husqvarna 48" Zero-Turn Mower (2009-01) 48" Deck Parts Diagram

48" Zero-Turn Mower

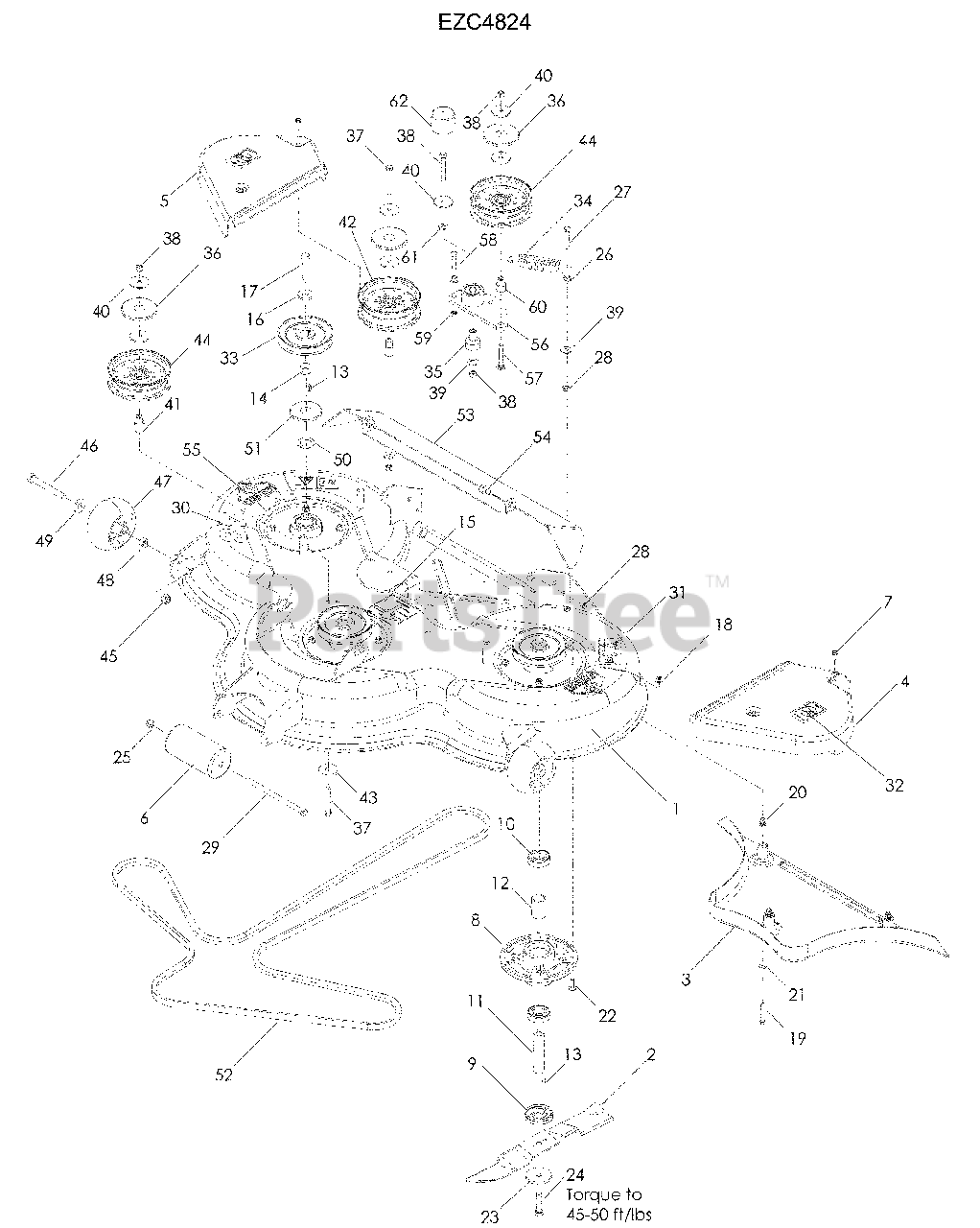

48" Deck Parts Diagram

  • Title

1

Husqvarna 522744901

DECK w/DECALS

$

$

Not available

2

Husqvarna 535429401

BLADE
(Superseded to 535429410)

$28.99

$

In Stock, only 3 left!

0

3

Husqvarna 539132776

PLUG, MULCH

$

$

Not available

4

Husqvarna 539112508

BELT SHIELD, LT

$24.99

$

In Stock, only 1 left!

0

5

Husqvarna 539112509

BELT SHIELD, RT

$34.99

$

Usually ships in 3-10 days

0

6

Husqvarna 544185401

ROLLER
(Superseded to 539002472)

$

$

Not available

7

Husqvarna 539990362

SCREW ¼-20 x 5/8 SLF TAP

$4.99

$

In Stock, Qty 12

0

8

Husqvarna 535428901

HOUSING, BEARING

$

$

Not available

9

Husqvarna 539132778

BUSHING, BLADE

$37.99

$

Usually ships in 3-10 days

0

10

Husqvarna 738220519

BEARING

$50.99

$

In Stock, only 2 left!

0

11

Husqvarna 535428702

AXLE

$56.99

$

Usually ships in 3-10 days

0

12

Husqvarna 535428801

SPACER

$9.49

$

Usually ships in 3-10 days

0

13

Husqvarna 506533501

KEY

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539112609

KEY RETAINER

$10.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539112620

DECAL, BELT ROUTING

$7.49

$

In Stock, only 4 left!

0

16

Husqvarna 539115550

WASHER

$4.99

$

In Stock, only 2 left!

0

17

Husqvarna 539132479

HCS M12 x 1.75 x 60 GR 8.8

$3.99

$

In Stock, only 1 left!

0

18

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

19

Husqvarna 539132494

HCS M8 x 1.25 x 50 GR 8.8

$

$

Not available

20

Husqvarna 506916201

BUSHING

$7.49

$

Usually ships in 3-10 days

0

21

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539990208

RHSNB 5/16-18 x 1

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 506792302

WASHER

$14.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539132480

HCS M12 x 1.75 x 50 GR 8.8

$3.99

$

In Stock, only 1 left!

0

25

Husqvarna 539990839

NUT 7/16-14 HEX CTRLK GR A

$3.99

$

In Stock, only 3 left!

0

26

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990588

HCS 3/8-16 x 2

$4.99

$

In Stock, Qty 10

0

28

Husqvarna 539200282

NUT 3/8-16 HEX JAM NYLOC
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

29

Husqvarna 539132470

HCS 7/16-14 x 7

$4.99

$

In Stock, only 1 left!

0

30

Husqvarna 544245303

DECAL, 48

$9.49

$

Usually ships in 3-10 days

0

31

Husqvarna 539105744

DECAL, BELT DRIVES

$6.99

$

In Stock, only 2 left!

0

32

Husqvarna 539105743

DECAL, NO STEP
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

33

Husqvarna 539132895

PULLEY, 48

$60.99

$

In Stock, only 1 left!

0

34

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 6

0

35

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

36

Husqvarna 539108450

DUST CAP, TOP

$5.99

$

In Stock, only 1 left!

0

37

Husqvarna 539102612

HCS 3/8-16 x 2¾

$5.99

$

In Stock, only 3 left!

0

38

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 539990517

WASHER 3/8 FLAT STD

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539111897

WASHER 3/8 SPECIAL

$

$

Not available

41

Husqvarna 539103295

BUSHING, IDLER

$14.99

$

In Stock, only 4 left!

0

42

Husqvarna 539103258

PULLEY, IDLER

Note: (TALL)

$53.99

$

In Stock, only 1 left!

0

43

Husqvarna 539106504

WASHER, HEAVY

$

$

Not available

44

Husqvarna 539103257

PULLEY, IDLER

$74.99

$

In Stock, only 1 left!

0

45

Husqvarna 539101331

NUT ½ HEX NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

46

Husqvarna 539108366

HCS ½ -13 x 4

$6.99

$

In Stock, Qty 17

0

47

Husqvarna 539107610

WHEEL, GAUGE
(Superseded to 532133957)

$13.99

$

In Stock, Qty 18

0

48

Husqvarna 539990258

NUT ½-13 HEX

$4.99

$

In Stock, Qty 14

0

49

Husqvarna 539109554

WASHER ½ FLAT

$

$

Not available

50

Husqvarna 539127099

WASHER

$6.49

$

In Stock, only 1 left!

0

51

Husqvarna 539108449

DUST CAP, BOTTOM

$4.99

$

In Stock, Qty 15

0

52

Husqvarna 539106340

BELT

$133.99

$

Usually ships in 3-10 days

0

53

Husqvarna 516008502

GUARD, DISCHARGE

$

$

Not available

54

Husqvarna 539113621

BOLT 3/8-16 x 3/8 SKT HD
(Superseded to 596241101)

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

56

Husqvarna 539130391

ARM, IDLER w/BEARINGS

$

$

Not available

57

Husqvarna 539128101

BOLT 3/8-16 x 2½ CARRIAGE

$

$

Not available

58

Husqvarna 539107042

HCS 3/8-16 x 1½ GR 8

$3.99

$

In Stock, Qty 6

0

59

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

60

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, only 4 left!

0

61

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

62

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 1 left!

0
