EZ3500 A (EZEK) - Honda Generator, Made in Japan (SN: EZEK-1000001 - EZEK-1029999) CONTROL BOX (A) Parts Diagram

Generator, Made in Japan

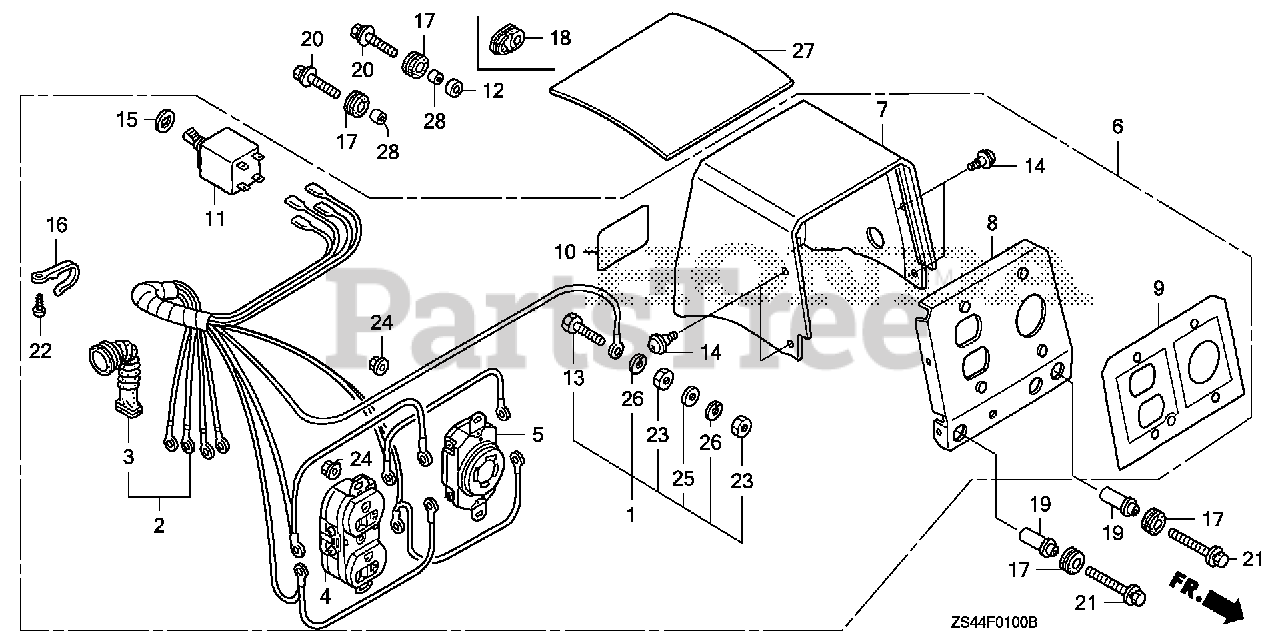

CONTROL BOX (A) Parts Diagram

  • Title

1

Honda 31428-ZS4-003

TERMINAL SET, GROUND

$10.99

$

Usually ships in 3-6 days

0

2

Honda 32100-ZS3-G31

WIRE HARNESS ASSY.

$239.99

$

Usually ships in 3-6 days

0

3

Honda 32168-ZS4-003

GROMMET, MAIN WIRE

$14.99

$

Usually ships in 3-6 days

0

4

Honda 32330-ZS3-G31

RECEPTACLE (20A/125V) (EAGLE / RONG FENG)

$60.99

$

Usually ships in 3-6 days

0

5

Honda 32332-ZS3-505

RECEPTACLE (20A-125/250V)

$

$

Not available

6

Honda 32340-ZS3-G31

BOX ASSY., CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 32351-ZS3-H62

COVER, CONTROL BOX

$71.99

$

Usually ships in 3-6 days

0

8

Honda 32352-ZS3-G31

PANEL, FR.

$31.99

$

Usually ships in 3-6 days

0

9

Honda 32366-ZS3-G31

MARK, PANEL SWITCH

$55.99

$

Usually ships in 3-6 days

0

10

Honda 32368-ZS3-G31

MARK, PROTECTOR (ON-0FF)

$11.99

$

Usually ships in 3-6 days

0

11

Honda 38220-ZB4-C90

PROTECTOR, CIRCUIT (13A)

$142.99

$

Usually ships in 3-6 days

0

12

Honda 44835-167-830

COLLAR, CABLE CLAMP

$4.49

$

Usually ships in 3-6 days

0

13

Honda 90011-ZB4-000

BOLT, HEX. (6X22)

$4.99

$

Usually ships in 3-6 days

0

14

Honda 90105-ZS2-H61

SCREW, SPECIAL (4X7.5)

$2.49

$

Usually ships in 3-6 days

0

15

Honda 90502-ZS4-G31

WASHER, CROWN

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90673-ZB4-003

TIE, CABLE

$5.99

$

Usually ships in 3-6 days

0

17

Honda 90852-898-000

RUBBER, CONTROL BOX

$4.99

$

Usually ships in 3-6 days

0

19

Honda 91552-ZS4-H61

COLLAR, CONTROL BOX

$20.99

$

Usually ships in 3-6 days

0

20

Honda 93404-06025-00

BOLT-WASHER (6X25)

$1.49

$

In Stock, only 3 left!

0

21

Honda 93404-06045-00

BOLT-WASHER (6X45)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 93911-24410

SCREW, TAPPING (4X16) (NOT AVAILABLE)

$

$

Not available

23

Honda 94001-06390-0S

NUT, HEX. (6MM)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 94050-04000

NUT, FLANGE (4MM)

$1.99

$

In Stock, only 2 left!

0

25

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 5

0

26

Honda 94111-06800

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

27

Honda 31460-ZS4-G60

COVER, CONTROL BOX (LOWER)

Note: Use from Frame SN 1015164.

$24.99

$

Usually ships in 3-6 days

0

28

Honda 91552-898-000

COLLAR, CONTROL BOX

$4.99

$

Usually ships in 3-6 days

0
