EZ2500 A (EZEJ) - Honda Generator, Made in Japan (SN: EZEJ-1000001 - EZEJ-9999999) CYLINDER HEAD Parts Diagram

Generator, Made in Japan

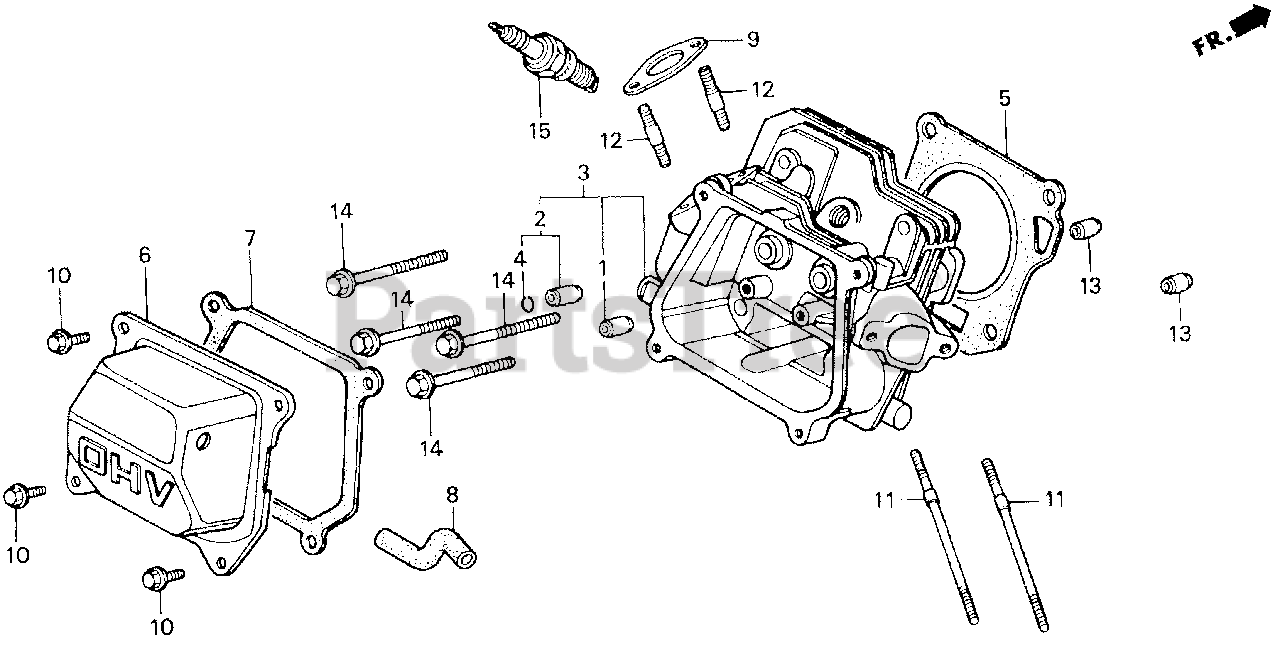

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS)

$9.99

$

Usually ships in 3-6 days

0

2

Honda 12205-ZE1-315

GUIDE, EX. VALVE (OS)

$10.99

$

In Stock, only 2 left!

0

3

Honda 12210-ZH8-000

SEE PART DETAILS - SUP; CYLINDER HEAD
(Superseded to 12210-ZH8-415)

$190.99

$

Usually ships in 3-6 days

0

3

Honda 12210-ZH8-020

SEE PART DETAILS - SUP; CYLINDER HEAD

$

$

Not available

3

Honda 12210-ZH8-405

SEE PART DETAILS - SUP; CYLINDER HEAD
(Superseded to 12210-ZH8-415)

$190.99

$

Usually ships in 3-6 days

0

4

Honda 12216-ZE5-300

CLIP, VALVE GUIDE

$1.99

$

In Stock, Qty 17

0

5

Honda 12251-ZF1-800

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD
(Superseded to 12251-ZF1-801)

$19.99

$

In Stock, only 1 left!

0

6

Honda 12310-ZE1-010

SEE PART DETAILS - SUP; COVER, HEAD
(Superseded to 12310-ZE1-020)

Note: Use up to Engine SN 7638542.

$18.99

$

In Stock, only 1 left!

0

6

Honda 12310-ZE1-020

SEE PART DETAILS - PRI; COVER, HEAD

Note: Use from Engine SN 7638543.

$18.99

$

In Stock, only 1 left!

0

7

Honda 12391-ZE1-000

GASKET, CYLINDER HEAD COVER

$5.49

$

In Stock, Qty 20+

0

8

Honda 15721-ZH8-000

TUBE, BREATHER

$4.99

$

In Stock, Qty 11

0

9

Honda 18381-ZH8-800

SEE PART DETAILS - SUP; GASKET, MUFFLER
(Superseded to 18381-ZH8-801)

$4.49

$

In Stock, Qty 7

0

10

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

11

Honda 90043-ZE1-020

SEE PART DETAILS - PRI; BOLT, STUD (6X109)

$6.99

$

In Stock, only 2 left!

0

12

Honda 90047-ZE1-000

BOLT, STUD (8X32)

$4.99

$

In Stock, only 2 left!

0

13

Honda 94301-10160

PIN A, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

14

Honda 95723-08060-00

BOLT, FLANGE (8X60)

$2.49

$

Usually ships in 3-6 days

0

15

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK)

$3.99

$

In Stock, Qty 20+

0

15

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO)

$3.99

$

In Stock, Qty 8

0
