EZ 6124 (968999505) - Husqvarna 61" Zero-Turn Mower (2007-07) MOWER DECK / CUTTING DECK Parts Diagram

61" Zero-Turn Mower

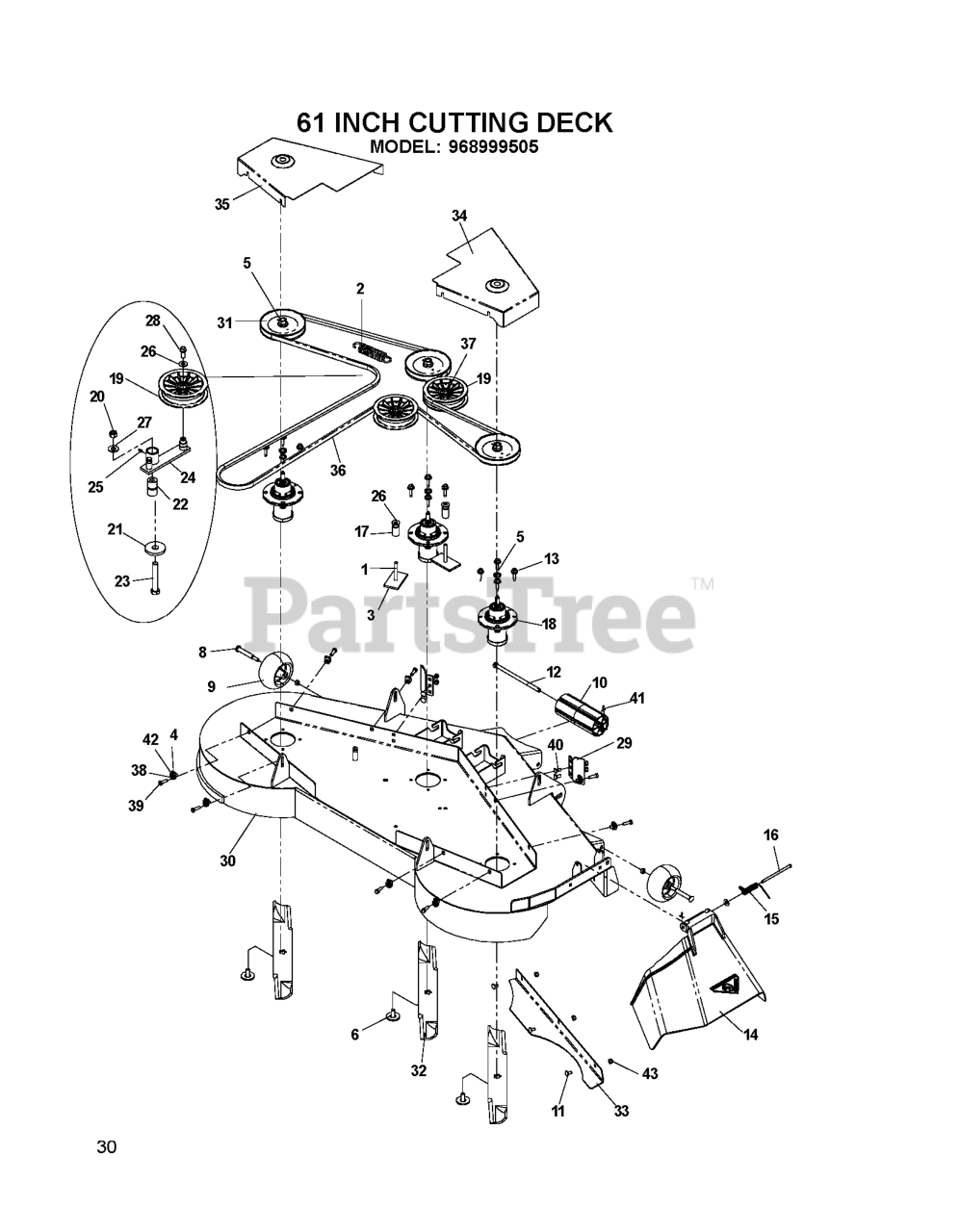

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

3

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

16

Husqvarna 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD

$3.49

$

Usually ships in 3-10 days

0

23

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

4

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

17

Husqvarna 539112169

IDLER BUSHING

$

$

Not available

31

Husqvarna 539113300

PULLEY

$26.99

$

In Stock, Qty 5

0

36

Husqvarna 539113343

BELT, DECK - ESTATE

$133.99

$

In Stock, only 1 left!

0

38

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

2

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 6

0

41

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

37

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 3 left!

0

27

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539114055

BELT SHIELD W/DECALS, 61" RT

$84.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539107613

NOSE ROLLER ROD
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

19

Husqvarna 539112196

IDLER
(Superseded to 589766102)

$31.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

20

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 539112198

IDLER ARM

$121.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539113317

CONFINEMENT PLATE 61

$66.99

$

In Stock, only 1 left!

0

18

Husqvarna 539112170

MANDREL.DECK.ASSEMBLY

$79.99

$

In Stock, Qty 20+

0

11

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

28

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

43

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539113312

BLADE, 21"

$30.99

$

In Stock, Qty 12

0

40

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539107612

NOSE ROLLER-48"
(Superseded to 532176066)

$13.99

$

In Stock, Qty 20+

0

35

Husqvarna 539114056

BELT SHIELD W/DECALS,61" LT

$

$

Not available

30

Husqvarna 539114049

DECK W/DECALS 61" HUS
(Superseded to 539132747)

$

$

Not available

14

Husqvarna 539110734

DISCHARGE CHUTE 61"

$53.99

$

In Stock, only 2 left!

0

13

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 539107522

BLADE BOLT ASSY-7/16" TB REPL
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539107608

SHOULDER BOLT 1/2X2-5/8 ZD SPE
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

1

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

7

Husqvarna 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

29

Husqvarna 539112248

DECK STOP

$15.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539110735

SPRING - TORSION
(Superseded to 596646001)

$4.99

$

In Stock, only 4 left!

0

26

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

21

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available
