EZ 5424 (968999294) - Husqvarna 54" Zero-Turn Mower (2006-02) 48"/122CM CUTTING DECK Parts Diagram

54" Zero-Turn Mower

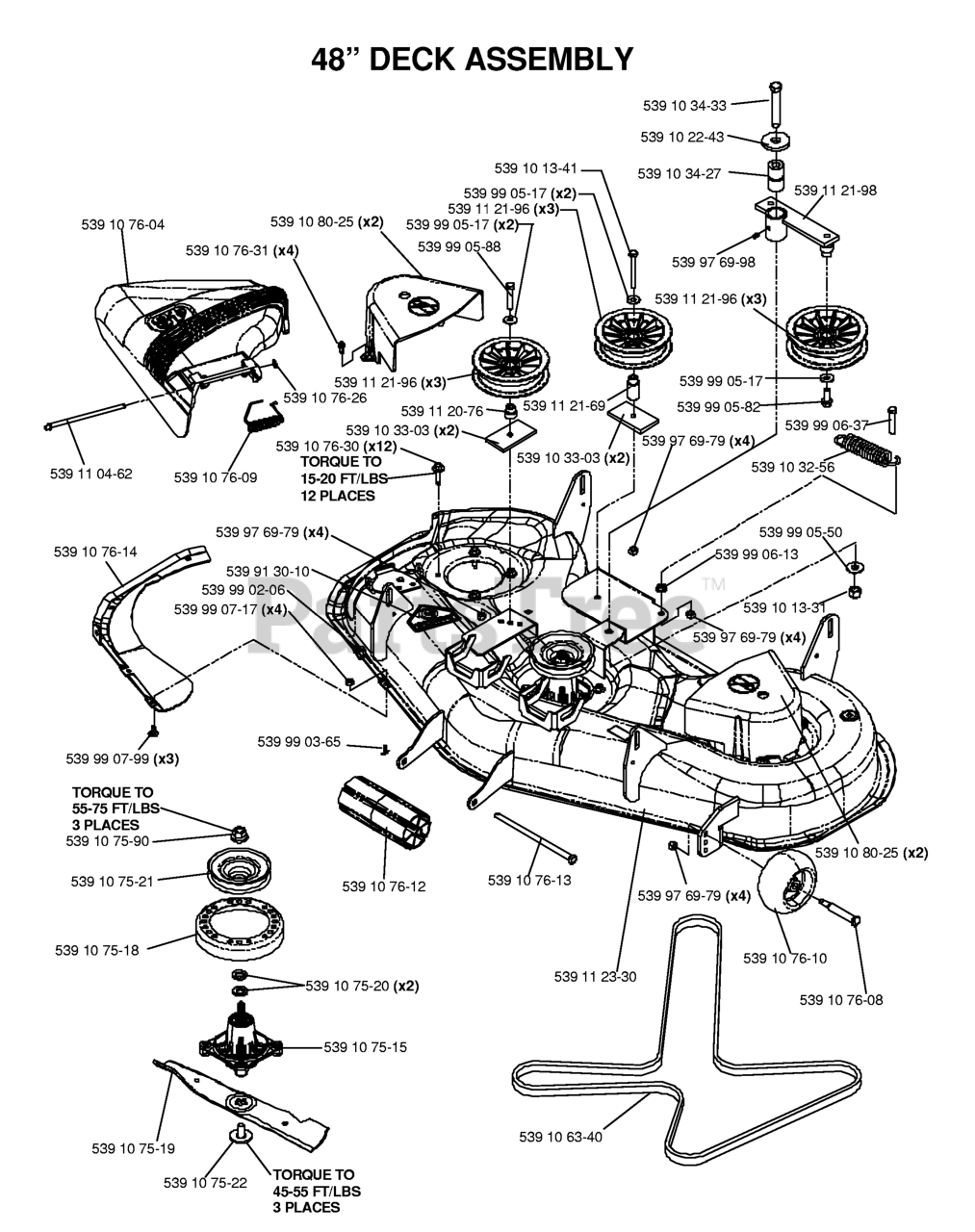

48"/122CM CUTTING DECK Parts Diagram

  • Title
539 10 75-20

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 20+

0

539 10 22-43

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

539 97 69-79

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539 10 80-25

Husqvarna 539108025

BELT SHIELD

$

$

Not available

539 99 03-65

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

539 10 63-40

Husqvarna 539106340

BELT, DECK

$133.99

$

Usually ships in 3-10 days

0

539 99 06-37

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.99

$

Usually ships in 3-10 days

0

539 10 75-19

Husqvarna 539107519

BLADE-HIGH LIFT/48"
(Superseded to 532180054)

$22.99

$

In Stock, Qty 20+

0

539 11 21-96

Husqvarna 539112196

IDLER
(Superseded to 589766102)

$31.99

$

In Stock, Qty 11

0

539 10 13-41

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

539 10 76-12

Husqvarna 539107612

NOSE ROLLER-48"
(Superseded to 532176066)

$13.99

$

In Stock, Qty 13

0

539 91 30-10

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

539 10 34-27

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, Qty 8

0

539 10 76-04

Husqvarna 539107604

DISCHARGE CHUTE
(Superseded to 532180655)

$45.99

$

In Stock, only 4 left!

0

539 11 23-30

Husqvarna 539112330

DECK W/DECALS 48 WSL

$

$

Not available

539 11 21-98

$121.99

$

In Stock, only 3 left!

0

539 10 33-03

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539 11 04-62

Husqvarna 539110462

ROD, HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

539 10 76-09

Husqvarna 539107609

TORSION SPRING

$5.99

$

In Stock, Qty 20+

0

539 10 76-31

Husqvarna 539107631

SCREW- 1/4-20 X 5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

539 10 75-15

Husqvarna 539107515

CUTTER HOUSING
(Superseded to 587125201)

$56.99

$

In Stock, only 4 left!

0

539 10 76-30

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

539 97 69-98

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

539 10 13-31

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

539 99 07-99

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

539 10 76-10

Husqvarna 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 10

0

539 99 06-13

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

539 10 76-13

Husqvarna 539107613

NOSE ROLLER ROD
(Superseded to 594092501)

$6.99

$

In Stock, Qty 19

0

539 99 05-50

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 10 75-21

Husqvarna 539107521

DRIVEN PULLEY-48"
(Superseded to 532174375)

$39.99

$

In Stock, Qty 6

0

539 10 75-90

Husqvarna 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

539 99 05-17

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 10 75-18

Husqvarna 539107518

STRIPPER-ROUND-UNIVERSAL
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

539 11 20-76

Husqvarna 539112076

IDLER BUSHING

$

$

Not available

539 10 34-33

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

539 10 76-26

Husqvarna 539107626

PUSH NUT
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

539 11 21-69

Husqvarna 539112169

IDLER BUSHING

$

$

Not available

539 10 76-08

Husqvarna 539107608

SHOULDER BOLT 1/2X2-5/8 ZD SPE
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

539 99 05-17

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 10 75-22

Husqvarna 539107522

BLADE BOLT ASSY-7/16" TB REPL
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

539 99 05-88

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 10

0

539 10 76-14

Husqvarna 539107614

VORTEX MOWER BAFFLE
(Superseded to 532174378)

$14.99

$

Usually ships in 3-10 days

0

539 10 32-56

$12.99

$

In Stock, Qty 5

0

539 99 02-06

Husqvarna 539990206

SCREW 5/16C X 1 HEX CAP
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

539 99 05-82

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available
