EZ 5221 KAA (968999292) - Husqvarna 52" Zero-Turn Mower (2006-06) Deck Assembly 52" Parts Diagram

52" Zero-Turn Mower

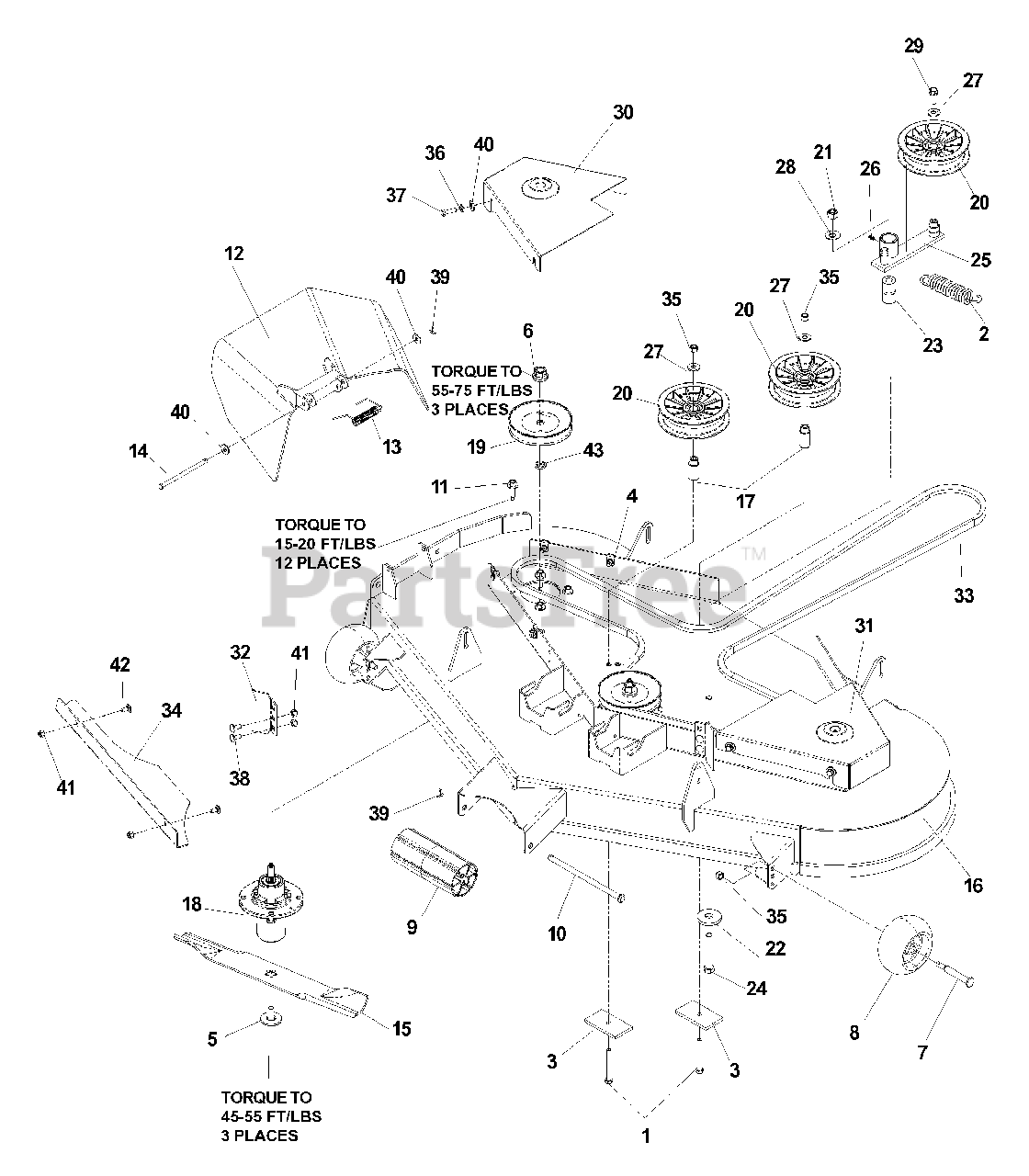

Deck Assembly 52" Parts Diagram

  • Title

1

Husqvarna 539101341

HCS, 3/8-16, GR5

$5.99

$

In Stock, Qty 12

0

2

Husqvarna 539103256

SPRING, EXTENSION

$12.99

$

In Stock, Qty 6

0

3

Husqvarna 539103303

PAD
(Superseded to 539106504)

$

$

Not available

4

Husqvarna 539104763

NUT, 5/16-18, RETAINER-U TYPE

$6.49

$

In Stock, Qty 9

0

5

Husqvarna 532174365

BOLT, 7/16, SPEC
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539107590

NUT, 9/16, CENTERLOCK, GR5
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

7

Husqvarna 532137644

SB, 1/2 X 2 5/8, SPEC
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

8

Husqvarna 532133957

WHEEL, GAUGE

$13.99

$

In Stock, Qty 20+

0

9

Husqvarna 532176066

ROLLER, NOSE

$13.99

$

In Stock, Qty 20+

0

10

Husqvarna 539107613

ROD, TOLLER, NOSE, NARROW
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

11

Husqvarna 539107630

SCREW, 5/16-18 X 1 3/8, WASH HD, SPEC
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 539110733

DISCHARGE CHUTE

$53.99

$

In Stock, only 2 left!

0

13

Husqvarna 539110735

SPRING, TORSION
(Superseded to 596646001)

$4.99

$

In Stock, only 4 left!

0

14

Husqvarna 539110736

PIN-CLEVIS, 5/16 DIA X 5.19

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539112079

BLADE, 18"

$26.99

$

In Stock, Qty 20+

0

16

Husqvarna 539112749

DECK W/DECALS
(Superseded to 581505301)

$

$

Not available

17

Husqvarna 539112169

IDLER BUSHING

$

$

Not available

18

Husqvarna 539112170

HOUSING

$79.99

$

In Stock, Qty 20+

0

19

Husqvarna 539112171

PULLEY
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

20

Husqvarna 539112196

IDLER PULLEY, NYLON
(Superseded to 589766102)

$31.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539101331

NUT, 1/2-13, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

22

Husqvarna 539102243

WASHER, .65 X 2 X .25, SUPPORT

$

$

Not available

23

Husqvarna 539103427

BUSHING-PIVOT

$9.49

$

In Stock, only 3 left!

0

24

Husqvarna 539103433

HCS, 1/2-13 X 3 1/4, GR5

$6.99

$

In Stock, only 4 left!

0

25

Husqvarna 539112198

IDLER ARM

$121.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539976998

ZERK, STRAIGHT, 1/4-28
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 539990517

WASHER, 3/8

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990550

WASHER, .562 X 1.38 X 14

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990582

HCS, 3/8-16 X 1, GR5, WHIZLK

$

$

Not available

30

Husqvarna 539112242

BELT SHIELD, RIGHT

$72.99

$

In Stock, only 1 left!

0

31

Husqvarna 539112244

BELT SHIELD, LEFT

$72.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539112248

DECK STOP

$15.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539112335

BELT

$

$

Not available

34

Husqvarna 539112417

CONFINEMENT PLATE
(Superseded to 593565002)

$31.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539976979

NUT, 3/8-16, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 539990187

WASHER, 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

37

Husqvarna 539990209

HCS, 5/16-18 X 1, GR5

$1.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990316

RHSNB, 5/16-18 X 3/4, GR5
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 539990365

PIN COTTER, 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

40

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

41

Husqvarna 539990717

NUT, 5/16-18, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 539990799

RHSNB, 5/16-18 X 5/8, GR5
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 539107520

WASHER, .675, SPACER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0
