EZ 4824 K (966038201) - Husqvarna 48" Zero-Turn Mower (2010-06) Frame Parts Diagram

48" Zero-Turn Mower

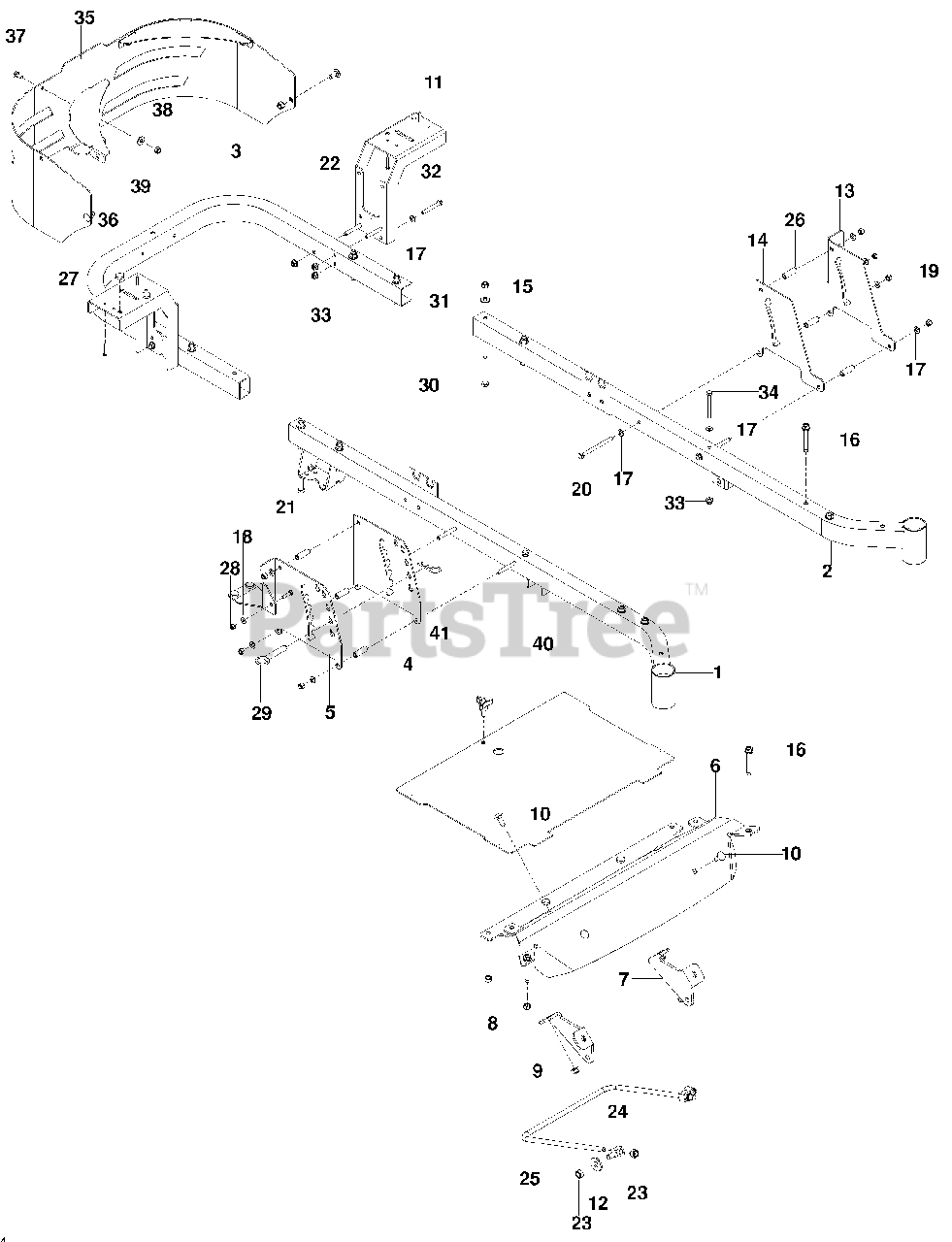

Frame Parts Diagram

  • Title

1

Husqvarna 510177503

FRAME, FRONT RT ORG
(Superseded to 589283402)

$91.99

$

Usually ships in 3-10 days

0

2

Husqvarna 510177403

FRAME, FRONT LT ORG
(Superseded to 589283302)

$91.99

$

Usually ships in 3-10 days

0

3

Husqvarna 516001803

FRAME, REAR ORG

$169.99

$

Usually ships in 3-10 days

0

4

Husqvarna 510245604

PLATE, OUTER HEIGHT BLK

$72.99

$

Usually ships in 3-10 days

0

5

Husqvarna 510240502

PLATE, INNER HEIGHT BLK

$21.99

$

Usually ships in 3-10 days

0

6

Husqvarna 522719502

FOOT REST ORG

$132.99

$

Usually ships in 3-10 days

0

7

Husqvarna 522443302

MOUNT, STRUT, RT

$34.99

$

Usually ships in 3-10 days

0

8

Husqvarna 522443304

MOUNT, STRUT, LT

$398.99

$

Usually ships in 3-10 days

0

9

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC

$

$

Not available

10

Husqvarna 539990645

RHSNB 3/8-16 x 1

$

$

Not available

11

Husqvarna 510225902

SUPPORT, FENDER BLK

$78.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539109554

WASHER 1/2 FLAT

$

$

Not available

13

Husqvarna 510261802

PLATE, OUTER BRAKE BLK

$60.99

$

Usually ships in 3-10 days

0

14

Husqvarna 510206703

PLATE, BRAKE LATCH BLK

$48.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539111976

BOLT 3/8-16 x 25/8 THD FRM

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539990055

WASHER 1/4 FLAT SAE

$3.99

$

In Stock, Qty 19

0

19

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539102335

HCS 5/16-18 x 4

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539977761

HCS 1/4-20 x 1

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539110674

SCREW 10-12 x 1 1/4 WSH HD

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539119124

NUT 7/16-14 HEX NYLOC

$

$

Not available

24

Husqvarna 522924201

SWIVEL

$9.99

$

Usually ships in 3-10 days

0

25

Husqvarna 521938101

LINK, FRONT SUSPENSION

$

$

Not available

26

Husqvarna 515988101

SPACER 1/2 OD x 1 1/2
(Superseded to 580486101)

$

$

Not available

27

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

28

Husqvarna 539976978

NUT 1/4-20 HEX NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

29

Husqvarna 539102526

LIFT PIN

$21.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539101341

HCS 3/8-16 x 3

$5.99

$

In Stock, Qty 12

0

31

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539976938

HCS 5/16-18 x 2 1/4

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

34

Husqvarna 539101721

HCS 5/16-18 x 2 3/4

$4.99

$

In Stock, Qty 7

0

35

Husqvarna 516016302

GUARD, WIDE ENGINE ORG

$

$

Not available

36

Husqvarna 516016402

SUPPORT, CORNER ORG

$

$

Not available

37

Husqvarna 539111786

RHSSNB 1/4-20 x 5/8

$2.49

$

Usually ships in 3-10 days

0

38

Husqvarna 539976978

NUT 1/4-20 HEX NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

39

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

40

Husqvarna 522842901

FOOT PLATE w/DECALS ORG

$

$

Not available

41

Husqvarna 539976989

HAIRPIN

$3.99

$

Usually ships in 3-10 days

0
