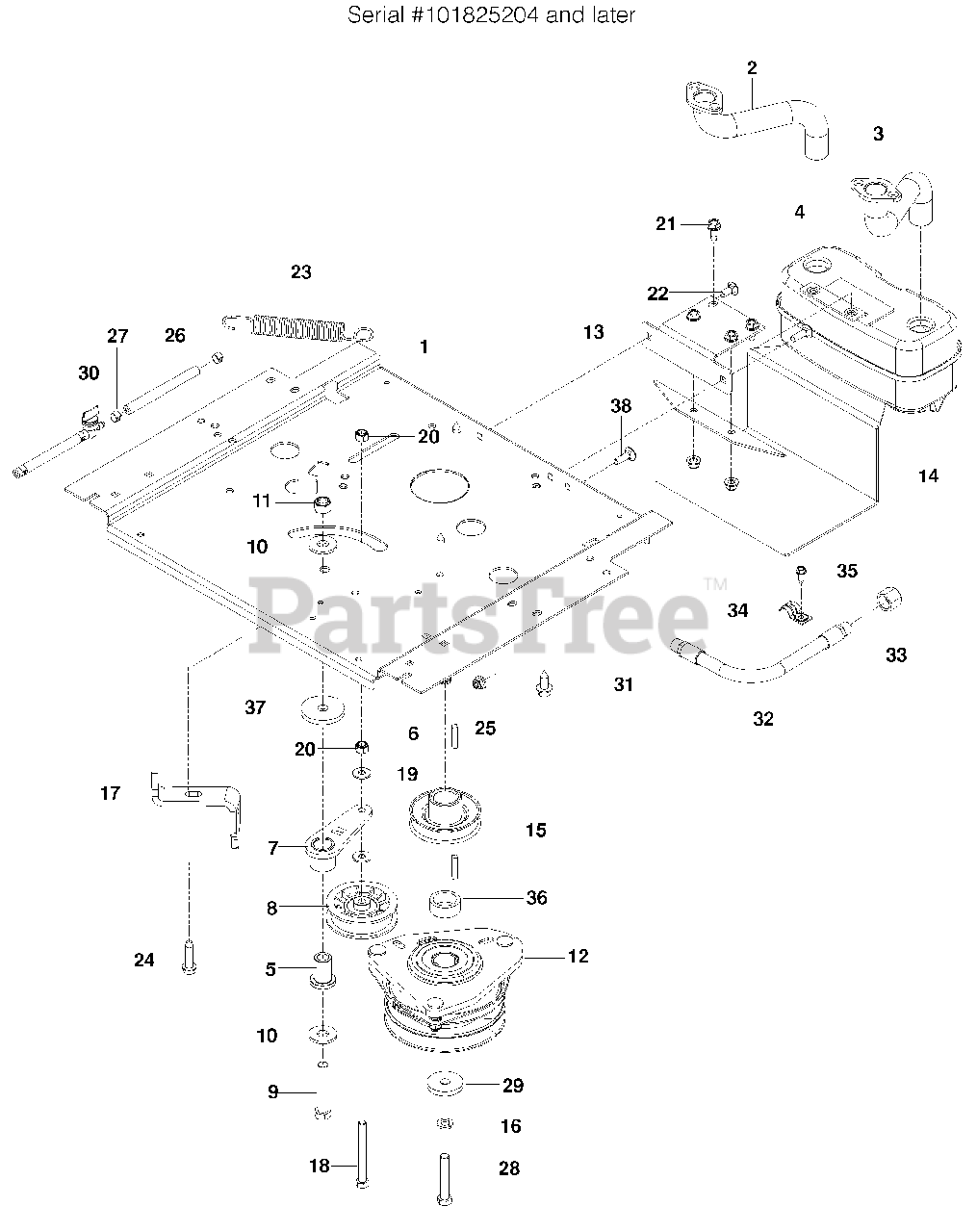

EZ 4824 K (966038201) - Husqvarna 48" Zero-Turn Mower (2010-06) Engine Plate Parts Diagram

48" Zero-Turn Mower

Engine Plate Parts Diagram

  • Title

1

Husqvarna 574734402

PLATE, ENGINE BLK

$

$

Not available

2

Husqvarna 532146699

EXHAUST TUBE, RT
(Superseded to 583954501)

$22.99

$

In Stock, only 1 left!

0

3

Husqvarna 532146700

EXHAUST TUBE, LT
(Superseded to 583954801)

$20.99

$

In Stock, only 1 left!

0

4

Husqvarna 539131604

MUFFLER ASM TWIN

$45.99

$

In Stock, only 4 left!

0

5

Husqvarna 522432501

PIVOT, IDLER

$

$

Not available

6

Husqvarna 539912757

KEY 1/4 SQ x 1 1/4

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539112092

ARM, IDLER
(Superseded to 583593901)

$13.99

$

In Stock, only 3 left!

0

8

Husqvarna 539110311

PULLEY, IDLER

$17.99

$

In Stock, Qty 20+

0

9

Husqvarna 539101332

HCS 1/2 -13 x 3 3/4

$5.99

$

In Stock, only 3 left!

0

10

Husqvarna 539109554

WASHER 1/2 FLAT

$

$

Not available

11

Husqvarna 539101331

NUT 1/2 HEX NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 532179335

CLUTCH

$341.99

$

Usually ships in 3-10 days

0

13

Husqvarna 510260402

BRACKET, MUFFLER BLK
(Superseded to 581886702)

$34.99

$

In Stock, only 1 left!

0

14

Husqvarna 510260502

GUARD, MUFFLER BLK

$91.99

$

In Stock, only 1 left!

0

15

Husqvarna 539113436

PULLEY, ENGINE
(Superseded to 525435002)

$

$

Not available

16

Husqvarna 539990247

WASHER 7/16 SLW

$

$

Not available

17

Husqvarna 522459708

STOP, CLUTCH BLK

$

$

Not available

18

Husqvarna 539109389

HCS 3/8-16 x 3 1/2 TPBLT

$5.99

$

In Stock, only 3 left!

0

19

Husqvarna 539990692

WASHER 5/16 STD FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539107475

BOLT 5/16-18 x 3/4 THD FRM

$6.49

$

In Stock, only 4 left!

0

22

Husqvarna 539990316

RHSNB 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 7

0

24

Husqvarna 539110025

BOLT 3/8-16 x 11/2 THD FRM

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

26

Husqvarna 539110425

FUEL LINE 5"
(Superseded to 587044805)

$3.99

$

In Stock, Qty 6

0

27

Husqvarna 539912222

CLAMP, HOSE

$4.99

$

In Stock, only 1 left!

0

28

Husqvarna 539991120

HCS 7/16-20 x 2 1/2

$6.99

$

In Stock, Qty 8

0

29

Husqvarna 539106504

WASHER, CLUTCH

$

$

Not available

30

Husqvarna 539916325

VALVE, FUEL

$47.99

$

In Stock, only 1 left!

0

31

Husqvarna 532120616

HHFS 3/8-16 x 1 THD FRM
(Superseded to 817120616)

$5.99

$

In Stock, Qty 17

0

32

Husqvarna 539101362

HOSE, DRAIN

$47.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539101364

PLUG, OIL

$7.49

$

Usually ships in 3-10 days

0

34

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

35

Husqvarna 539990362

SCREW 1/4 -20 x 5/8 SLF TAP

$4.99

$

In Stock, Qty 12

0

36

Husqvarna 576747401

SPACER

$

$

Not available

37

Husqvarna 539112670

WASHER, HEAVY

$4.99

$

In Stock, Qty 10

0

38

Husqvarna 539990208

RHSNB 5/16-18 x 1

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 532198316

HARNESS, CLUTCH ADPTR

Note: NOT SHOWN

$10.99

$

In Stock, only 1 left!

0
