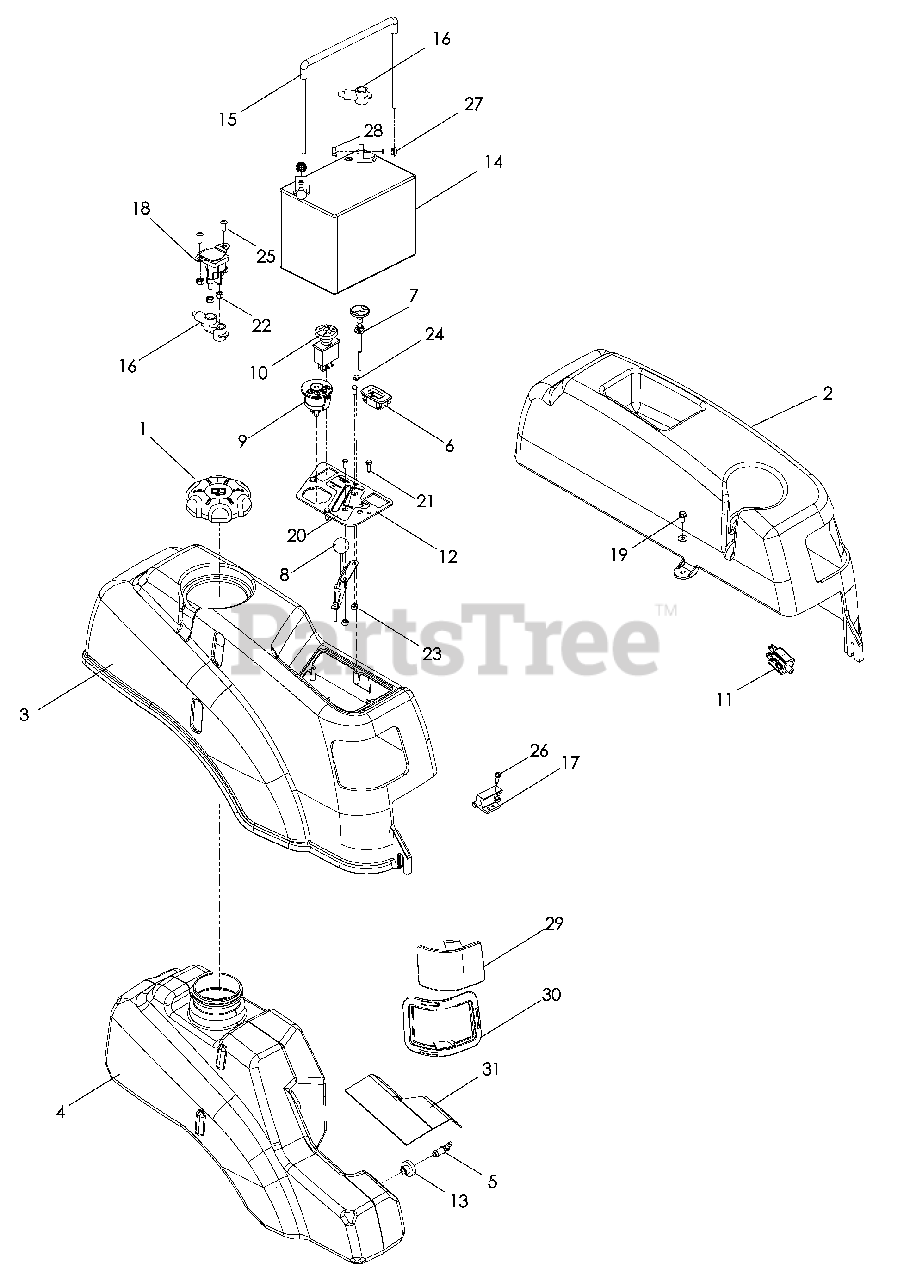

EZ 4824 K (966038201) - Husqvarna 48" Zero-Turn Mower (2009-01) Ignition Parts Diagram

48" Zero-Turn Mower

Ignition Parts Diagram

  • Title

1

Husqvarna 539130393

CAP, FUEL

$

$

Not available

2

Husqvarna 539130374

FENDER, LT

$93.99

$

In Stock, only 1 left!

0

3

Husqvarna 539130375

FENDER, RT

$

$

Not available

4

Husqvarna 522524801

TANK, FUEL

$

$

Not available

5

Husqvarna 539110432

ELBOW, TANK
(Superseded to 532139277)

$8.99

$

In Stock, Qty 7

0

6

Husqvarna 539110074

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

7

Husqvarna 539130209

CONTROL, CHOKE 96588401 ONLY
(Superseded to 539112439)

$34.99

$

In Stock, only 1 left!

0

Husqvarna 539130207

CONTROL, CHOKE
(Superseded to 539102733)

$56.99

$

In Stock, Qty 5

0

8

Husqvarna 539112734

CABLE, THROTTLE 96588401 ONLY

$34.99

$

Usually ships in 3-10 days

0

Husqvarna 539103275

CABLE, THROTTLE

$34.99

$

In Stock, only 1 left!

0

9

Husqvarna 539107541

SWITCH, IGNITION
(Superseded to 532175566)

$26.99

$

In Stock, Qty 7

0

10

Husqvarna 539101768

SWITCH, CLUTCH
(Superseded to 582107601)

$28.99

$

In Stock, only 4 left!

0

11

Husqvarna 539113792

SWITCH, BRAKE

$17.99

$

In Stock, Qty 12

0

12

Husqvarna 539112735

PLATE, CONTROL

$27.99

$

In Stock, only 1 left!

0

13

Husqvarna 539105245

GROMMET, RUBBER

$4.99

$

In Stock, Qty 12

0

14

Husqvarna 539102436

BATTERY
(Superseded to 579411601)

$

$

Not available

15

Husqvarna 539131209

TIE DOWN, BATTERY

$31.99

$

In Stock, Qty 5

0

16

Husqvarna 539116400

TERMINAL COVER

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539101080

SWITCH, NC

$17.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539101714

SOLENOID

$26.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539108461

BOLT ¼-20 x ½ HWST

$4.99

$

In Stock, Qty 6

0

20

Husqvarna 539112740

DECAL, CONSOLE

$

$

Not available

21

Husqvarna 539990411

SCREW 10-24 x ½ SLT HD

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539976978

NUT ¼-20 HEX NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

23

Husqvarna 539976977

NUT 10-24 HEX NYLOC

$

$

Not available

24

Husqvarna 539110673

SCREW 10-12 x ¾ WSH HD

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539111229

SCREW ¼-20 x 5/8 BTN SKT

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539991034

SCREW 10-24 x 5/8 WSH HD

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990316

RHSNB 5/16-18 x ¾
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539990585

NUT 5/16-18 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539110056

LENS, LT
(Superseded to 539110457)

$7.49

$

In Stock, only 1 left!

0

30

Husqvarna 539110057

LENS, RT
(Superseded to 539110453)

$7.49

$

Usually ships in 3-10 days

0

31

Husqvarna 539110455

LENS RIM, LT

$6.49

$

Usually ships in 3-10 days

0

Husqvarna 539110451

LENS RIM, RT

$6.49

$

Usually ships in 3-10 days

0

Husqvarna 522559101

SHIELD, HEAT

$37.99

$

Usually ships in 3-10 days

0

Husqvarna 539103306

POSITIVE CABLE, LONG
(Superseded to 586108201)

Note: NOT SHOWN

$10.99

$

In Stock, only 2 left!

0

Husqvarna 539110068

BATTERY CABLE NEGATIVE

Note: NOT SHOWN

$9.49

$

Usually ships in 3-10 days

0

Husqvarna 515980501

HARNESS, WIRING
(Superseded to 580798101)

Note: NOT SHOWN

$145.99

$

Usually ships in 3-10 days

0
