EZ 4824 - Husqvarna 48" Zero-Turn Mower (2009-09) WHEELS & TIRES Parts Diagram

48" Zero-Turn Mower

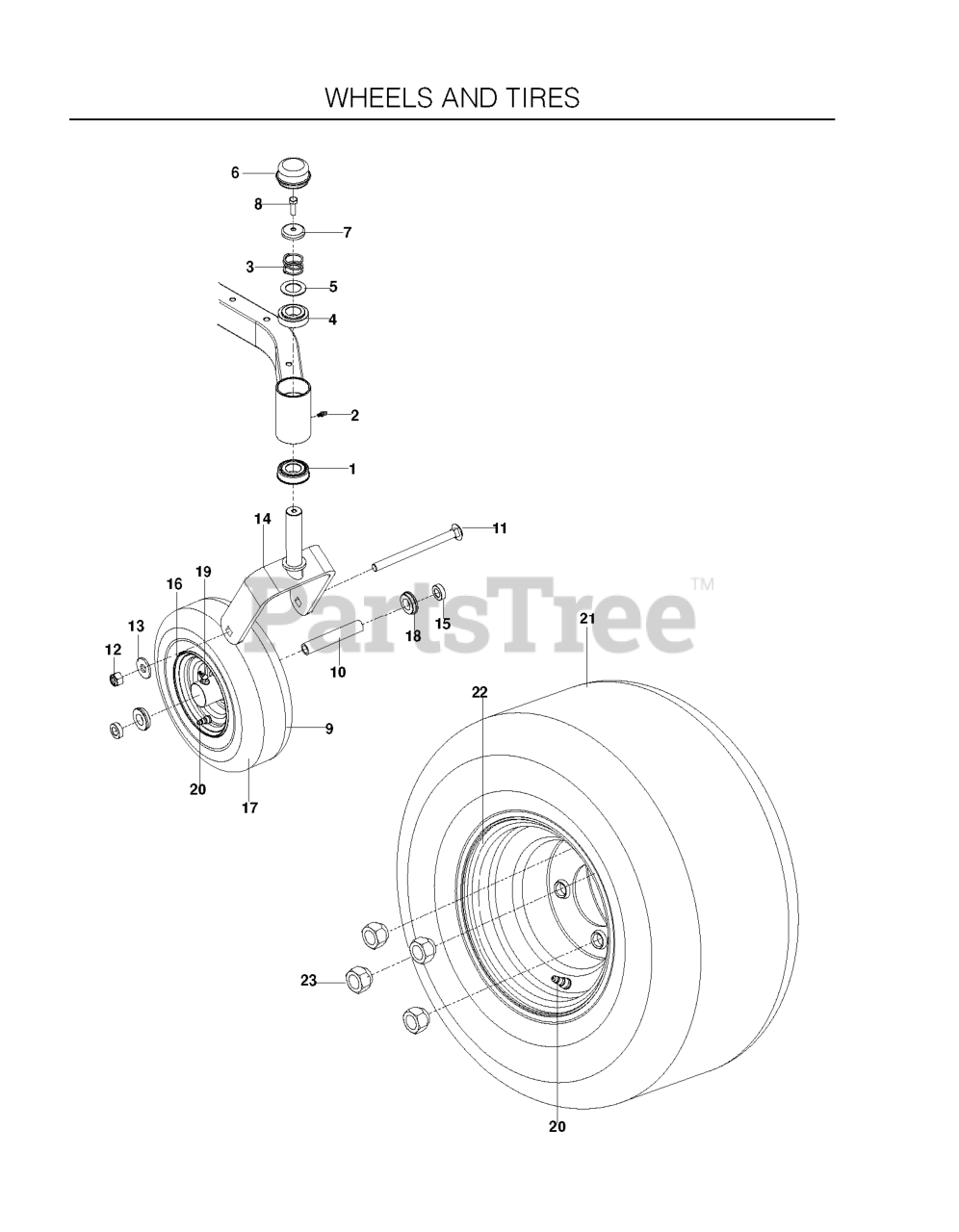

WHEELS & TIRES Parts Diagram

  • Title

23

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

16

Husqvarna 539106994

RIM

$

$

Not available

17

Husqvarna 539106995

TIRE - CASTER
(Superseded to 539114697)

$

$

Not available

21

Husqvarna 539131110

TIRE ASM, 20 X 8-8

$182.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539114805

SPACER, 5/16"

$12.99

$

In Stock, Qty 8

0

11

Husqvarna 539121159

RHSNB 1/2-13 X 6.50 GR2 ZD

$24.99

$

In Stock, only 2 left!

0

8

Husqvarna 539115566

5/16-18X1 HHB G5W/NY
(Superseded to 874950516)

$

$

Not available

4

Husqvarna 539117901

BUSHING, CASTER

$10.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539112217

RIM.8X7.W/8".OFFSET.SILVER.ZTR

$96.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539105543

SPACER

$10.99

$

In Stock, only 2 left!

0

18

Husqvarna 539102484

BEARING RETAINER

$5.99

$

In Stock, only 1 left!

0

5

Husqvarna 539115675

WASHER, 1.025 ID X 1.64

$

$

Not available

2

Husqvarna 539115638

ZERK, 3/16, DRIVE IN
(Superseded to 596623501)

$3.99

$

In Stock, only 4 left!

0

6

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 539115749

CASTER.PLUG

$

$

Not available

20

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

14

Husqvarna 510186501

YOKE.CASTER.ORANGE
(Superseded to 510186505)

$109.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

9

Husqvarna 539110333

TIRE COMPLETE
(Superseded to 590486802)

$87.99

$

In Stock, only 1 left!

0

19

Husqvarna 539103300

ZERK

$4.99

$

In Stock, Qty 18

0

Husqvarna 539131109

TIRE 20 X 8, TURF

$

$

Not available

1

Husqvarna 539112660

BEARING FLANGED

$34.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539115747

SPRING, CASTER

$

$

Not available
