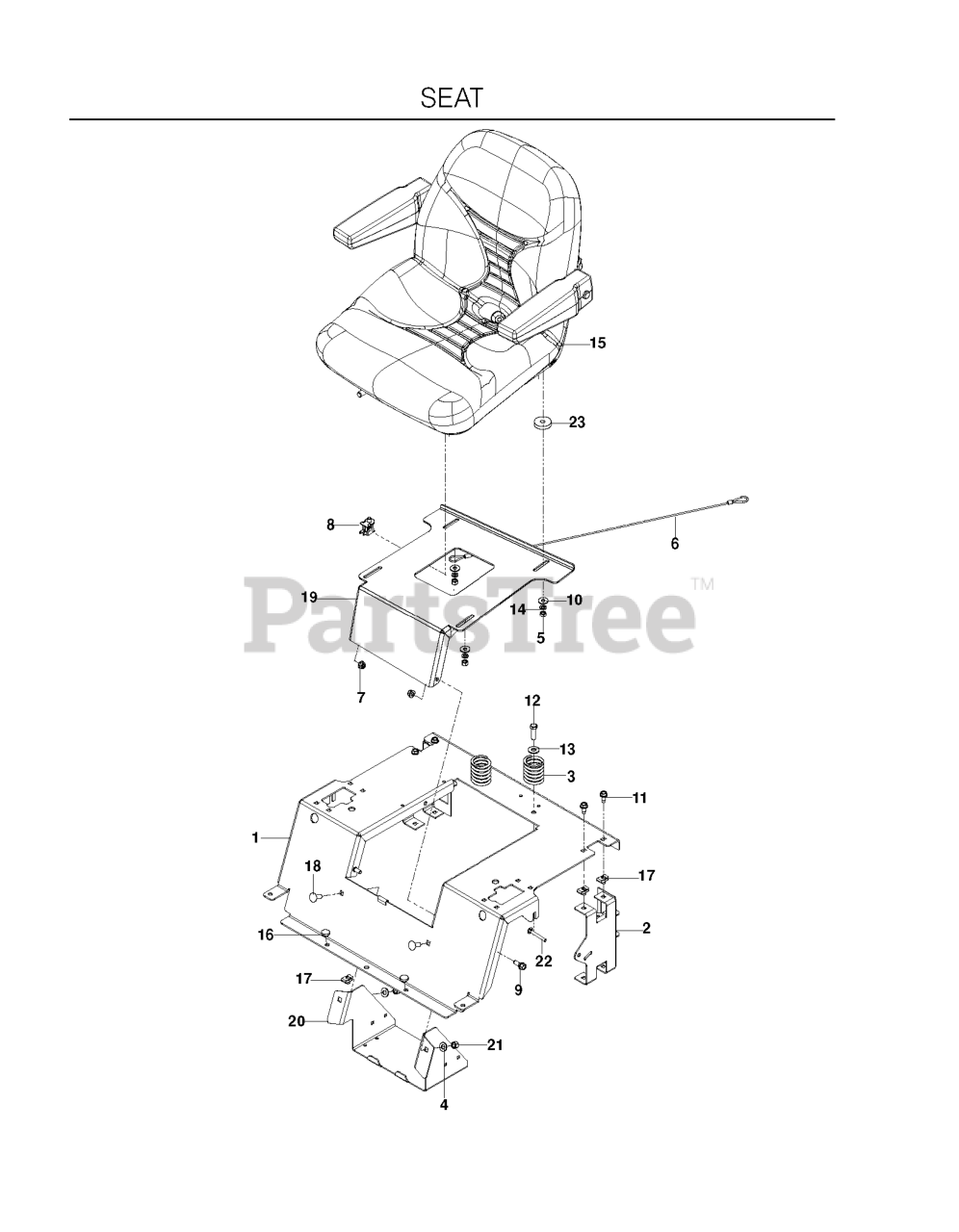

EZ 4824 - Husqvarna 48" Zero-Turn Mower (2009-09) SEAT Parts Diagram

48" Zero-Turn Mower

SEAT Parts Diagram

  • Title
2

Husqvarna 510182902

SUPPORT, REAR SEAT, BLACK

$66.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 525811503

PAN, SEAT, ORG

$

$

Not available

10

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

18

Husqvarna 539990645

RHSNB 3/8C X 1

$

$

Not available

3

Husqvarna 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

20

Husqvarna 510231302

BOX, BATTERY, BLACK

$182.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539119741

SEAT SWITCH
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

21

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539130873

SEAT
(Superseded to 501580402)

$797.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

16

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

9

Husqvarna 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$17.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

Note: U TYPE

$6.49

$

In Stock, Qty 12

0

14

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

1

Husqvarna 522545402

SUPPORT, SEAT, FLAT ORANGE

$

$

Not available

22

Husqvarna 510422701

RHSNB 5/16-18 X 2-1/2 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539103247

SEAT LANYARD

$21.99

$

In Stock, only 2 left!

0

12

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

7

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

23

Husqvarna 539115789

WASHER NYLON

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0
