EZ 4824 CA (966659501) - Husqvarna 48" Zero-Turn Mower, CARB (2012-08) SEAT Parts Diagram

48" Zero-Turn Mower, CARB

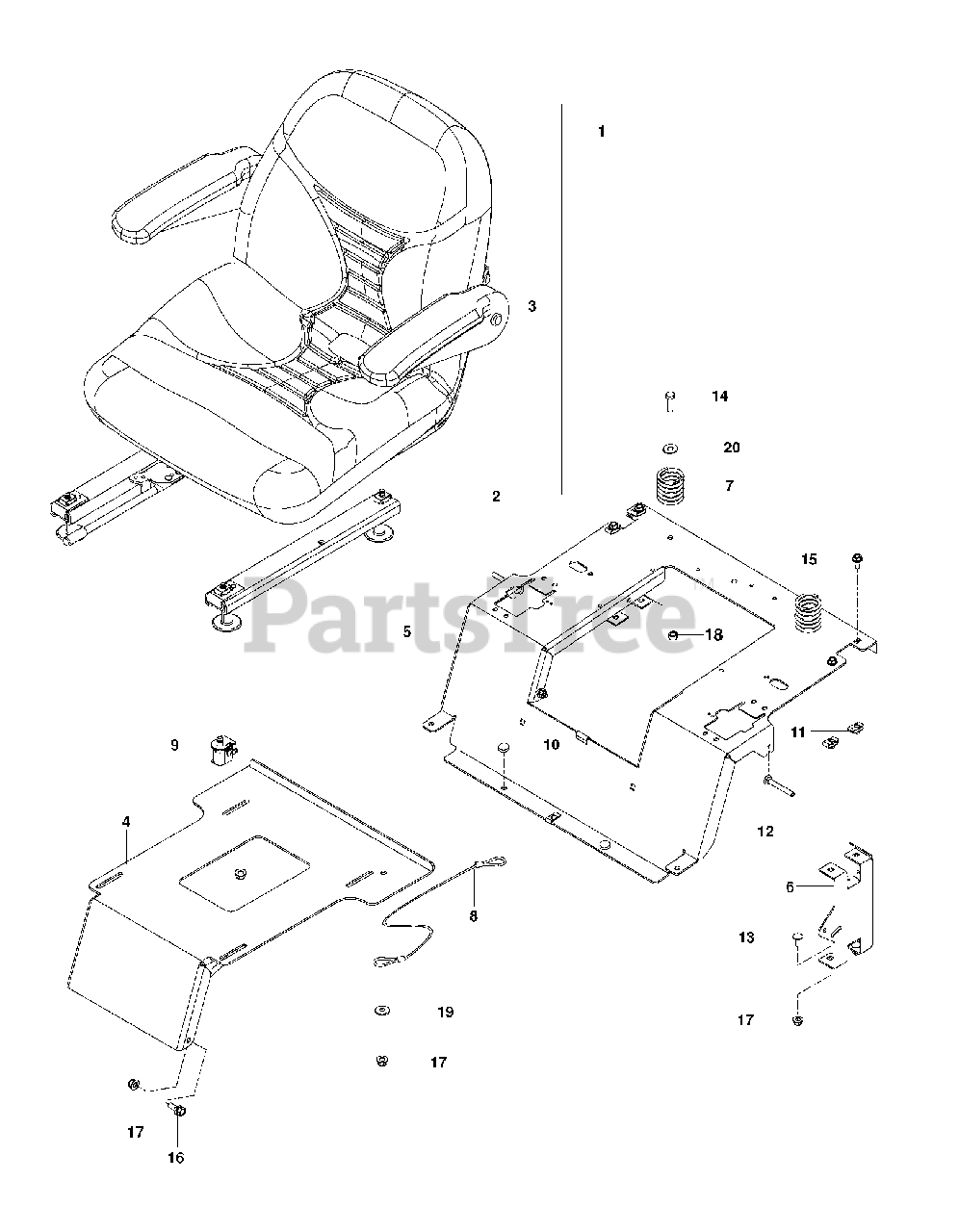

SEAT Parts Diagram

  • Title

1

Husqvarna 539130873

SEAT
(Superseded to 501580402)

$797.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539112037

TRACK ADJUSTMENT KIT

$157.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539112036

ARMREST KIT, LT SQUARE END
(Superseded to 574201602)

$91.99

$

Usually ships in 3-10 days

0

4

Husqvarna 576916802

PAN, SEAT ORG

$182.99

$

Usually ships in 3-10 days

0

5

Husqvarna 577260602

SUPPORT SEAT FLAT ORANGE

$

$

Not available

6

Husqvarna 580308202

SUPPORT REAR SEAT BLACK

$22.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Husqvarna 539103247

SEAT LANYARD

$21.99

$

In Stock, only 2 left!

0

9

Husqvarna 539119741

SEAT SWITCH
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

10

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

11

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

12

Husqvarna 510422701

RHSNB 5/16-18 X 2-1/2 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

15

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

16

Husqvarna 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$17.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

18

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 539990517

RP WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0
