EZ 4824 CA (966659501-03) - Husqvarna 48" Zero-Turn Mower, CARB (2013-10) HYDRAULIC PUMP - MOTOR Parts Diagram

48" Zero-Turn Mower, CARB

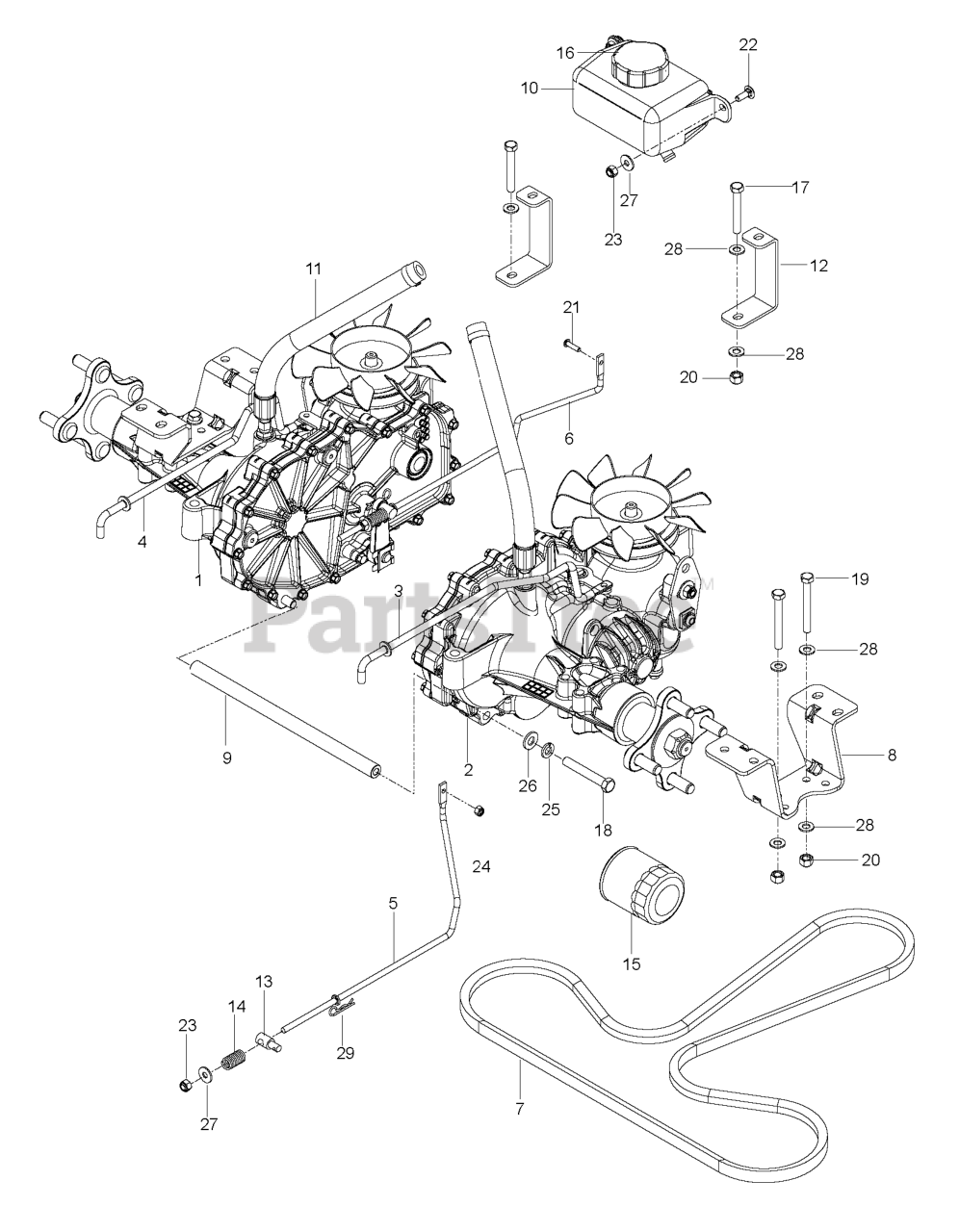

HYDRAULIC PUMP - MOTOR Parts Diagram

  • Title
12

Husqvarna 522460702

SUPPORT.FRONT.TRANS.BLACK.
(Superseded to 580806502)

$6.99

$

Usually ships in 3-10 days

0

6

Husqvarna 574030501

LINKAGE.BRAKE.LT

$

$

Not available

24

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

29

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 19

0

9

Husqvarna 510184103

SPACER TUBE, EZT, 11.08

$

$

Not available

27

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

15

Husqvarna 539113466

HG_FILTER, ZT4800 52114

$60.99

$

Usually ships in 3-10 days

0

1

Husqvarna 522447402

HG_TRANS, ZT-2800 RT

$1011.99

$

Usually ships in 3-10 days

0

11

$42.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.99

$

Usually ships in 3-10 days

0

3

Husqvarna 522706002

ROD, BYPASS, RT

$7.99

$

Usually ships in 3-10 days

0

8

Husqvarna 510185102

EZT MOUNT, REAR, BLACK

$37.99

$

In Stock, only 2 left!

0

13

Husqvarna 539112308

BRAKE SWIVEL

$10.99

$

In Stock, only 1 left!

0

2

Husqvarna 522447401

HG_TRANS, ZT-2800 LEFT

$

$

Not available

5

Husqvarna 574030502

LINKAGE, BRAKE RT

$

$

Not available

4

Husqvarna 522706001

ROD, BYPASS, LT

$9.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 539112318

HG_EXPANSION TANK W/CAP 71354

$80.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

23

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

21

Husqvarna 539108535

SCR #10-24 X 3/4

$4.99

$

In Stock, Qty 6

0

16

Husqvarna 539112449

HG_CAP 52375

$

$

Not available

17

$4.99

$

In Stock, only 2 left!

0

7

Husqvarna 539120772

BELT, EZT HYDRO

$40.99

$

In Stock, only 3 left!

0

$22.99

$

In Stock, only 1 left!

0

22

Husqvarna 539990074

RHSNB 1/4C X 3/4
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0
