EZ 4824 CA (966659501-00) - Husqvarna 48" Zero-Turn Mower, CARB (2010-10) SEAT Parts Diagram

48" Zero-Turn Mower, CARB

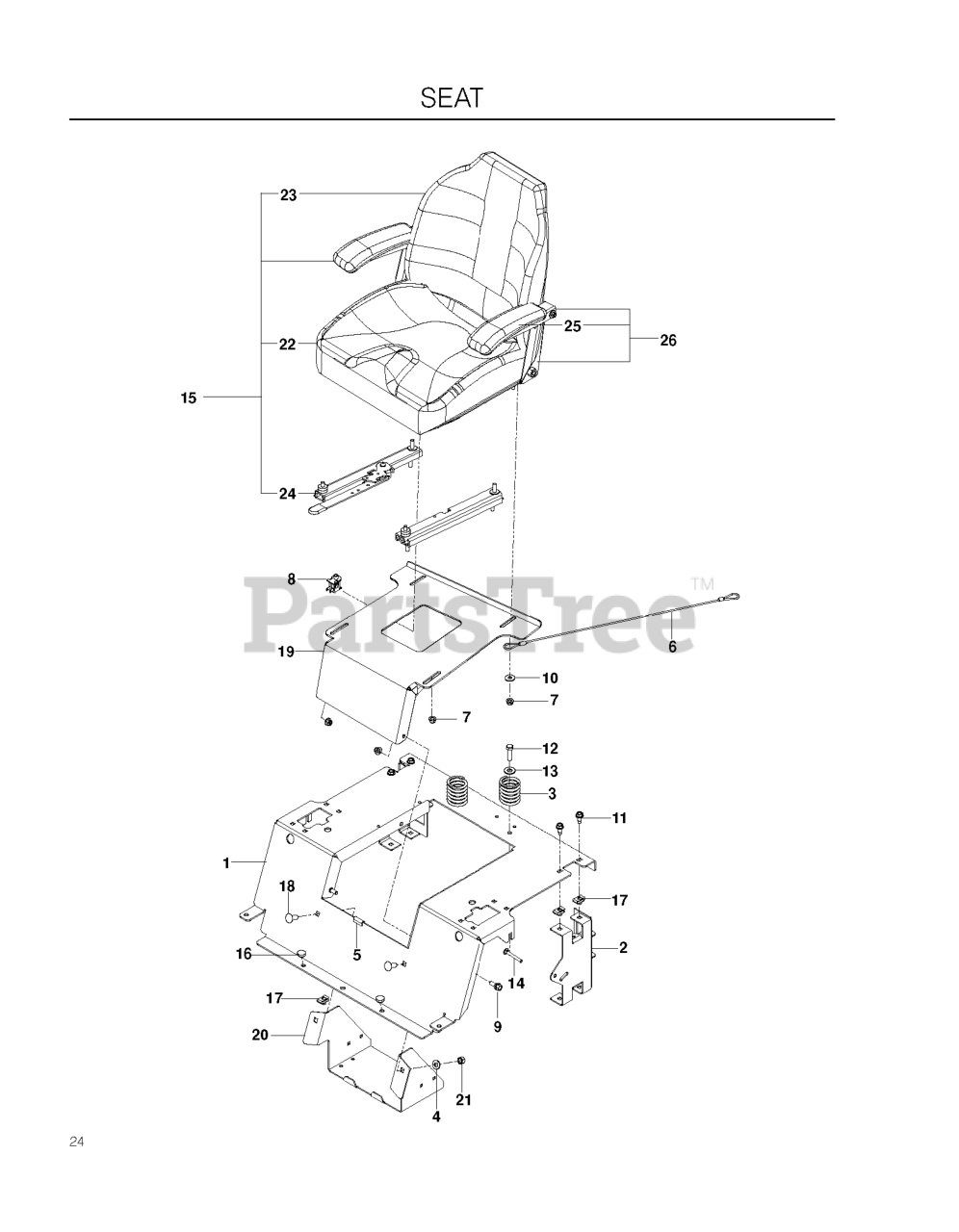

SEAT Parts Diagram

  • Title

31

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

19

Husqvarna 532132827

BOLT SHD 5/16-18

$

$

Not available

260

Husqvarna 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

55

Husqvarna 532199498

ARM.IDLER.92 CRD.2006
(Superseded to 583252901)

$30.99

$

Usually ships in 3-10 days

0

80

Husqvarna 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

16

Husqvarna 532427985

BLADE.3N1.RH.CRD.97

$66.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532128774

HOUSING.MANDREL.VENTED (MACHD)

$34.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

13

Husqvarna 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

56

Husqvarna 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, only 1 left!

0

117

Husqvarna 532174873

RP WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

306

Husqvarna 532423063

WASHER 5/16"
(Superseded to 583400601)

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532165557

BAR.SWAY.92.CRD

$

$

Not available

44

Husqvarna 532430210

COVER MANDREL LEFT
(Superseded to 583456401)

$15.99

$

Usually ships in 3-10 days

0

312

Husqvarna 532430775

COVER LEFT
(Superseded to 583462101)

$21.99

$

Usually ships in 3-10 days

0

116

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

124

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

298

Husqvarna 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

300

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

119

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532146763

PULLEY.IDLER.4.25

$

$

Not available

69

Husqvarna 532165482

SHAFT.ASM.W/LWR.BRG.RH.THREAD

$68.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532110485

BEARING

$13.99

$

In Stock, Qty 11

0

9

Husqvarna 810030600

LOCKWASHER
(Superseded to 810040600)

$4.99

$

In Stock, Qty 15

0

131

Husqvarna 532165661

CHUTE BAGGER

$93.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532429121

DECK.WLDT.97.CRD.2GWB.
(Superseded to 583486301)

$399.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532427981

BRACKET.ASM.SUSP.REAR.RH.

$

$

Not available

32

Husqvarna 532153532

PULLEY MANDREL
(Superseded to 532173435)

$22.99

$

In Stock, only 2 left!

0

22

Husqvarna 532431169

BRACKET.SUPT.IDLER.REAR.RH

$

$

Not available

61

Husqvarna 532199486

SPRING
(Superseded to 583252601)

$10.99

$

Usually ships in 3-10 days

0

17

Husqvarna 872140610

BOLT.3/8-14X1.25
(Superseded to 583611601)

$

$

Not available

10

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

20

Husqvarna 532181713

BOLT.3/8-24X1.25GR8. LHTHRD
(Superseded to 583117001)

$4.99

$

In Stock, Qty 11

0

45

Husqvarna 532430209

COVER MANDREL RIGHT
(Superseded to 583456301)

$15.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532429532

BELT.DRIVE.CRD.97.2010
(Superseded to 584454401)

$

$

Not available

311

Husqvarna 532430774

COVER RIGHT
(Superseded to 583462001)

$21.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

33

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 12

0

8

Husqvarna 532181712

BOLT.3/8-24X1.25 GR8
(Superseded to 583116901)

$7.49

$

Usually ships in 3-10 days

0

41

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 532431864

BRACKET.ASM.BAR.SWAY.CHASS

$24.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532427984

BLADE.3N1.LH.CRD.97

$66.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532181858

BEARING HOUSING
(Superseded to 583118301)

$96.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 532431783

CUTTING DECK REPLACEMENT COMPL
(Superseded to 583474301)

Note: Replacement Mower, Complete (Std. Deck - Order separately guage wheel components key nos. 116, 117 & 119)

$897.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

- -

Husqvarna 532181857

BEARING HOUSING
(Superseded to 583118201)

Note: Mandrel Assembly (Includes housing, shaft assembly, and bearing only - pulley/nut/washer and blade bolt/washers not included)

$91.99

$

Usually ships in 3-10 days

0

40

Husqvarna 873680600

LOCKNUT

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 510422701

RHSNB 5/16-18 X 2-1/2 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

16

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

5

Husqvarna 539118102

CLIP-1.06

$7.49

$

Usually ships in 3-10 days

0

19

Husqvarna 576916802

PAN, SEAT ORG

$182.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

22

Husqvarna 576702002

CUSHION ASSY FOR EVC 907

$188.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 539103247

SEAT LANYARD

$21.99

$

In Stock, only 2 left!

0

18

Husqvarna 539990645

RHSNB 3/8C X 1

$

$

Not available

24

Husqvarna 576702004

4"SINGLE LOCK TRACK SET W/HDWR

$159.99

$

In Stock, only 1 left!

0

25

Husqvarna 576702005

BLACK SELFSKIN-ARM PAD ONLY

$

$

Not available

8

Husqvarna 539119741

SEAT SWITCH
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

12

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 1 left!

0

Husqvarna 576702007

RIGHT SELFSKINNED 907 ARM W/BR

$80.99

$

Usually ships in 3-10 days

0

15

Husqvarna 576702001

SEAT.907.VINYL.HUSQVARNA
(Superseded to 501580402)

$797.99

$

Usually ships in 3-10 days

0

2

Husqvarna 574522702

SUPPORT, REAR SEAT, BLACK
(Superseded to 580308202)

$22.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

1

Husqvarna 522545402

SUPPORT, SEAT, FLAT ORANGE

$

$

Not available

26

Husqvarna 576702006

LEFT SELFSKINNED 907 ARM W/BRK

$136.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, only 3 left!

0

20

Husqvarna 510231302

BOX, BATTERY, BLACK

$182.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$17.99

$

Usually ships in 3-10 days

0

23

Husqvarna 576702003

BACK ASSY FOR EVC 907

$113.99

$

Usually ships in 3-10 days

0
