EZ 4824 CA (966659501-00) - Husqvarna 48" Zero-Turn Mower, CARB (2010-10) IGNITION SYSTEM Parts Diagram

48" Zero-Turn Mower, CARB

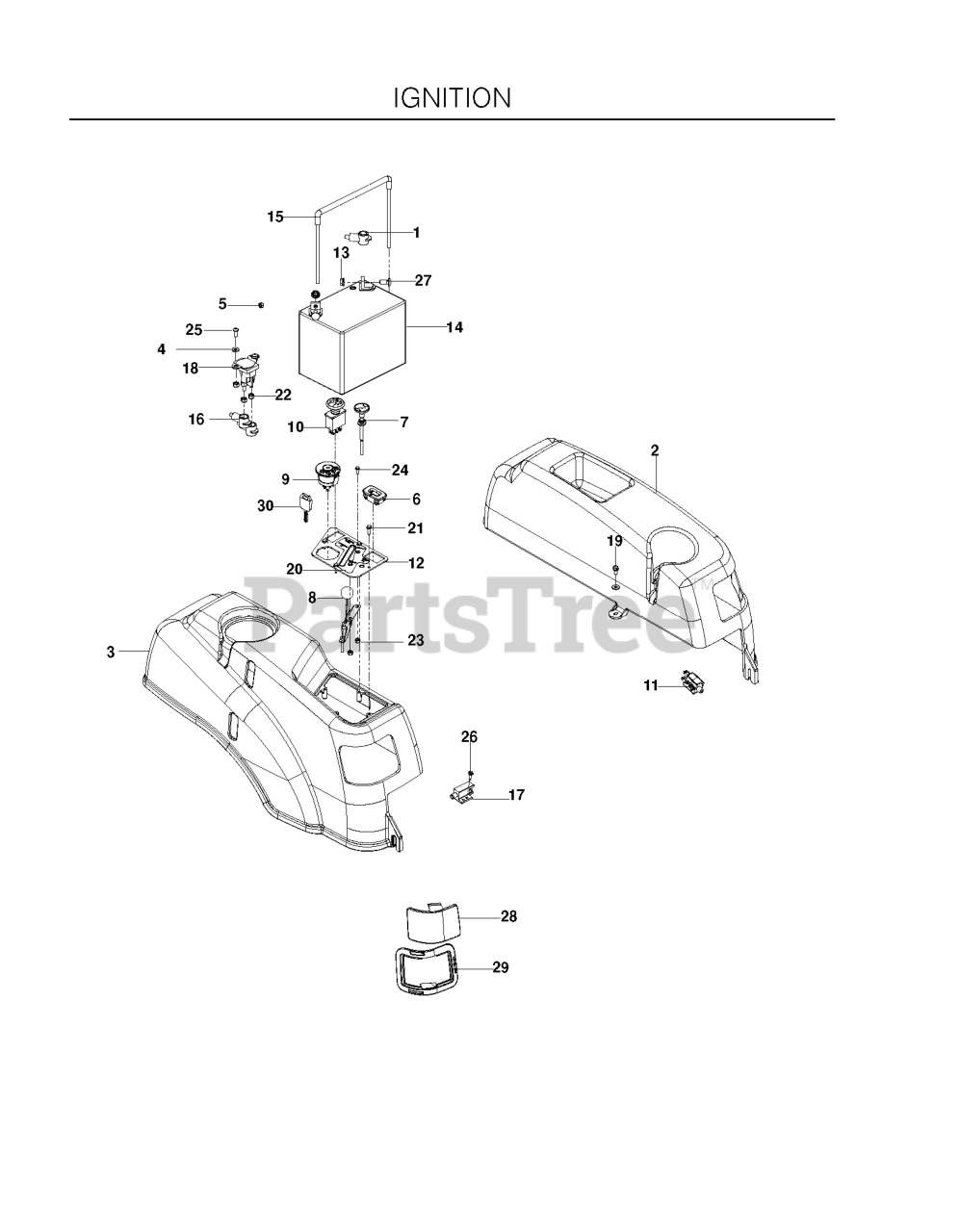

IGNITION SYSTEM Parts Diagram

  • Title

25

Husqvarna 532193705

PIPE
(Superseded to 583211601)

$103.99

$

Usually ships in 3-10 days

0

13

Husqvarna 874760612

BOLT

$4.99

$

In Stock, only 1 left!

0

4

Husqvarna 532169916

HANDLE.BAGGER.W/LVRS.BLK.CRD

$11.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532169484

RETAINER CLIP

$

$

Not available

50

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532123976

NUT T
(Superseded to 873900400)

$4.99

$

In Stock, Qty 16

0

69

Husqvarna 532435611

WASHER
(Superseded to 575180801)

$

$

Not available

8

Husqvarna 532441543

COVER.PNT.BGR.CRD.WSLOTS.MS668

$227.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532199903

LATCH
(Superseded to 583255601)

$30.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532165787

GRIP.HANDLE.BLACK

$6.99

$

In Stock, only 2 left!

0

14

Husqvarna 874520636

BOLT-HEX EAK

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 874981024

SCREW.PAN.HEAD

$9.99

$

In Stock, Qty 9

0

34

Husqvarna 532165570

HANDLE.MULCHER.92.CRD (2 2)

$60.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532165572

PIN

$14.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532126875

RIVET,DRILLED

$6.49

$

In Stock, Qty 20+

0

43

Husqvarna 532174083

PLUG, TUBING END

$7.49

$

In Stock, only 3 left!

0

1

Husqvarna 532428610

TUBE.HANDLE.BAGGER.CRD/SRD.BLA

$15.99

$

Usually ships in 3-10 days

0

54

Husqvarna 872140406

BOLT
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532428236

BRACKET.BAGGER.SD.ELECTRIC.CRD

$11.99

$

Usually ships in 3-10 days

0

46

Husqvarna 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 20+

0

49

Husqvarna 532193305

ROD
(Superseded to 583208201)

$14.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532432755

BRACKET.BAGGER.SD.ELECTRIC.CRD

$9.49

$

Usually ships in 3-10 days

0

17

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 532428683

MULCHING.PLUG.107.CRD.(2 2)

$48.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

53

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

7

Husqvarna 873401000

NUT

$7.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532444848

PLUG PLUG.SUPPORT.BAGGER.CRD
(Superseded to 583576301)

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 874981032

REPL BY 532 75 00-29
(Superseded to 532750029)

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532416257

SEAL.BAGGER.CRD

$36.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532165719

BRACKET.SUPPORT.UPPER.BAG.CRD

$11.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532165783

TUBE.PIVOT.BAG.CRD.BLACK

$26.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532406180

BAGGER.ASM.CRD.2007

$157.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532435603

RIVET RIVET POP
(Superseded to 583506001)

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 872140418

Bolt Carriage 1/4-20 x 2.25d x Gr.5

$

$

Not available

19

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

$

$

Not available

38

Husqvarna 872010520

BOLT.5/16-18X2.5

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532181282

TUBE
(Superseded to 583110201)

$

$

Not available

36

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 532188847

BRKT.PIVOT.RH.CRD

$9.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532188848

BRKT PIVOT
(Superseded to 583173701)

$9.49

$

Usually ships in 3-10 days

0

47

Husqvarna 532193704

PIPE
(Superseded to 583211501)

$363.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539131209

BATTERY TIE DOWN ASSEMBLY

$31.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539112735

CONSOLE.PLATE.BLACK

$27.99

$

In Stock, only 1 left!

0

Husqvarna 580798101

WIRING HARNESS

Note: NOT SHOWN

$145.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539113792

SWITCH, BRAKE 3P

$17.99

$

In Stock, Qty 12

0

18

Husqvarna 539101714

SOLENOID

$26.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

6

Husqvarna 576179401

HOUR METER

$34.99

$

In Stock, Qty 6

0

29

Husqvarna 539110455

LEFT HEADLIGHT RIM GREY

$6.49

$

In Stock, only 1 left!

0

8

Husqvarna 539112734

THROTTLE CABLE

$34.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

Husqvarna 539110451

RT HEADLIGHT RIM GREY

$6.49

$

In Stock, only 1 left!

0

19

Husqvarna 539108461

BOLT 1/4-20 X 1/2 HWST

$4.99

$

In Stock, Qty 6

0

3

Husqvarna 576370401

FENDER, RT, GRAY

$62.99

$

In Stock, only 1 left!

0

28

Husqvarna 539110056

LENS, COLORED LEFT
(Superseded to 539110457)

$7.49

$

In Stock, only 2 left!

0

2

Husqvarna 539130374

FENDER, LT

$93.99

$

In Stock, only 1 left!

0

26

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539110673

SCR #10-12X3/4 HEX WAS HD ZD

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 576916702

DECAL, CTRL PANEL, HUSQ

$

$

Not available

Husqvarna 539110057

LENS, COLORED RIGHT
(Superseded to 539110453)

$7.49

$

In Stock, only 1 left!

0

30

Husqvarna 539107544

KEY
(Superseded to 532140401)

$6.99

$

In Stock, Qty 8

0

Husqvarna 539110068

BATTERY CABLE, NEGATIVE

Note: NOT SHOWN

$9.49

$

Usually ships in 3-10 days

0

5

Husqvarna 539108120

JAM NUT 1/4C (2 2 PW01)
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

22

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

21

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 539103306

CABLE POSITIVE, LONG
(Superseded to 586108201)

Note: NOT SHOWN

$10.99

$

In Stock, only 2 left!

0

7

Husqvarna 539112439

CHOKE CABLE

$34.99

$

In Stock, only 1 left!

0

27

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

25

Husqvarna 539111229

SCR 1/4-20 X 5/8 BTN SKT HD ZD

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539116400

TERMINAL COVER-SM

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

14

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

10

Husqvarna 539101768

RP.SWITCH, BLADE
(Superseded to 582107601)

$28.99

$

In Stock, only 4 left!

0

9

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, Qty 7

0
