EZ 4824 C (968999754) - Husqvarna 48" Zero-Turn Mower (2008-08) Parking Brake Parts Diagram

48" Zero-Turn Mower

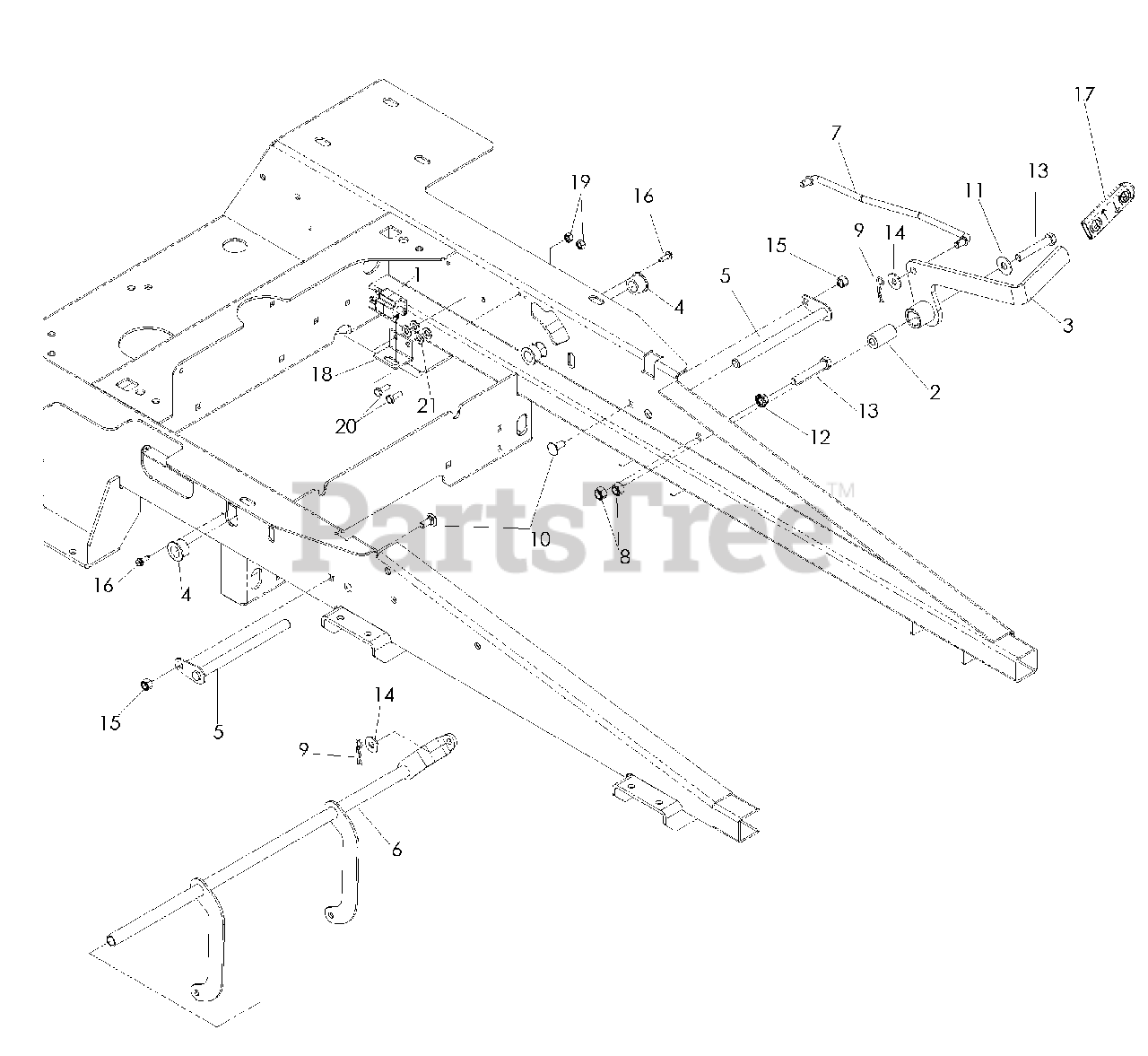

Parking Brake Parts Diagram

  • Title

1

Husqvarna 539113792

SWITCH, INTERLOCK

$17.99

$

In Stock, Qty 12

0

2

Husqvarna 539101836

BUSHING

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539109363

BRAKE LEVER

$46.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539109368

BUSHING, PLASTIC

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539112306

PIVOT SHAFT

$24.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539112313

BRAKE SHAFT

$122.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539112314

LINKAGE

$9.49

$

Usually ships in 3-10 days

0

8

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 539976988

PIN, HAIR .073 x 17/16

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990316

RHSNB 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539990517

WASHER 3/8

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539990613

NUT 3/8-16 WHIZLK

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990629

HCS 3/8-16 x 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539990692

WASHER 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539991034

SCREW #10-24 x 5/8 WSH HD

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539109798

GRIP, PARK BRAKE

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539114803

BRACKET, BRAKE SWITCH

$34.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

20

Husqvarna 539990580

HCS 1/4-20 x 3/4

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990188

WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0
