EZ 4824 BI (968999513) - Husqvarna 48" Zero-Turn Mower (2006-06) Main Frame (Part 1) Parts Diagram

48" Zero-Turn Mower

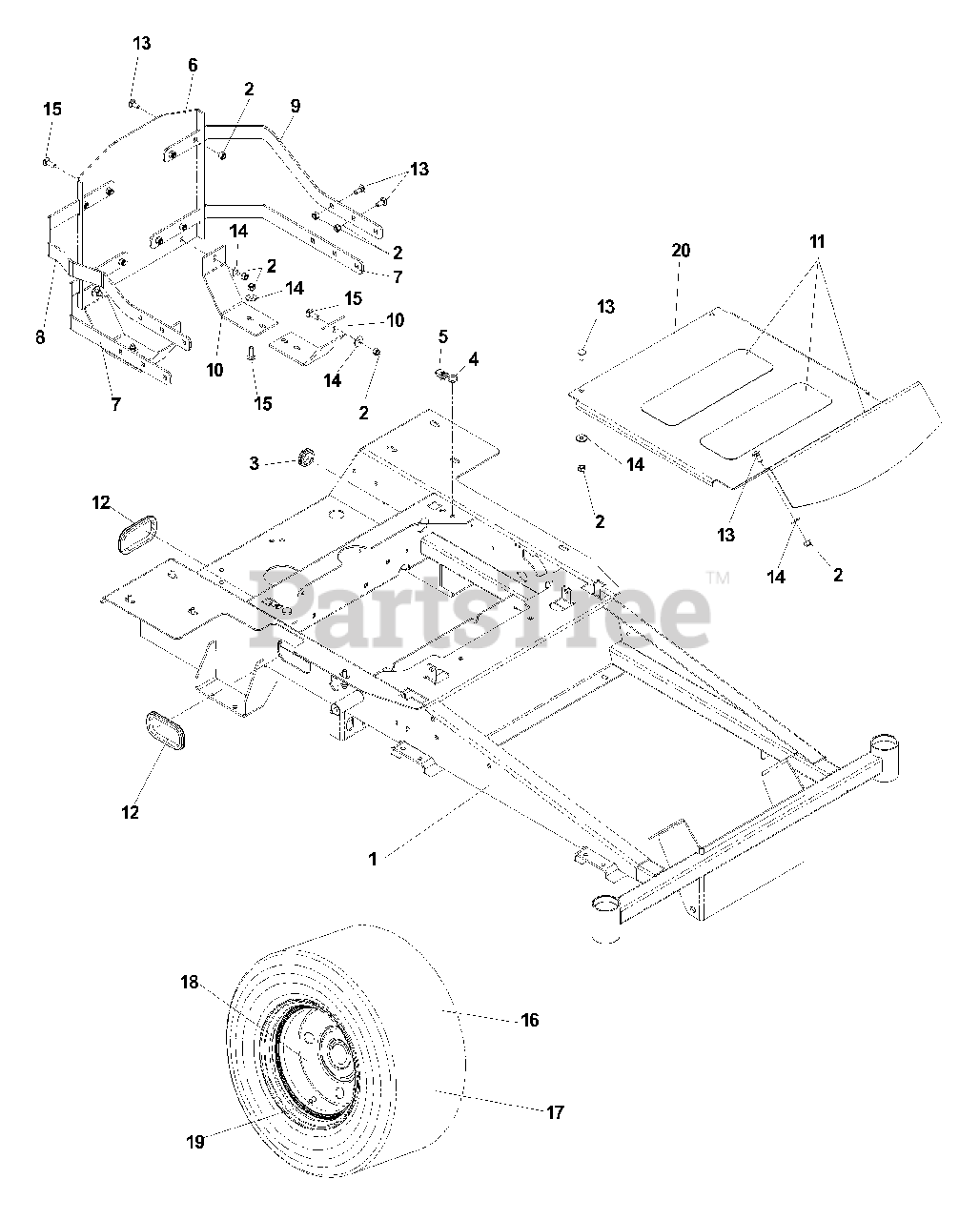

Main Frame (Part 1) Parts Diagram

  • Title
1

Husqvarna 539112798

MAIN FRAME W/DECALS

$944.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539114050

MAIN FRAME W/DECALS,

Note: MODEL 968999505 ONLY

$

$

Not available

2

Husqvarna 539990717

NUT, 5/16-18, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

4

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

5

Husqvarna 539104763

NUT, 5/16-18, RETAINER-U TYPE

$6.49

$

In Stock, Qty 9

0

6

Husqvarna 539106959

ENGINE GUARD

$48.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539112780

LOWER GUARD

$46.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539112781

UPPER RIGHT HAND GUARD

$72.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539112782

UPPER LEFT HAND GUARD

$34.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539112783

SKID PLATE

$18.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539977778

PAD, ABRASIVE

$6.49

$

Usually ships in 3-10 days

0

12

$

$

Not available

13

Husqvarna 539990316

RHSNB, 5/16-18 X 3/4, GR5
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539990208

RHSNB, 5/16-18 X 1, GR5

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539112215

TIRE & RIM

$194.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539112212

TIRE & RIM
(Superseded to 581197601)

Note: MODEL 968999291 ONLY

$

$

Not available

$145.99

$

In Stock, only 1 left!

0

17

Husqvarna 539112213

TIRE

Note: MODEL 968999291 ONLY

$133.99

$

Usually ships in 3-10 days

0

$96.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539112214

RIM

Note: MODEL 968999291 ONLY

$78.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539912234

VALVE STEM

$6.49

$

In Stock, Qty 20+

0

20

$132.99

$

Usually ships in 3-10 days

0
