EZ 4824 BI (968999513) - Husqvarna 48" Zero-Turn Mower (2006-06) Control Levers Parts Diagram

48" Zero-Turn Mower

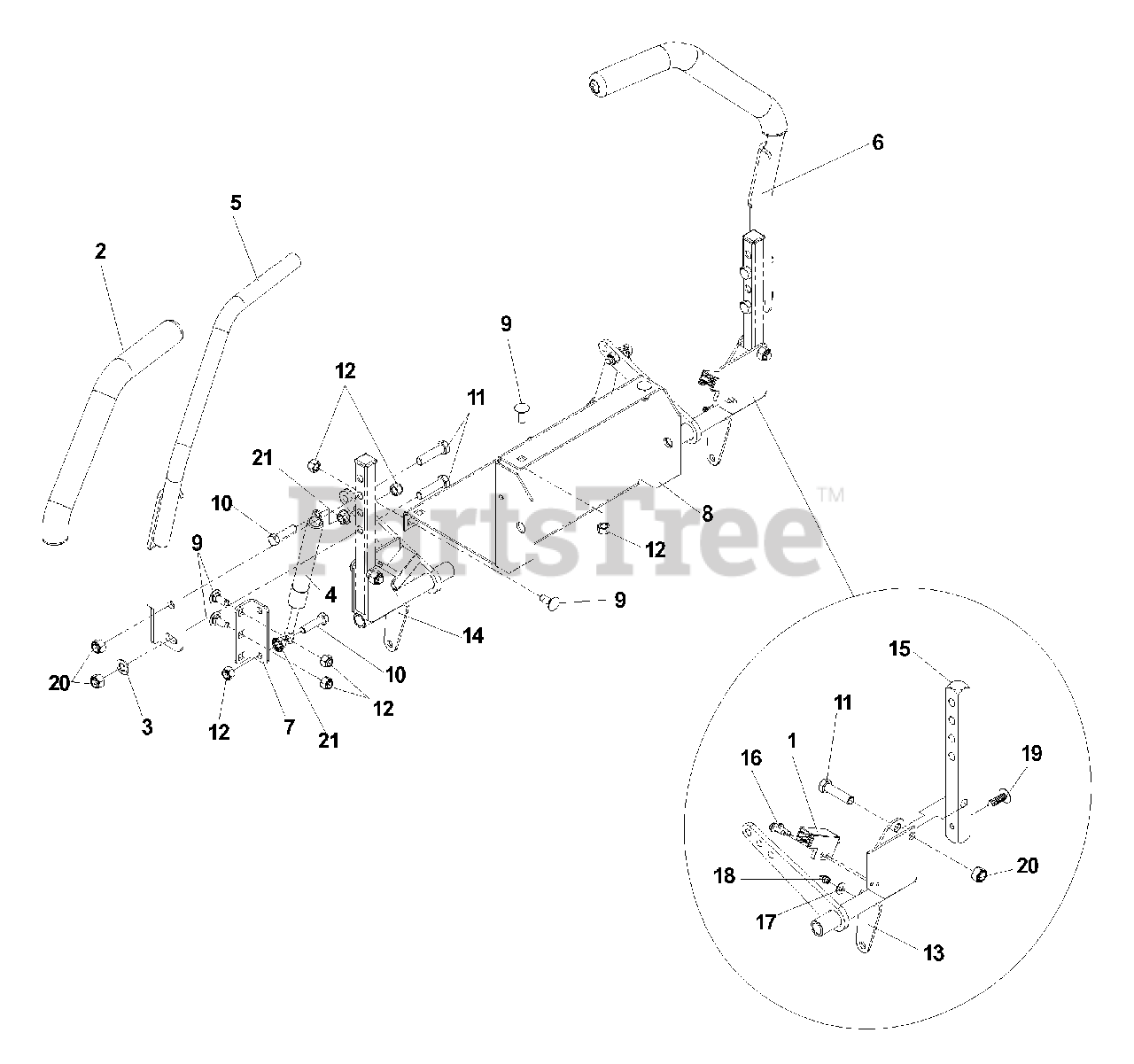

Control Levers Parts Diagram

  • Title

1

Husqvarna 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539102592

CUSHION, DRIVE LEVER

$

$

Not available

3

Husqvarna 539102593

LOCKWASHER, 3/8, SPEC.

$3.99

$

In Stock, only 4 left!

0

4

Husqvarna 539102720

DAMPENER

$66.99

$

In Stock, only 3 left!

0

5

Husqvarna 539110826

DRIVE LEVER, RIGHT

$60.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539110827

DRIVE LEVER, LEFT

$60.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539112300

DAMPENER BRACKET

$40.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539112408

BATTERY TRAY

$33.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539990316

RHSNB, 5/16-18 X 3/4, GR5
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 539990627

HCS, 5/16-18 X 1 1/4, GR5

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 539990655

HCS, 3/8-16 X 1 1/2, GR5

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 539990717

NUT, 5/16-18, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 539112096

CONTROL WELDMENT, LEFT

$728.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539112095

CONTROL WELEMENT, RIGHT

Note: (NOT SHOWN)

$607.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539112088

CONTROL ARM

$

$

Not available

16

Husqvarna 539991034

SCREW, 10-24 X 5/8, WASHER HD

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539103547

WASHER

$0.99

$

In Stock, only 2 left!

0

18

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

19

Husqvarna 539113107

RIVET, NYLON PUSH-IN

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539976979

NUT, 3/8-16, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539990585

NUT, 5/16-18, WHIZLK

$3.99

$

Usually ships in 3-10 days

0
