EZ 4824 BF (966582401) - Husqvarna 48" Zero-Turn Mower (2010-03) Steering Parts Diagram

48" Zero-Turn Mower

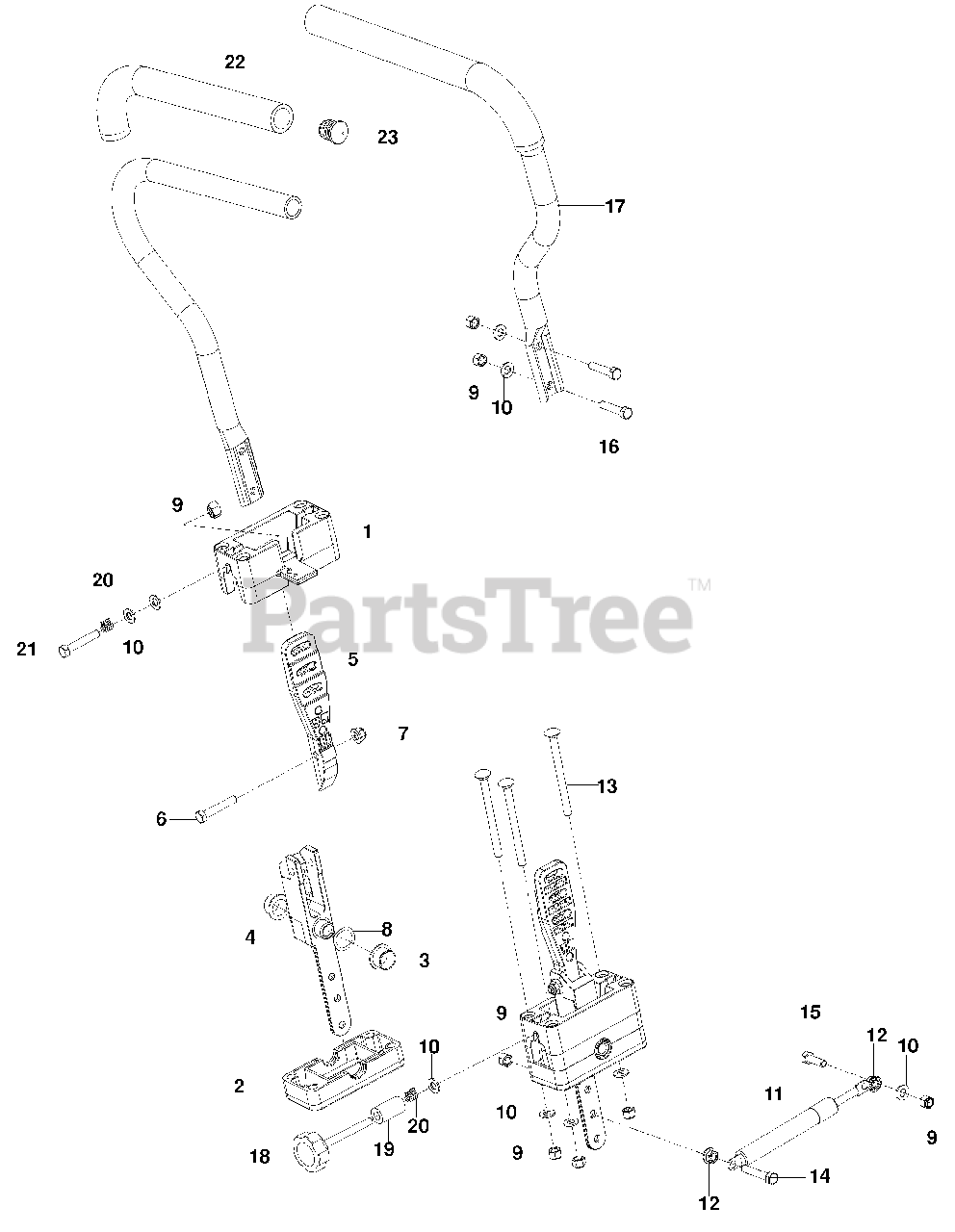

Steering Parts Diagram

  • Title

1

Husqvarna 539131517

Block, Upper

$30.99

$

In Stock, only 1 left!

0

2

Husqvarna 539131519

Block, Lower

$15.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539131518

Bearing, Flange

$11.99

$

In Stock, Qty 7

0

4

Husqvarna 522452901

Pivot Section, Drive

$31.99

$

In Stock, Qty 13

0

5

Husqvarna 539131521

Mount, Drive Control
(Superseded to 576452801)

$40.99

$

In Stock, Qty 7

0

6

Husqvarna 539990669

Hcs 5/16-18 X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

7

Husqvarna 539112899

Nut 5/16-18 Flange Nyloc
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

8

Husqvarna 539133007

Washer, .825 X 1.087 Wave

$4.99

$

In Stock, only 3 left!

0

9

Husqvarna 539990717

Nut 5/16-18 Hex Nyloc
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 539990188

Washer 5/16 Sae Flat
(Superseded to 819111116)

$3.99

$

In Stock, Qty 18

0

11

Husqvarna 539102720

Dampener

$66.99

$

In Stock, only 4 left!

0

12

Husqvarna 539990585

Nut 5/16-18 Hex Whizlk

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 510422601

Rhsnb 5/16-18 X 4

$3.99

$

In Stock, only 1 left!

0

14

Husqvarna 539108394

Hcs 5/16-18 X 1 3/4 Tpblt

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990209

Hcs 5/16-18 X 1

$1.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539976935

Hcs 5/16-18 X 1 1/2

$

$

Not available

17

Husqvarna 539132011

Lever, W/Grip

$

$

Not available

18

Husqvarna 521982601

Knob

$6.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539103543

Spacer

$7.49

$

In Stock, only 2 left!

0

20

Husqvarna 539102845

Spring

$4.99

$

In Stock, only 2 left!

0

21

Husqvarna 539108395

Hcs 5/16-18 X 2 Tpblt

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539122635

Grip, Foam
(Superseded to 539130894)

$9.99

$

In Stock, only 3 left!

0

23

Husqvarna 539122636

Plug, End

$6.49

$

In Stock, only 2 left!

0
