EZ 4824 BF (966582401) - Husqvarna 48" Zero-Turn Mower (2010-03) Seat Parts Diagram

48" Zero-Turn Mower

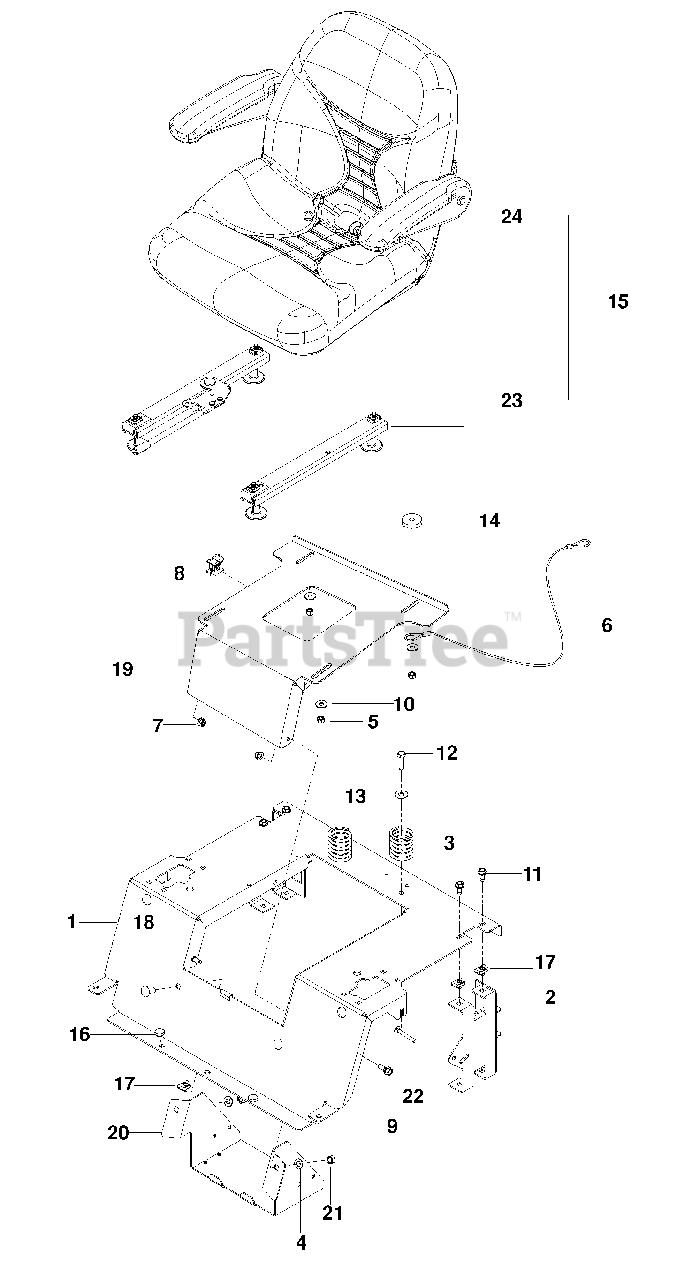

Seat Parts Diagram

  • Title
1

Husqvarna 522744501

Support, Seat Org

$

$

Not available

2

Husqvarna 539112170

Support, Rear Seat Blk

$79.99

$

In Stock, Qty 20+

0

3

Husqvarna 539107520

Spring, Seat
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

4

Husqvarna 532173434

Washer 3/8 Sae Flat

$18.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539107590

Nut 5/16-18 Hex Nyloc
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

6

Husqvarna 539107630

Lanyard, Seat
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 539110732

Nut 5/16-18 Flange Nyloc

$53.99

$

In Stock, only 3 left!

0

8

Husqvarna 539113411

Switch, Seat

$78.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539113413

Bolt 5/16-18 Hex Hd Shldr

$78.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539104763

Washer 5/16 Std Flat

$6.49

$

In Stock, Qty 12

0

11

Husqvarna 539990692

Bolt 5/16-18 X 3/4 Thd Frm
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 539990187

Hcs 3/8-16 X 1 1/4
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

13

Husqvarna 539990209

Washer 3/8 Flat Std

$1.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539112198

Washer, Nylon

$121.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539132728

Seat
(Superseded to 589766102)

$31.99

$

In Stock, only 1 left!

0

16

Husqvarna 539112169

Grommet, Bumper

$

$

Not available

17

Husqvarna 539103303

Retainer, U Type
(Superseded to 539106504)

$

$

Not available

18

Husqvarna 539101341

Rhsnb 3/8-16 X 1

$5.99

$

In Stock, Qty 10

0

19

Husqvarna 539990517

Pan, Seat Org

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539976979

Box, Battery
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539103256

Nut 3/8-16 Hex Nyloc

$12.99

$

In Stock, Qty 6

0

22

Husqvarna 532176066

Rhsnb 5/16-18 X 2 1/2

$13.99

$

In Stock, Qty 20+

0

23

Husqvarna 532179127

Seat Rail Assy
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

24

Husqvarna 539990365

Arm Rest Rt
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

25

Husqvarna 539107610

Arm Rest Lt
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0
