EZ 4824 BF (966582401) - Husqvarna 48" Zero-Turn Mower (2010-03) Engine Plate Parts Diagram

48" Zero-Turn Mower

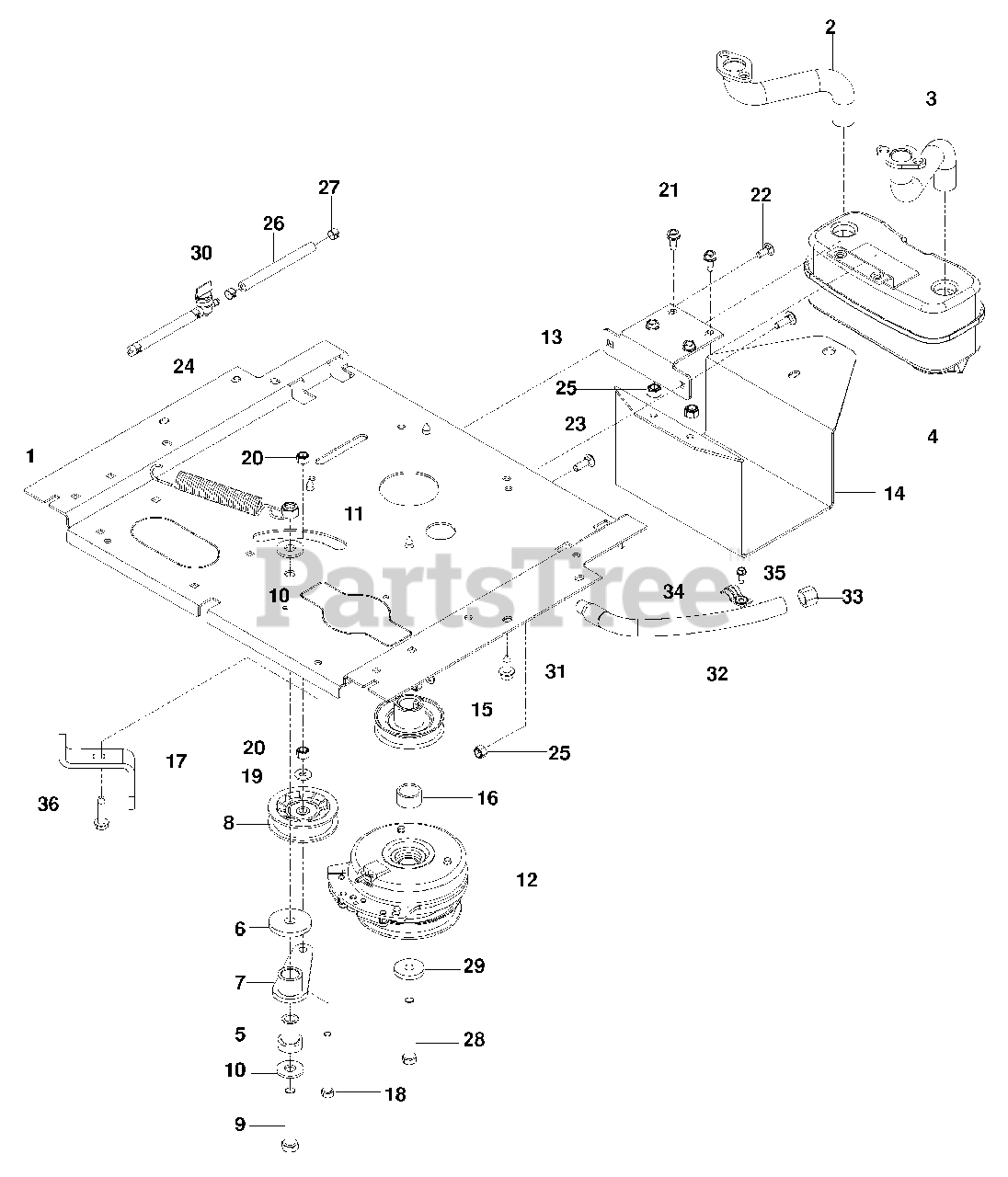

Engine Plate Parts Diagram

  • Title

1

Husqvarna 574734402

Plate, Engine Blk

$

$

Not available

2

Husqvarna 532159955

Exhaust Tube, Rt
(Superseded to 581881101)

$44.99

$

In Stock, only 1 left!

0

3

Husqvarna 532160589

Exhaust Tube, Lt
(Superseded to 581881001)

$27.99

$

In Stock, only 1 left!

0

4

Husqvarna 539131604

Muffler Asm Twin

$45.99

$

In Stock, only 4 left!

0

5

Husqvarna 539101231

Spindle, Idler

$13.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539112670

Washer, Heavy

$4.99

$

In Stock, Qty 10

0

7

Husqvarna 539112092

Arm, Idler
(Superseded to 583593901)

$13.99

$

In Stock, only 3 left!

0

8

Husqvarna 539110311

Pulley, Idler

$17.99

$

In Stock, Qty 20+

0

9

Husqvarna 539103433

Hcs 1/2-13 X 3 1/4

$6.99

$

In Stock, only 4 left!

0

10

Husqvarna 539109554

Washer 1/2 Flat

$

$

Not available

11

Husqvarna 539101331

Nut 1/2 Hex Nyloc
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 505287301

Clutch, 105 Ft/Lbs

$284.99

$

Usually ships in 3-10 days

0

13

Husqvarna 510260402

Bracket, Muffler Blk
(Superseded to 581886702)

$34.99

$

In Stock, only 1 left!

0

14

Husqvarna 510260502

Guard, Muffler Blk

$91.99

$

In Stock, only 1 left!

0

15

Husqvarna 539114530

Pulley, Engine
(Superseded to 587537401)

$26.99

$

In Stock, only 3 left!

0

16

Husqvarna 539112252

Spacer

$

$

Not available

17

Husqvarna 522459702

Stop, Clutch

$

$

Not available

18

Husqvarna 539109389

Hcs 3/8-16 X 3 1/2 Tpblt

$5.99

$

In Stock, only 3 left!

0

19

Husqvarna 539990692

Washer 5/16 Std Flat
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 539976979

Nut 3/8-16 Hex Nyloc
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539107475

Bolt 5/16-18 X 3/4 Thd Frm

$6.49

$

In Stock, only 4 left!

0

22

Husqvarna 539990316

Rhsnb 5/16-18 X 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539990208

Rhsnb 5/16-18 X 1

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532196105

Spring, Deck Drive

$7.99

$

In Stock, Qty 7

0

25

Husqvarna 539112899

Nut 5/16-18 Flange Nyloc
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

26

Husqvarna 539110425

Fuel Line 5"
(Superseded to 587044805)

$3.99

$

In Stock, Qty 6

0

27

Husqvarna 539912222

Clamp, Hose

$4.99

$

In Stock, only 1 left!

0

28

Husqvarna 539976944

Hcs 7/16-20 X 3 1/2
(Superseded to 581332804)

$7.99

$

In Stock, only 2 left!

0

29

Husqvarna 539110064

Washer, Clutch
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

30

Husqvarna 539916325

Valve, Fuel

$47.99

$

In Stock, only 1 left!

0

31

Husqvarna 532120616

Hhfs 3/8-16 X 1 Thd Frm
(Superseded to 817120616)

$5.99

$

In Stock, Qty 17

0

32

Husqvarna 539101362

Hose, Drain

$47.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539101364

Plug, Oil

$7.49

$

Usually ships in 3-10 days

0

34

Husqvarna 539101363

Clamp

$3.99

$

In Stock, only 1 left!

0

35

Husqvarna 539990362

Screw 1/4-20 X 5/8 Slf Tap

$4.99

$

In Stock, Qty 12

0

36

Husqvarna 539110025

Bolt 3/8-16 X 1 1/2 Thd Frm

$4.99

$

Usually ships in 3-10 days

0
