EZ 4824 BF (966582401) - Husqvarna 48" Zero-Turn Mower (2010-03) Brake/Lift Parts Diagram

48" Zero-Turn Mower

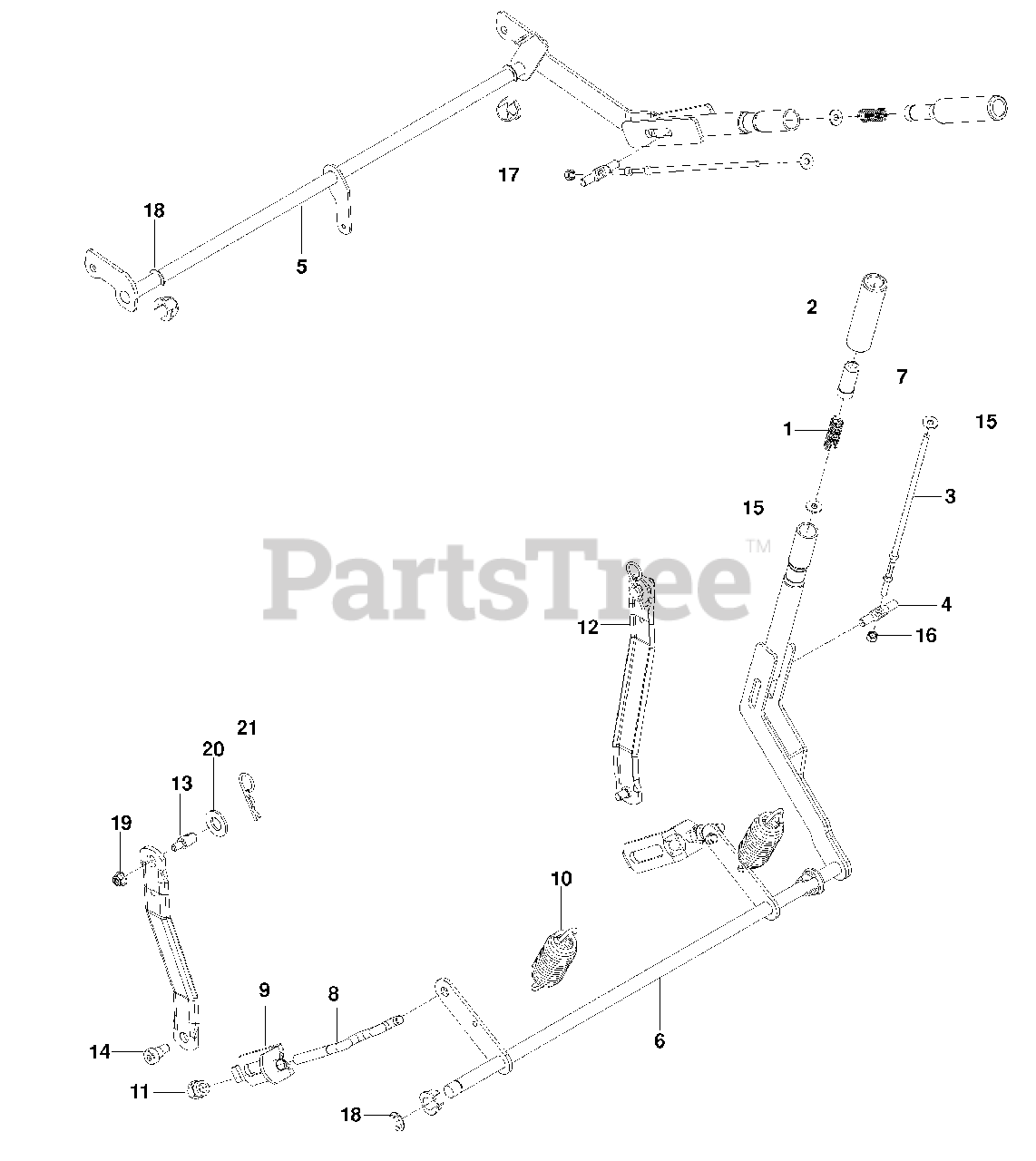

Brake/Lift Parts Diagram

  • Title

1

Husqvarna 510030701

Spring, Compression

$

$

Not available

2

Husqvarna 510207201

Grip, Handle

$6.99

$

In Stock, only 4 left!

0

3

Husqvarna 510422901

Rod, Handle Release

$

$

Not available

4

Husqvarna 516008801

Rod, Latch Release
(Superseded to 583629301)

$6.49

$

In Stock, only 1 left!

0

5

Husqvarna 522710802

Shaft, Brake

$241.99

$

Usually ships in 3-10 days

0

6

Husqvarna 574216602

Shaft, Lift

$

$

Not available

7

Husqvarna 510207301

Button, Push

$5.99

$

In Stock, only 1 left!

0

8

Husqvarna 525847201

Link, Rear Suspension
(Superseded to 587623001)

$12.99

$

In Stock, only 3 left!

0

9

Husqvarna 522858601

Bracket, Centering Lnk
(Superseded to 587623001)

$12.99

$

In Stock, only 3 left!

0

10

Husqvarna 539118762

Spring

$

$

Not available

11

Husqvarna 532175994

Nut, Lift Link
(Superseded to 589464902)

$4.99

$

In Stock, Qty 5

0

12

Husqvarna 532195185

Arm, Suspension Rr
(Superseded to 531169201)

$14.99

$

In Stock, Qty 5

0

13

Husqvarna 532195161

Stud, W/Anti- Rotate

$

$

Not available

14

Husqvarna 539113621

Bolt 3/8-16 X 3/8 Skt Hd
(Superseded to 596241101)

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990598

Washer 1/4 Flat

$

$

Not available

16

Husqvarna 539976978

Nut 1/4-20 Hex Nyloc
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

17

Husqvarna 510184901

Plastic Nut

$6.49

$

In Stock, only 3 left!

0

18

Husqvarna 539105069

E-Ring

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539112899

Nut 5/16-18 Flange Nyloc
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

20

Husqvarna 539976982

Washer 5/8 Sae

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539976989

Hairpin #4

$3.99

$

Usually ships in 3-10 days

0
