EZ 4824 BF (966495801) - Husqvarna 48" Zero-Turn Mower (2009-09) Seat Parts Diagram

48" Zero-Turn Mower

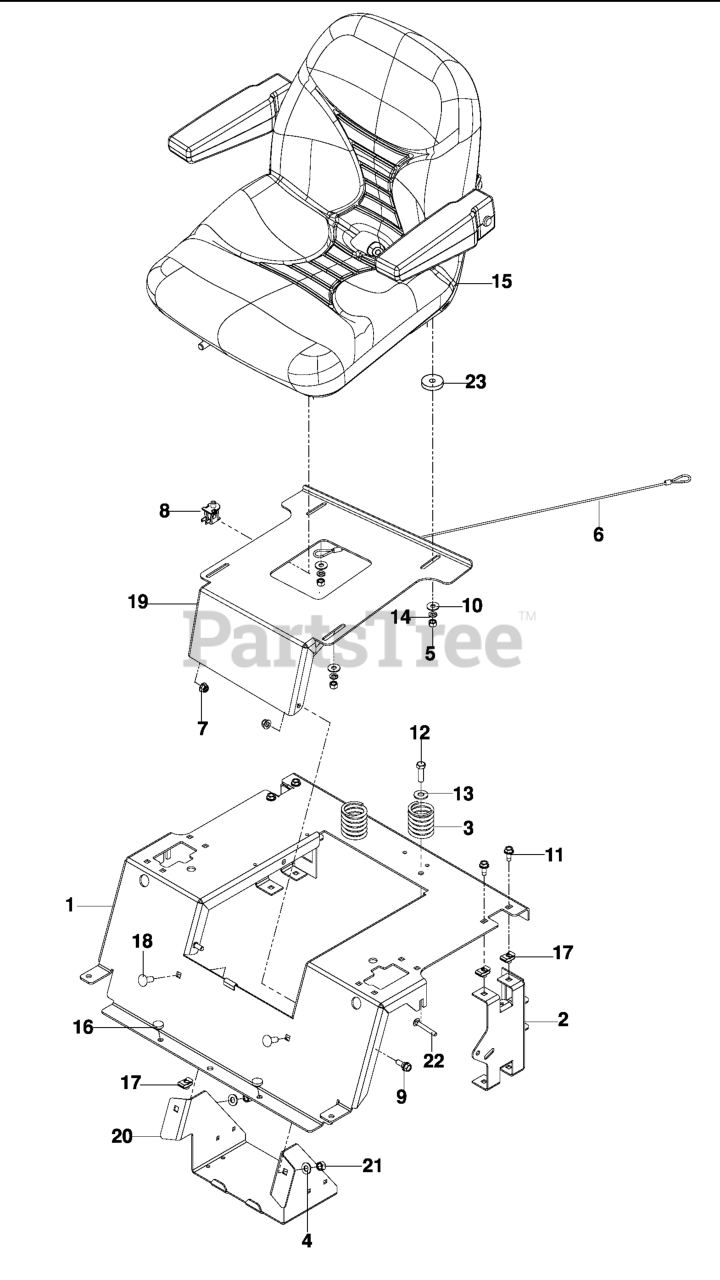

Seat Parts Diagram

  • Title
1

Husqvarna 522545402

SUPPORT, SEAT

$

$

Not available

2

Husqvarna 510182902

SUPPORT, REAR SEAT

$66.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

4

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 539103247

LANYARD, SEAT

$21.99

$

In Stock, only 2 left!

0

7

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

8

Husqvarna 539119741

SWITCH, SEAT
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

9

Husqvarna 539130896

BOLT 5/16-18 HEX HD SHLDR

$17.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990692

WASHER 5/16 STD FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539107475

BOLT 5/16-18 x ¾ THD FRM

$6.49

$

In Stock, only 4 left!

0

12

Husqvarna 539976941

HCS 3/8-16 x 1¼

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 539990517

WASHER 3/8 FLAT STD

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539990187

WASHER 5/16 SLW
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

15

Husqvarna 539130873

SEAT
(Superseded to 501580402)

$797.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

17

Husqvarna 539104763

RETAINER, U TYPE

$6.49

$

In Stock, Qty 12

0

18

Husqvarna 539990645

RHSNB 3/8-16 x 1

$

$

Not available

19

$

$

Not available

20

Husqvarna 510231302

BOX, BATTERY

$182.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 510422701

RHSNB 5/16-18 x 2½

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539115789

WASHER, NYLON

$3.99

$

Usually ships in 3-10 days

0
