EZ 4824 (968999766) - Husqvarna 48" Zero-Turn Mower (2008-08) Chassis / Frame Parts Diagram

48" Zero-Turn Mower

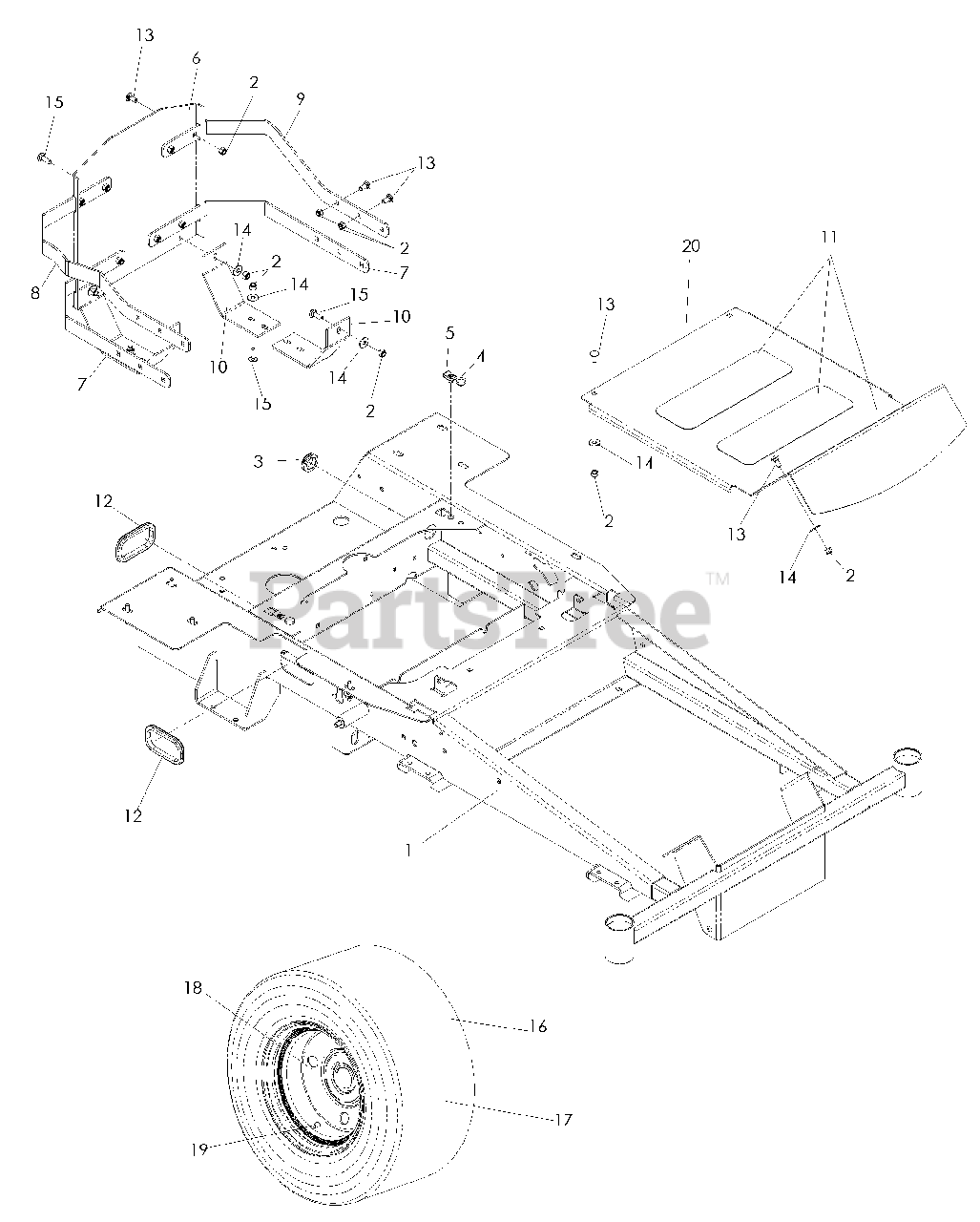

Chassis / Frame Parts Diagram

  • Title
1

Husqvarna 965885601

MAIN FRAME W/DECALS

$

$

Not available

2

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 539105974

RUBBER GROMMET

$

$

Not available

4

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

5

Husqvarna 539104763

NUT 5/16-18 RETAINER

$6.49

$

In Stock, Qty 9

0

6

Husqvarna 539106959

ENGINE GUARD

$48.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539112780

LOWER GUARD

$46.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539112781

UPPER RT HAND GUARD

$72.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539112782

UPPER LT HAND GUARD

$34.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539112783

SKID PLATE

$18.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539977778

PAD, ABRASIVE

$6.49

$

Usually ships in 3-10 days

0

12

$

$

Not available

13

Husqvarna 539990316

RHSNB 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539990692

WASHER 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539990208

RHSNB 5/16-18 x 1

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539130820

TIRE & RIM
(Superseded to 579753401)

Note: before serial # 0749xxxxx

$265.99

$

Usually ships in 3-10 days

0

Husqvarna 539112212

TIRE & RIM
(Superseded to 581197601)

Note: MODEL 968999692 ONLY

$

$

Not available

Husqvarna 539131996

TIRE & RIM

Note: after serial # 0749xxxxx MODELS 968999658, 968999696, 968999699, 968999754, 968999766

$

$

Not available

Husqvarna 539131110

TIRE & RIM

Note: after serial # 0805xxxxx MODEL 968999657 ONLY

$182.99

$

Usually ships in 3-10 days

0

$182.99

$

Usually ships in 3-10 days

0

Husqvarna 539112213

TIRE,

Note: MODEL 968999692 ONLY

$133.99

$

Usually ships in 3-10 days

0

Husqvarna 539131997

TIRE 20 x 10 TURF

Note: after serial # 0749xxxxx MODELS 968999658, 968999696, 968999699, 968999754, 968999766

$157.99

$

Usually ships in 3-10 days

0

Husqvarna 539131109

TIRE 20 x 8 TURF

Note: after serial # 0805xxxxx MODEL 968999657 ONLY

$

$

Not available

18

Husqvarna 539112217

RIM

Note: before serial # 0749xxxxx

$96.99

$

Usually ships in 3-10 days

0

Husqvarna 539112214

RIM

Note: MODEL 968999692 ONLY

$78.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539912234

VALVE STEM

$6.49

$

In Stock, Qty 20+

0

20

$132.99

$

Usually ships in 3-10 days

0
